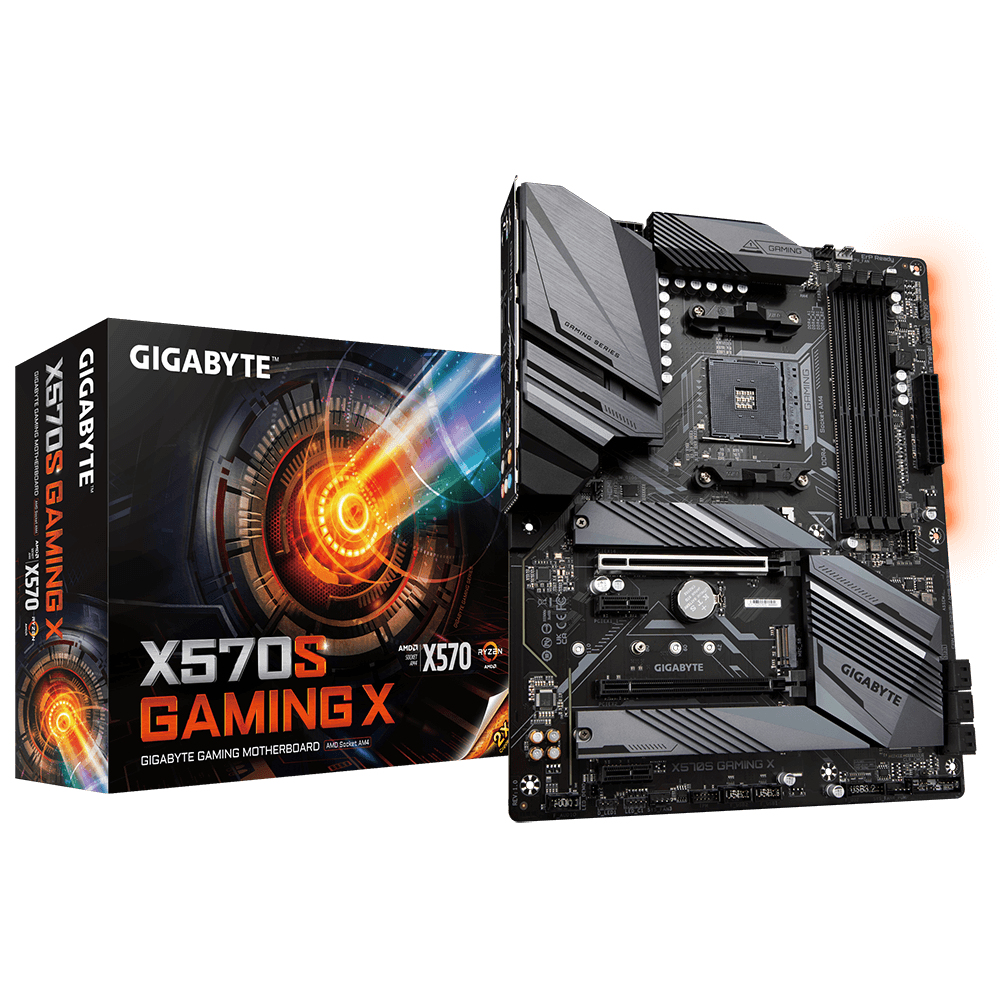

X570S GAMING X (rev. 1.0)
Model X570S GAMING X (rev. 1.0)Part no. GA-X570S-GAMING-XEAN 4719331823689
62 specifications
- Weight1 kg
- Processor manufacturerAMD
- Supported memory typesDDR4-SDRAM
- Supported storage drive typesHDD & SSD
- Maximum resolution4096 x 2160 pixels
- USB 2.0 connectors2
Overview
- Weight
- 1 kg
- Processor manufacturer
- AMD
- Supported memory types
- DDR4-SDRAM
- Supported storage drive types
- HDD & SSD
- Maximum resolution
- 4096 x 2160 pixels
- USB 2.0 connectors
- 2
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- X570S GAMING X (rev. 1.0)
- Part number
- GA-X570S-GAMING-X
- EAN / UPC
- 4719331823689
- Also known as
- GIGABYTE X570S GAMING X (rev. 1.0) AMD X570 Socket AM4 ATX
Specifications
62 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen™ 3, AMD Ryzen™ 5 |
| Supported processor sockets | Socket AM4 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 2133,2400,2667,2933,3200,3400,3466,3600,3733,3866,4000,4133,4266,4400,4600,4800,5100 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
Graphics
| Specification | Value |
|---|---|
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 6 |
| Total number of SATA connectors | 6 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| 12V power connector | Yes |
| TPM connector | Yes |
| RGB LED pin header | Yes |

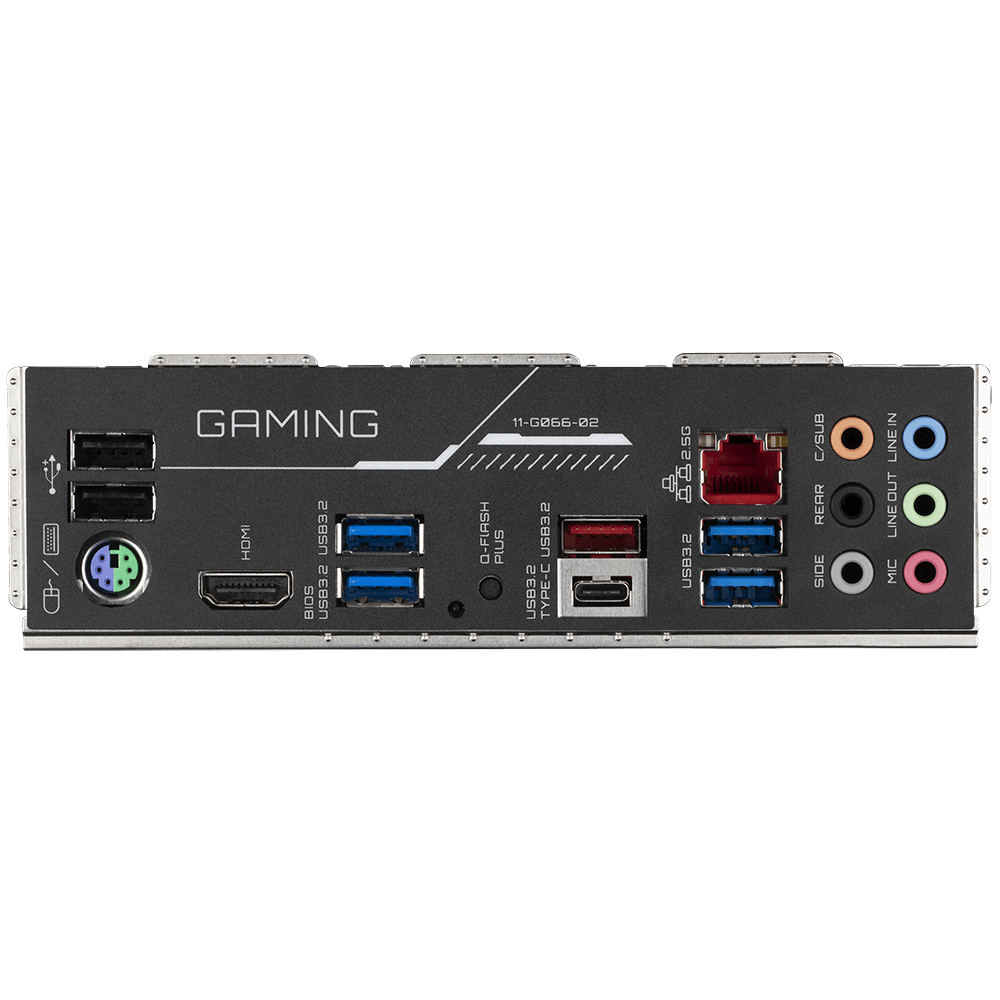

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| USB connector type | USB Type-A, USB Type-C |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X570 |
| Audio output channels | 7.1 channels |
| PC health monitoring | Fan, Temperature, Voltage |
| Cooling type | Active |
| Windows operating systems supported | Windows 10 x64 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 2 |
| Number of M.2 (M) slots | 3 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 80 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Norton® Internet Security (OEM version) Realtek® 8125 Gaming LAN Bandwidth Control Utility |
Other features
| Specification | Value |
|---|---|
| Weight | 1 kg |
