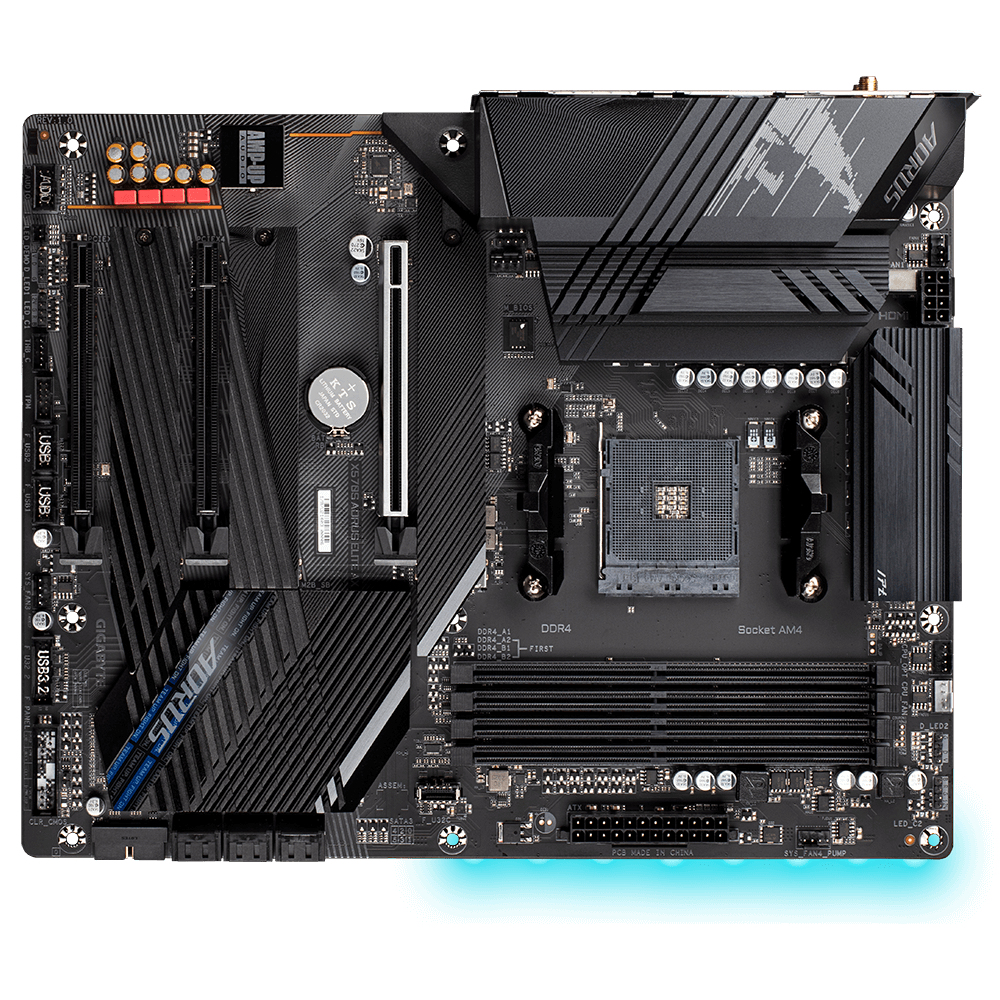

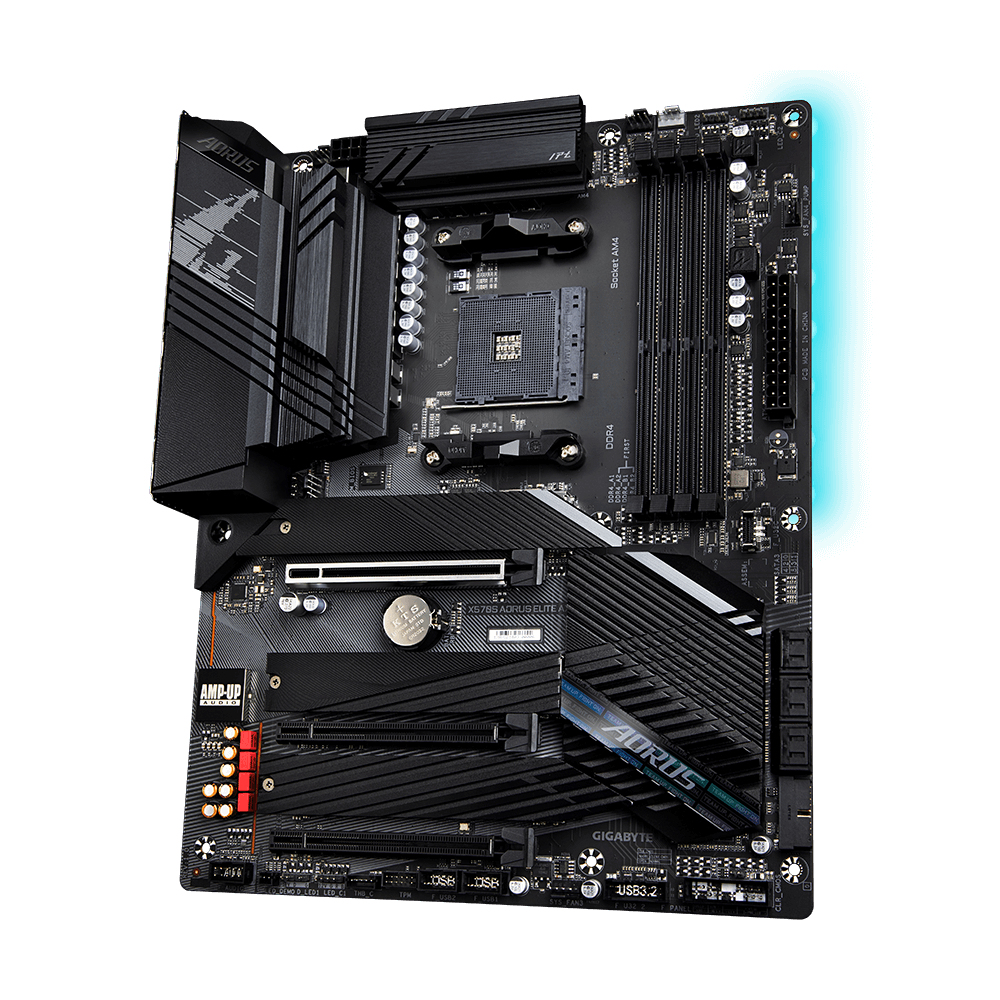

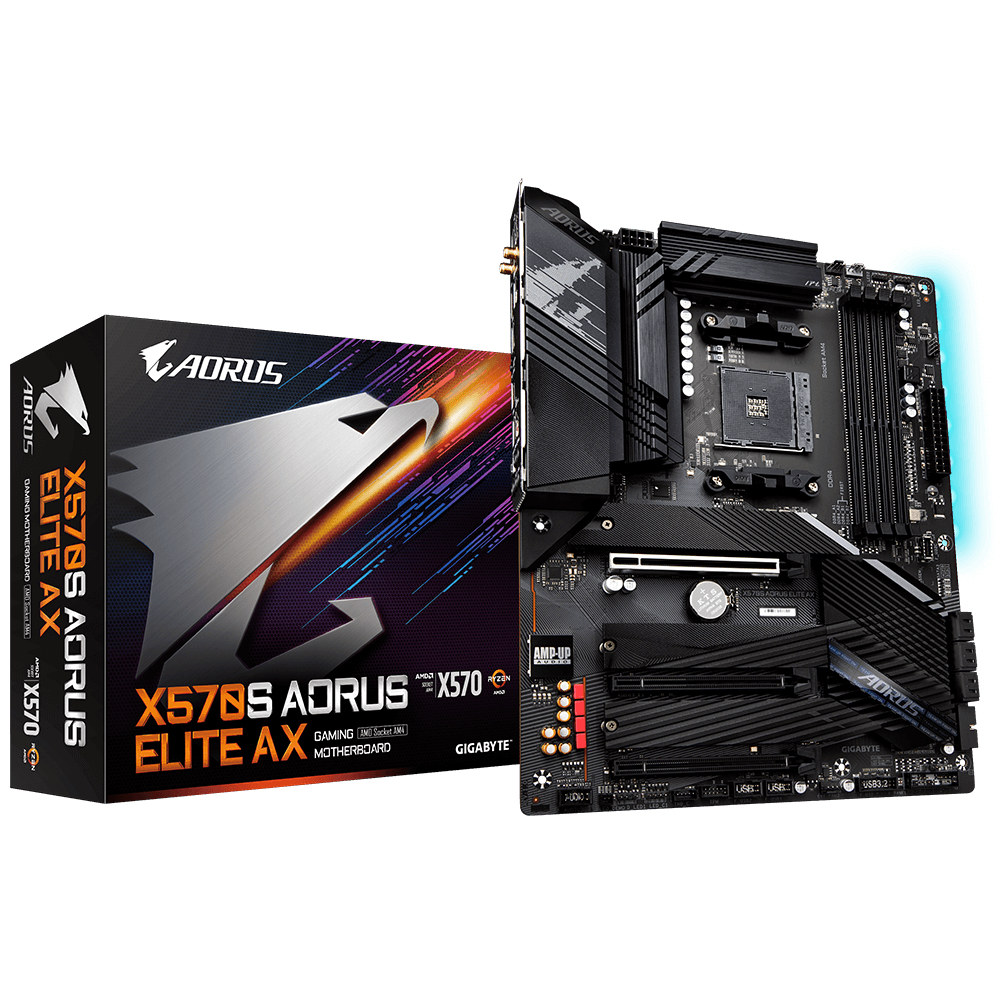

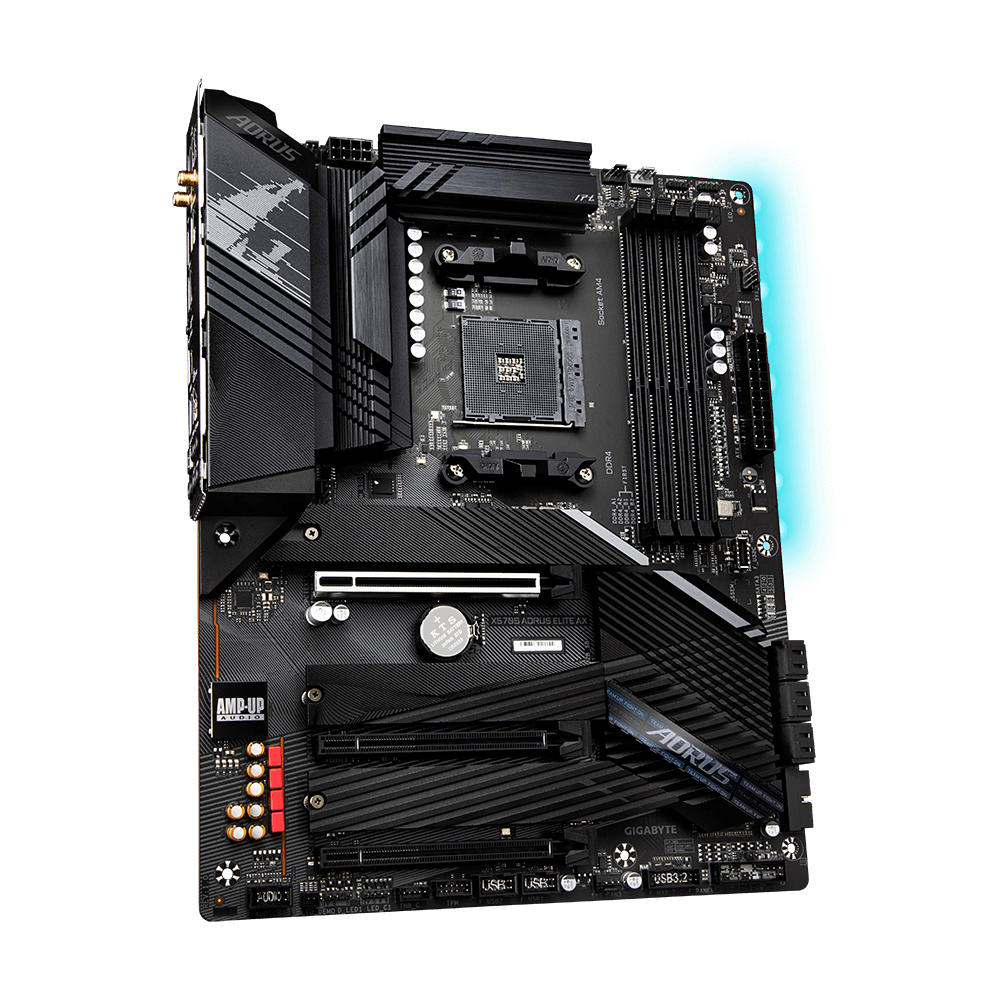

GIGABYTE X570S AORUS ELITE AX
GIGABYTE

X570S AORUS ELITE AX

Model X570S AORUS ELITE AXEAN 889523028827

80 specifications
  • SpeedWi-Fi 6 (802.11ax)
  • Weight1 kg
  • Processor manufacturerAMD
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive typesHDD & SSD
  • Maximum resolution4096 x 2160 pixels
See all specifications

Overview

Speed
Wi-Fi 6 (802.11ax)
Weight
1 kg
Processor manufacturer
AMD
Supported memory types
DDR4-SDRAM
Supported storage drive types
HDD & SSD
Maximum resolution
4096 x 2160 pixels
Brand
GIGABYTE
Category
Motherboard
Model
X570S AORUS ELITE AX
Part number
X570S AORUS ELITE AX
EAN / UPC
889523028827, 4719331823528
Also known as
GIGABYTE X570S AORUS ELITE AX motherboard AMD X570 Socket AM4 ATX

Specifications

80 specifications in 14 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM4
Compatible processor seriesAMD Ryzen 3000 Series, AMD Ryzen 5000 Series
Supported processor socketsSocket AM4

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds2133,2400,2667,2933,3200,3300,3333,3400,3466,3600,3733,3800,3866,4000,4133,4266,4300,4400,4600,4866,5000,5100,5200,5400 MHz
Maximum internal memory128 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, PCI Express 3.0, PCI Express 4.0, SATA III
Number of storage drives supported9
RAID supportYes
RAID levels0, 1, 10

Graphics

Parallel processing technology support2-Way CrossFireX, Quad-GPU CrossFireX
Maximum resolution4096 x 2160 pixels
HDCPYes

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of SATA III connectors6
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors3
EPS power connector (8-pin)Yes
12V power connectorYes
TPM connectorYes
Thunderbolt headers1
RGB LED pin headerYes

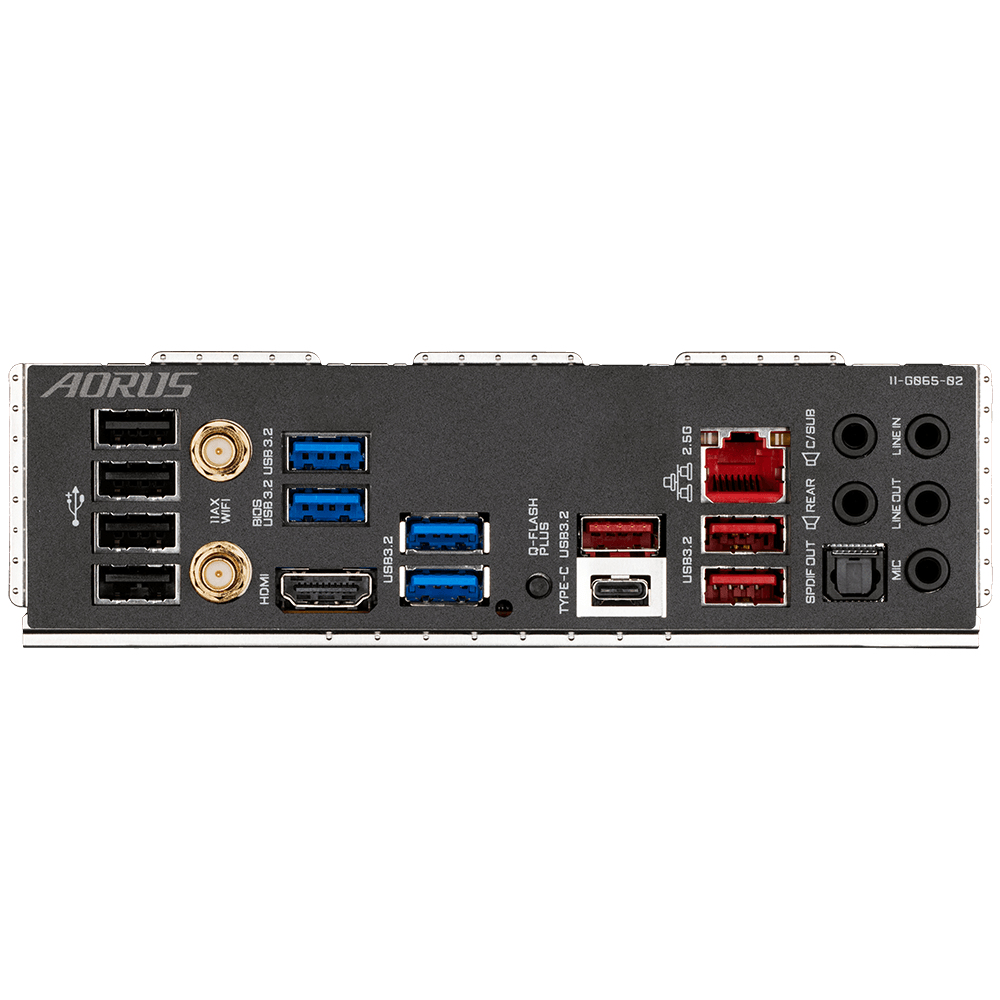

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
USB 3.2 Gen 2x2 Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity0
Headphone outputs1
Microphone inYes
S/PDIF out portYes
WiFi-AP antenna jack2
USB connector typeUSB Type-A, USB Type-C

Network

Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
Wi-FiYes
Top Wi-Fi standardWi-Fi 6 (802.11ax)
WLAN controller modelIntel Wi-Fi 6 AX200
BluetoothYes
Bluetooth version5.2

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyAMD
Motherboard chipsetAMD X570
Audio chipRealtek ALC1220-VB
Audio output channels7.1 channels
PC health monitoringFan, Temperature, Voltage
Windows operating systems supportedWindows 10 x64

Expansion slots

PCI Express x16 slots3
Number of M.2 (M) slots3

BIOS

BIOS typeUEFI AMI
BIOS memory size256 Mbit
ACPI version5.0
Clear CMOS jumperYes
Desktop Management Interface (DMI) version2.7
System Management BIOS (SMBIOS) version2.7

Logistics data

Harmonized System (HS) code84733020

Weight & dimensions

Width305 mm
Depth244 mm
Height80 mm

Packaging content

Cables includedSATA
Drivers includedYes
Bundled softwareNorton® Internet Security (OEM version), Realtek® 8125 Gaming LAN Bandwidth Control Utility

Other features

Weight1 kg
