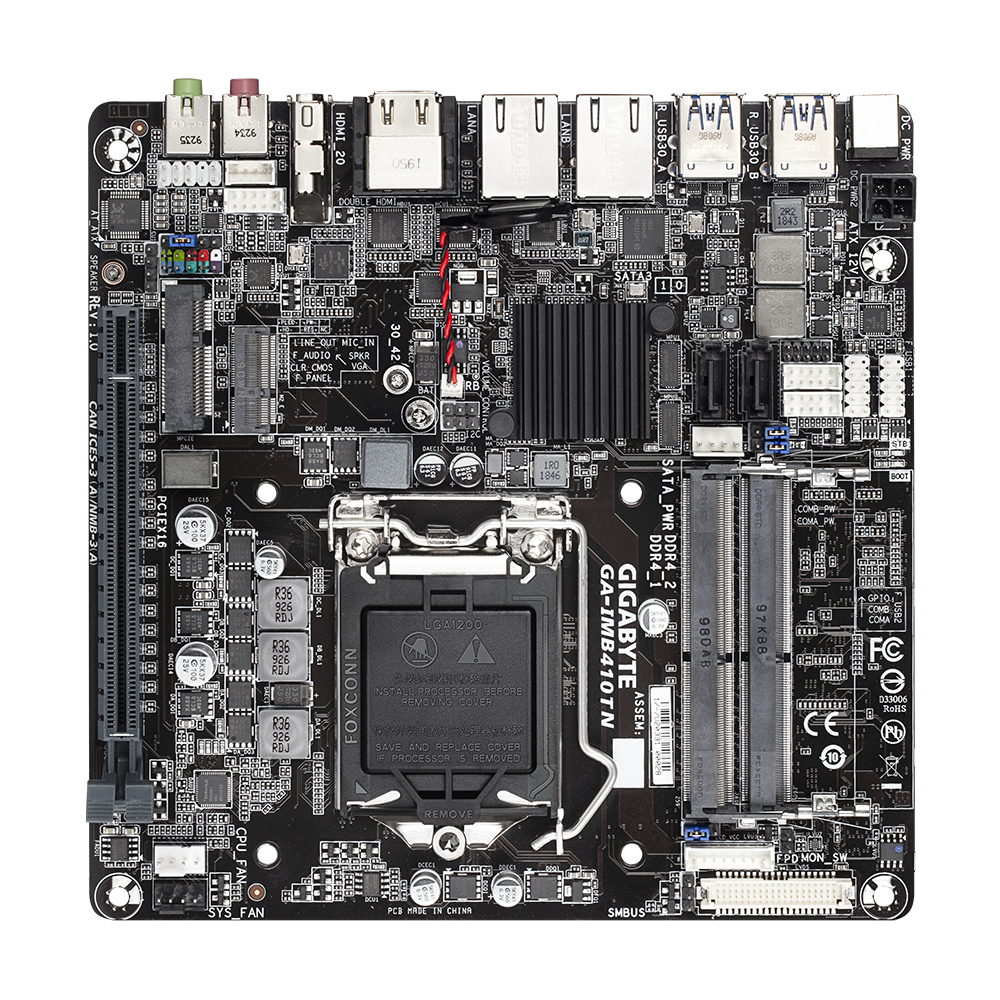

GA-IMB410TN (rev. 1.0)
Model GA-IMB410TN (rev. 1.0)Part no. GA-IMB410TNEAN 4719331809836
56 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesM.2, SATA III
- Number of displays supported2
- USB 2.0 ports quantity0
- Ethernet LANYes
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- M.2, SATA III
- Number of displays supported
- 2
- USB 2.0 ports quantity
- 0
- Ethernet LAN
- Yes
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-IMB410TN (rev. 1.0)
- Part number
- GA-IMB410TN
- EAN / UPC
- 4719331809836
- Also known as
- GIGABYTE GA-IMB410TN (rev. 1.0) Intel H410 LGA 1200 (Socket H5) mini ITX
Specifications
56 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1200 (Socket H5) |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | SO-DIMM |
| Supported memory clock speeds | 2666,2933 MHz |
| Maximum internal memory | 32 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | M.2, SATA III |
Graphics
| Specification | Value |
|---|---|
| Number of displays supported | 2 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 2 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Serial port headers | 4 |

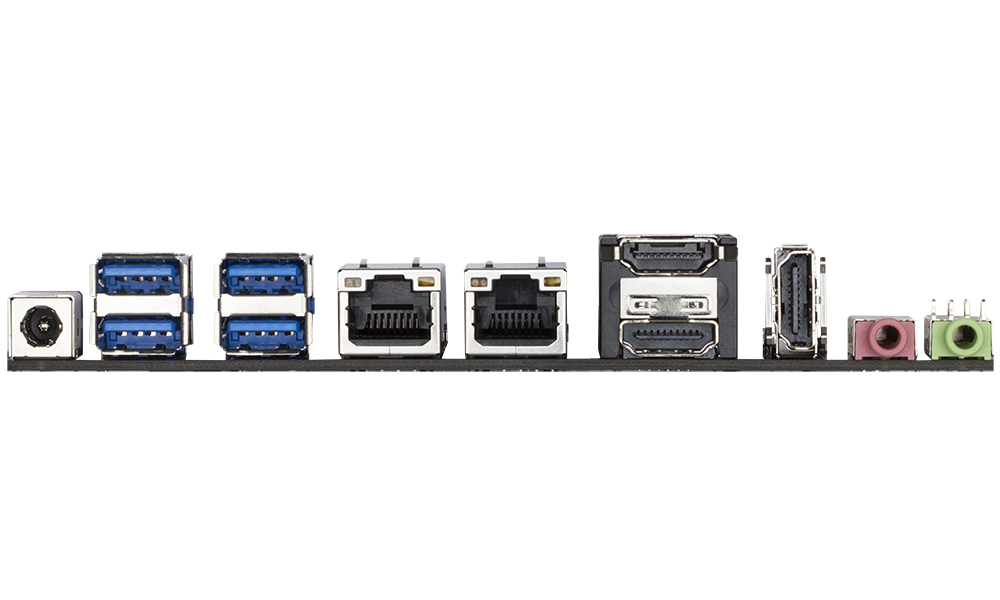

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 3 |
| HDMI version | 1.4a/2.0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| USB connector type | USB Type-A |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H410 |
| Audio chip | Realtek ALC887 |
| Audio output channels | 5.1 channels |
| PC health monitoring | Fan, Temperature, Voltage |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 3.x) slots | 1 |
| Mini PCI Express slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | 0 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |
