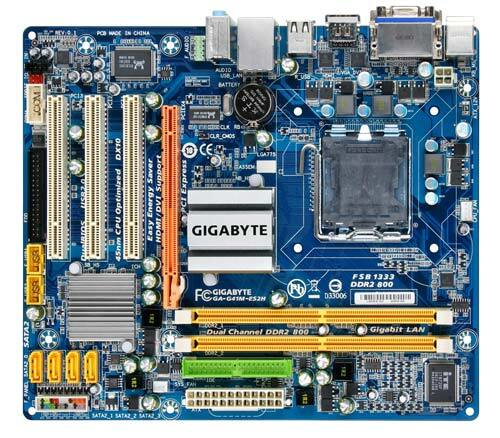

GA-G41M-ES2H (rev. 1.0)
Model GA-G41M-ES2H (rev. 1.0)Part no. G41M-ES2H
50 specifications
- Processor manufacturerIntel
- Supported memory typesDDR2-SDRAM
- Supported storage drive interfacesSATA II
- DirectX version10
- USB 2.0 connectors2
- USB 2.0 ports quantity4
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR2-SDRAM
- Supported storage drive interfaces
- SATA II
- DirectX version
- 10
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 4
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-G41M-ES2H (rev. 1.0)
- Part number
- G41M-ES2H
- Also known as
- GIGABYTE GA-G41M-ES2H (rev. 1.0) Intel® G41 LGA 775 (Socket T) micro ATX
Specifications
50 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Compatible processor series | Intel® Celeron®, Intel® Core™2 Duo, Intel® Core™2 Quad, Intel® Pentium® |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR2-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 800,1066,1333 MHz |
| Supported memory clock speed (max) | 1066 MHz |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II |
Graphics
| Specification | Value |
|---|---|
| DirectX version | 10 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA II connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| 12V power connector | Yes |
| Serial port headers | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8110SC |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® G41 |
| Audio chip | RealTek ALC888B |
| Audio output channels | 7.1 channels |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 1 |
| PCI slots | 3 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AWARD |
| BIOS memory size | 16 Mbit |
| ACPI version | 1.0b |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.0 |
| System Management BIOS (SMBIOS) version | 2.4 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 208 mm |
| Depth | 244 mm |
