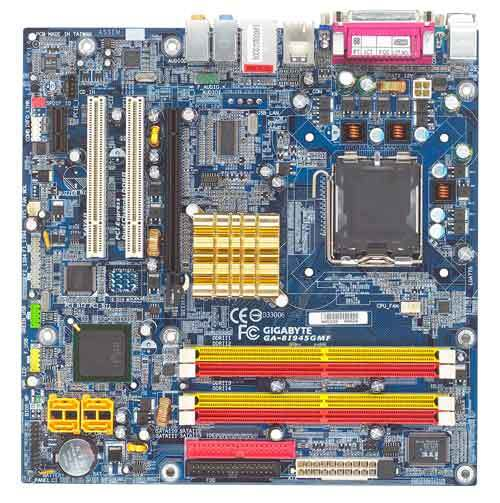

GA-8I945GMF (rev. 1.x)
Model GA-8I945GMF (rev. 1.x)Part no. GA-8I945G-MF
31 specifications
- Processor manufacturerIntel
- Supported memory typesDDR2-SDRAM
- Supported storage drive interfacesSATA II
- USB 2.0 connectors2
- USB 2.0 ports quantity4
- Ethernet LANYes
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR2-SDRAM
- Supported storage drive interfaces
- SATA II
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 4
- Ethernet LAN
- Yes
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-8I945GMF (rev. 1.x)
- Part number
- GA-8I945G-MF
- Also known as
- GIGABYTE GA-8I945GMF (rev. 1.x) Intel® 945G LGA 775 (Socket T) micro ATX
Specifications
31 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Compatible processor series | Intel® Pentium® 4, Intel® Pentium® D |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR2-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speed (max) | 667 MHz |
| Maximum internal memory | 4 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA II connectors | 4 |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of COM connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® 945G |
| Audio chip | Realtek ALC882 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI slots | 2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
