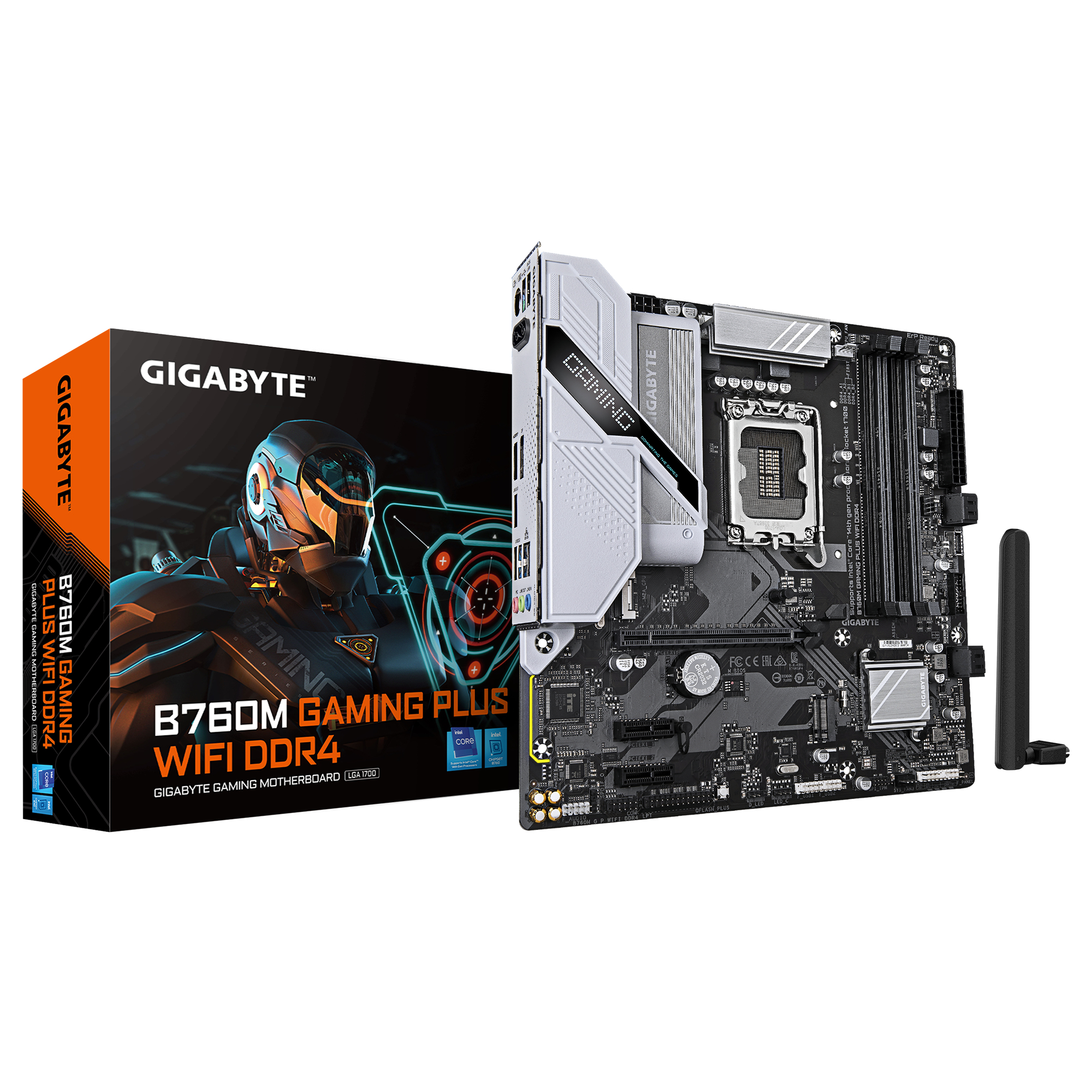

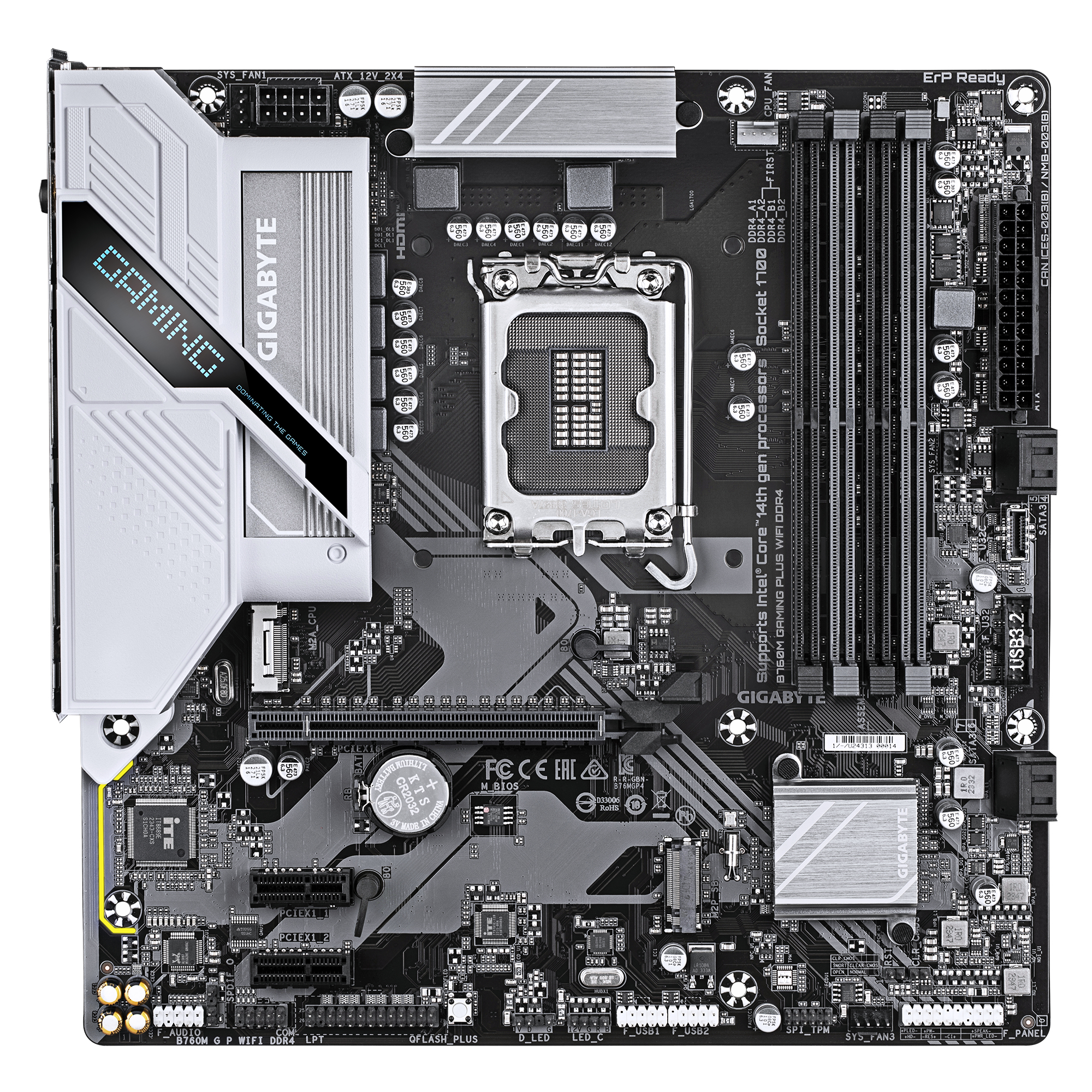

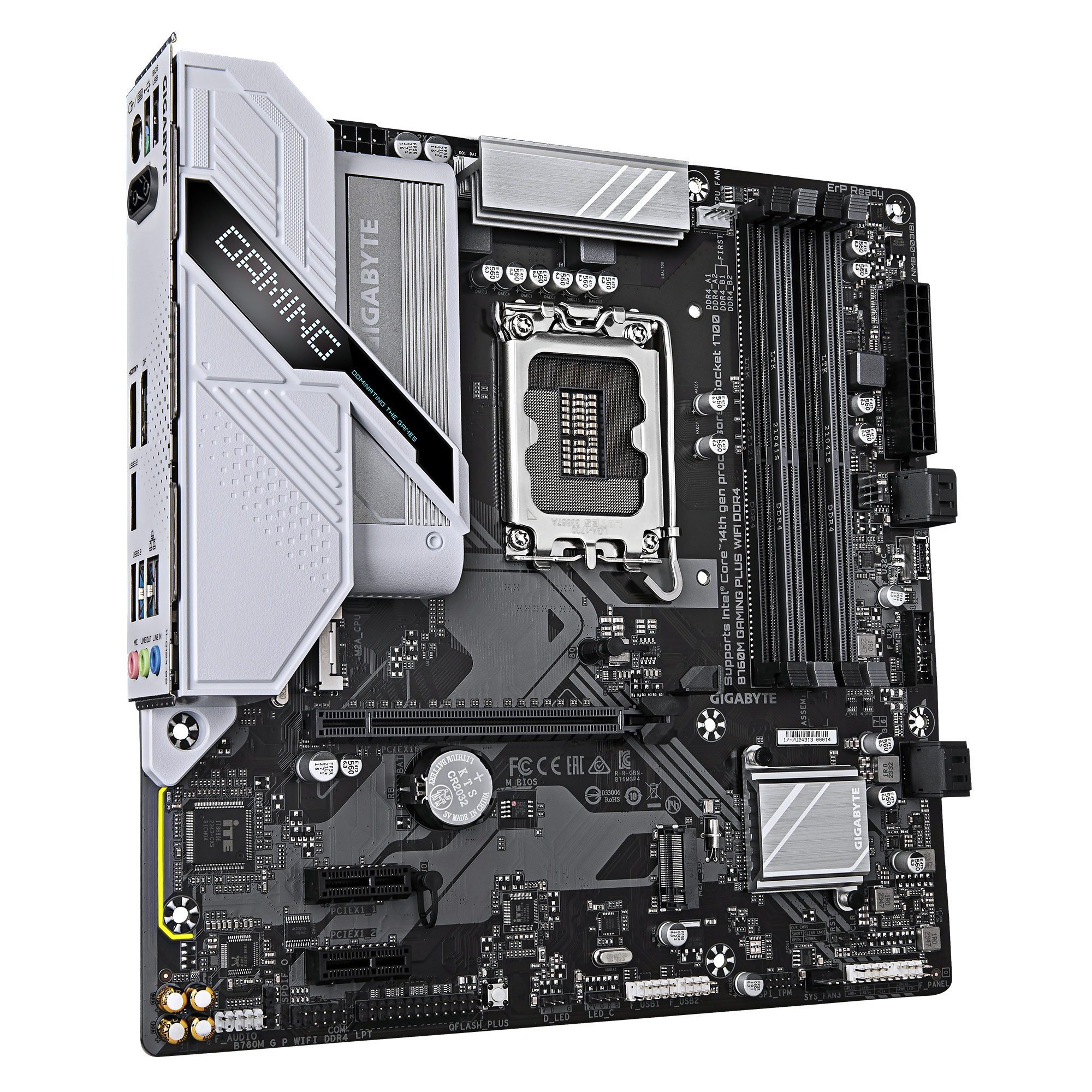

GIGABYTE B760M GAMING PLUS WIFI DDR4
GIGABYTE

B760M GAMING PLUS WIFI DDR4

Model B760M GAMING PLUS WIFI DDR4Part no. B760M GAMING PLUS WIFI DDR4 (REV. 1.1)EAN 889523043813

112 specifications
  • Battery220 mAh
  • SpeedWi-Fi 6 (802.11ax)
  • Weight1.1 kg
  • ColourGrey
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
See all specifications

Overview

Battery
220 mAh
Speed
Wi-Fi 6 (802.11ax)
Weight
1.1 kg
Colour
Grey
Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Brand
GIGABYTE
Category
Motherboard
Model
B760M GAMING PLUS WIFI DDR4
Part numbers
B760M GAMING PLUS WIFI DDR4 (REV. 1.1), B760M G P WIFI DDR4
EAN / UPC
889523043813, 4719331862855
Also known as
GIGABYTE B760M GAMING PLUS WIFI DDR4 Intel B760 LGA 1700 micro ATX

Specifications

112 specifications in 17 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1700
Compatible processor seriesIntel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th
Supported processor socketsLGA 1700
Maximum internal memory supported by processor128 GB

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz
Supported memory clock speed (max)5333 MHz
Maximum internal memory128 GB
Unbuffered memoryYes
Maximum internal memory per slot32 GB

Storage controllers

Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
Number of HDDs supported4
Number of storage drives supported6
RAID supportYes
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology supportNot supported
Maximum resolution4096 x 2304 pixels
HDCPYes
DirectX version12.0

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors4
S/PDIF out connectorYes
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of CPU fan connectors1
Number of chassis fan connectors3
EPS power connector (8-pin)Yes
Number of EPS power connectors (8-pin)1
Parallel connectorYes
Serial port headers1
TPM connectorYes
RGB LED pin headerYes
Number of RGB LED pin headers2

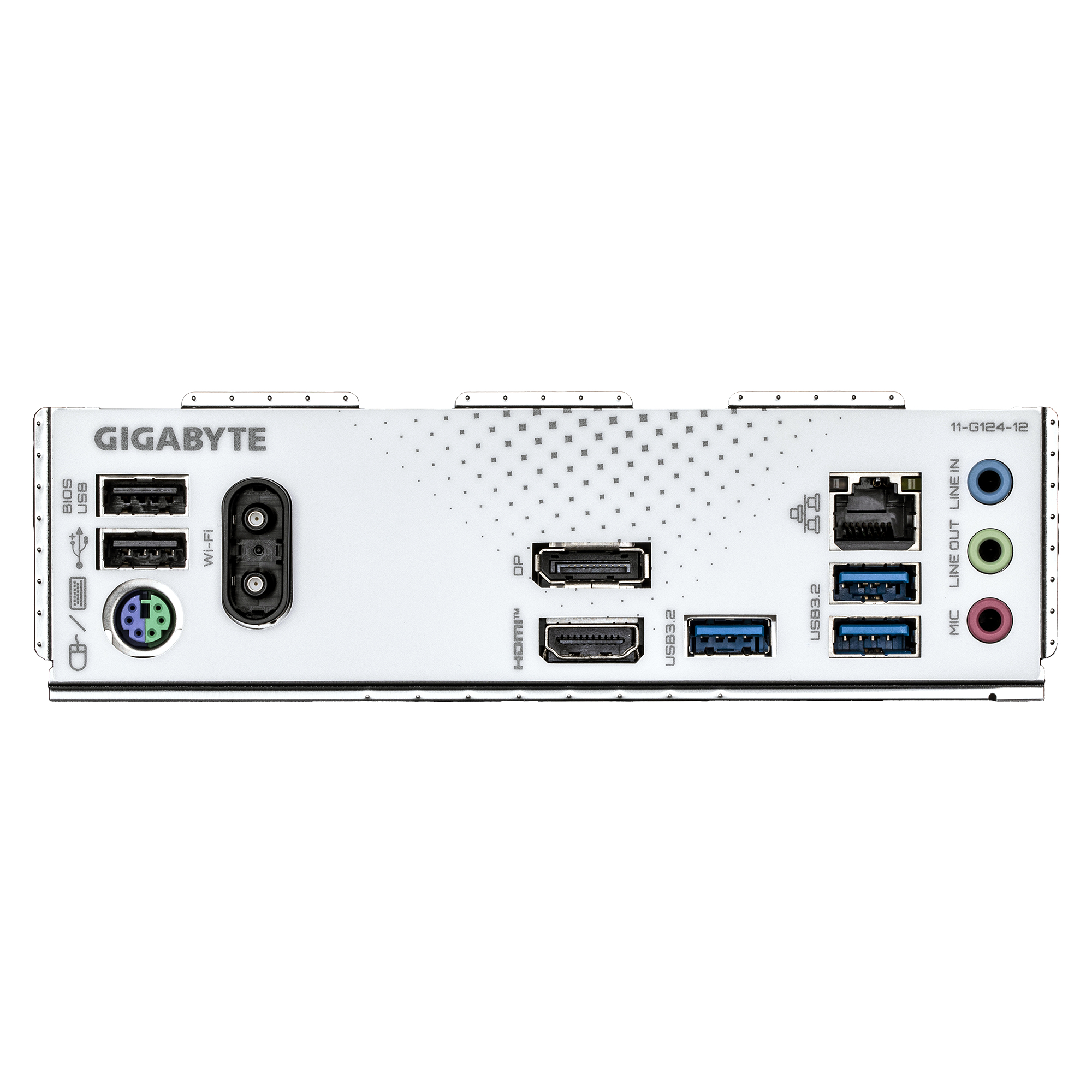

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
PS/2 ports quantity1
VGA (D-Sub) ports quantity0
HDMI ports quantity1
HDMI version2.1
DVI-D ports quantity0
DisplayPorts quantity1
DisplayPort version1.2
Headphone outputs1
Line-inYes
WiFi-AP antenna jack2

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111H
Wi-FiYes
Top Wi-Fi standardWi-Fi 6 (802.11ax)
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN controller modelRealtek RTL8851BE
BluetoothYes
Bluetooth version5.3

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel B760
Audio chipRealtek ALC897
Audio output channels7.1 channels
Product colourGrey
PC health monitoringFan, Temperature, Voltage, Water cooling
Power source typeATX
Windows operating systems supportedWindows 10 x64, Windows 11 x64

Expansion slots

PCI Express x1 (Gen 3.x) slots2
PCI Express x16 (Gen 4.x) slots1
Number of M.2 (M) slots2
1st M.2 largest key size2280
1st M.2 highest PCI Express generation4.0
2nd M.2 largest key size2280
2nd M.2 highest PCI Express generation4.0

BIOS

BIOS typeUEFI AMI
BIOS memory size128 Mbit
ACPI version5.0
Clear CMOS jumperYes
Desktop Management Interface (DMI) version2.7
System Management BIOS (SMBIOS) version2.7

Logistics data

Country of originChina
Products per shipping (inner) case1 pc(s)

Battery

Battery weight3 g
Lithium weight per battery0.07 g
Number of battery cells1
Battery capacity220 mAh
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032

Packaging data

Package width270 mm
Package depth268 mm
Package height68 mm
Package weight1.2 kg

Weight & dimensions

Width244 mm
Depth244 mm
Height35 mm

Packaging content

Antenna includedYes
Batteries includedYes
Screws includedYes
Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software

Other features

Weight1.1 kg

Technical details

Warranty period3 year(s)
