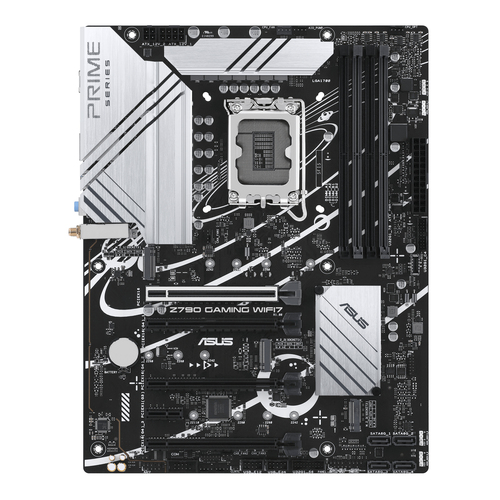

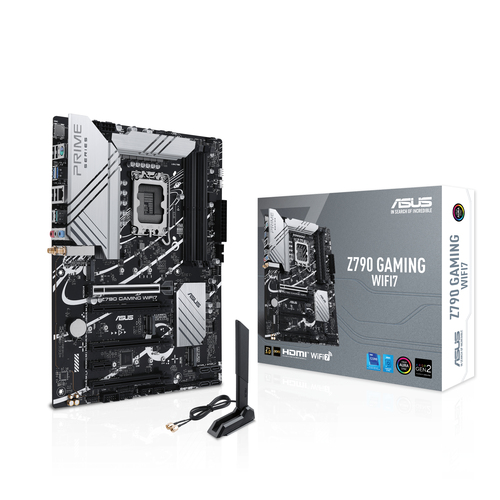

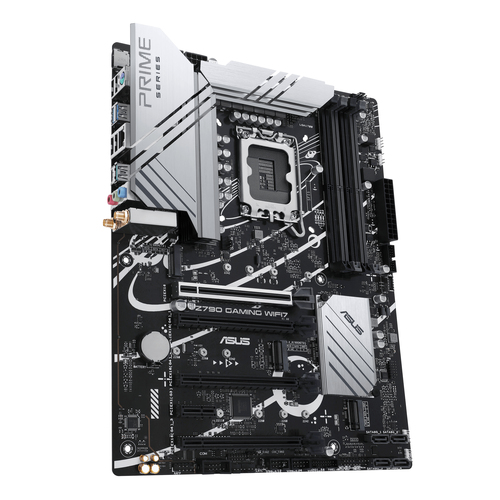

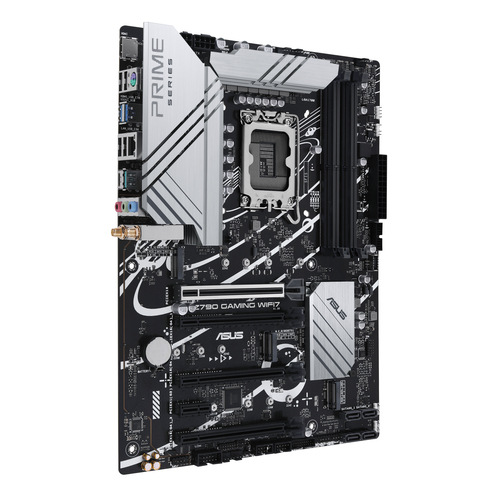

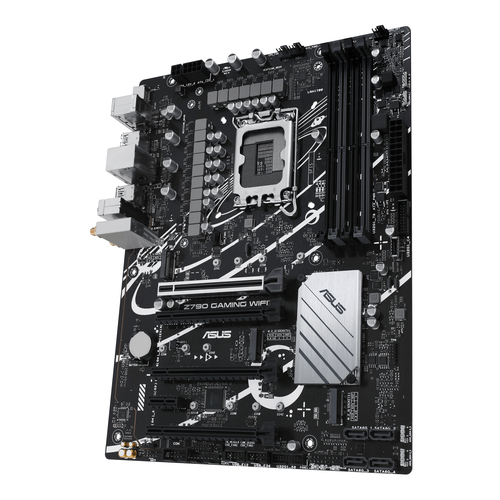

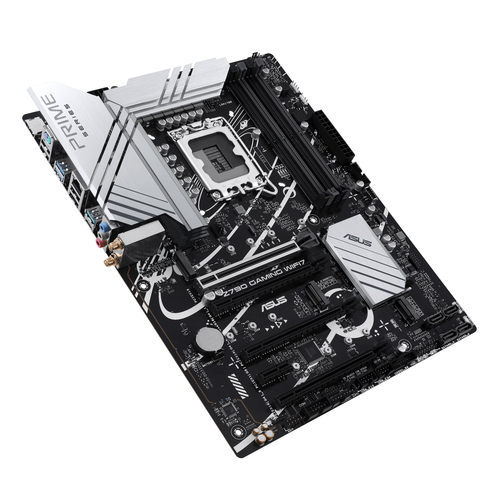

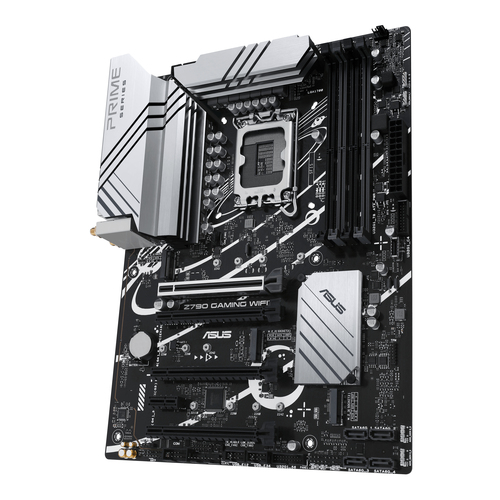

Z790 GAMING WIFI7

Model Z790 GAMING WIFI7EAN 197105511699

92 specifications

Overview

92 specifications in 13 groups

Specification	Value
Processor manufacturer	Intel
Processor socket	LGA 1700
Compatible processor series	Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen
Supported processor sockets	LGA 1700

Specification	Value
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	Non-ECC
Supported memory clock speeds	7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz
Supported memory clock speed (max)	7200 MHz
Maximum internal memory	192 GB
Unbuffered memory	Yes

Specification	Value
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, PCI Express 4.0, SATA III
Number of HDDs supported	4
Number of storage drives supported	7
RAID support	Yes
RAID levels	0, 1, 5, 10

Specification	Value
Parallel processing technology support	Not supported
On-board graphics card	No

Specification	Value
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	3
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Number of SATA II connectors	0
Number of SATA connectors	0
S/PDIF out connector	Yes
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of CPU fan connectors	2
Number of chassis fan connectors	3
EPS power connector (8-pin)	Yes
Number of EPS power connectors (8-pin)	1
12V power connector	Yes
Number of COM connectors	1
Number of water pump connectors	1
TPM connector	Yes
Thunderbolt headers	1
RGB LED pin header	Yes
Number of RGB LED pin headers	3

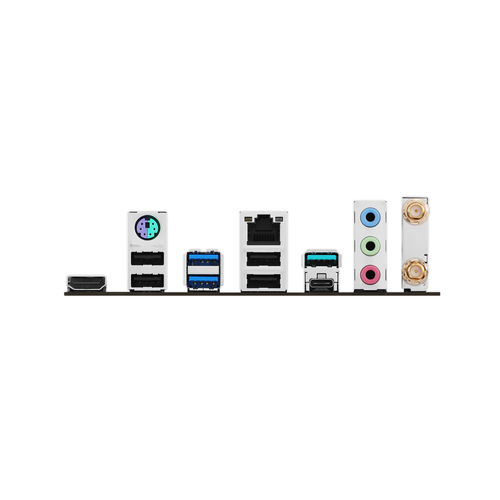

Specification	Value
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 3.2 Gen 2x2 Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
PS/2 ports quantity	1
VGA (D-Sub) ports quantity	0
HDMI ports quantity	1
HDMI version	2.1
DVI-D ports quantity	0
Line-in	Yes
Microphone in	Yes
WiFi-AP antenna jack	2

Specification	Value
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	Intel
Motherboard chipset	Intel Z790
Audio output channels	7.1 channels
Product colour	Grey
Power source type	ATX
Windows operating systems supported	Windows 11 x64

Specification	Value
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	3
PCI Express x16 (Gen 5.x) slots	1
Number of M.2 (M) slots	3
1st M.2 largest key size	22110
1st M.2 highest PCI Express generation	4.0
2nd M.2 largest key size	2280
2nd M.2 highest PCI Express generation	4.0
3rd M.2 largest key size	22110
3rd M.2 highest PCI Express generation	4.0
