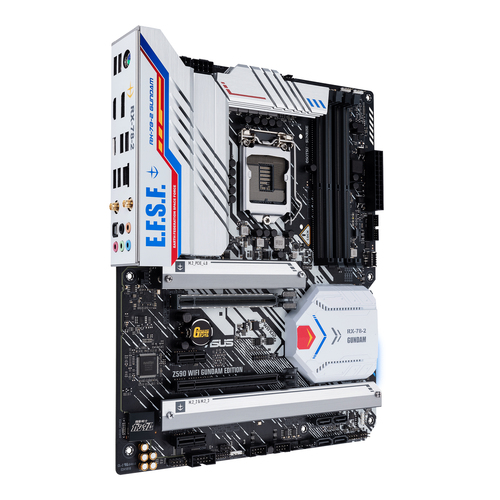

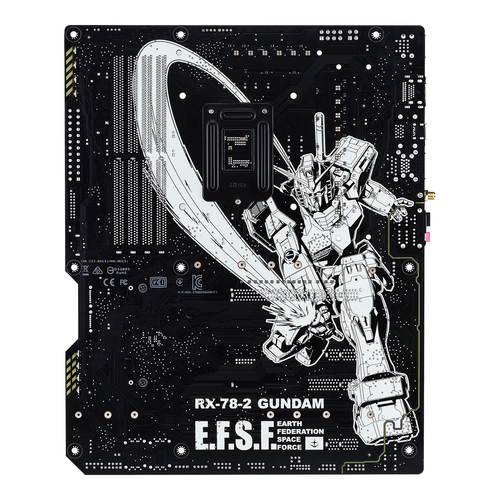

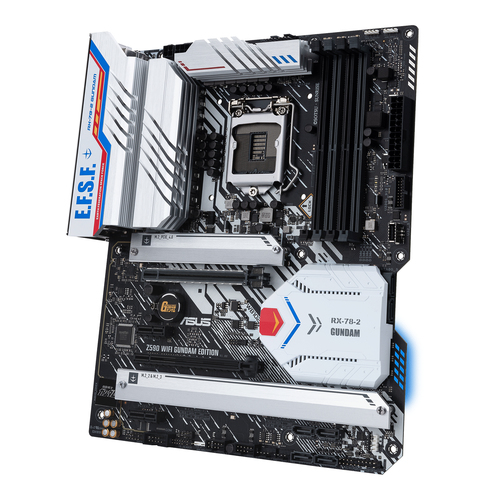

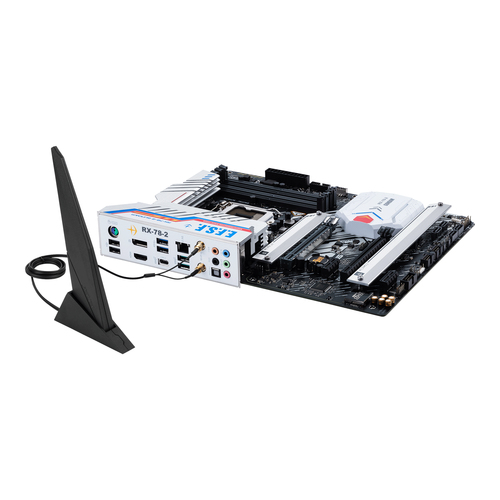

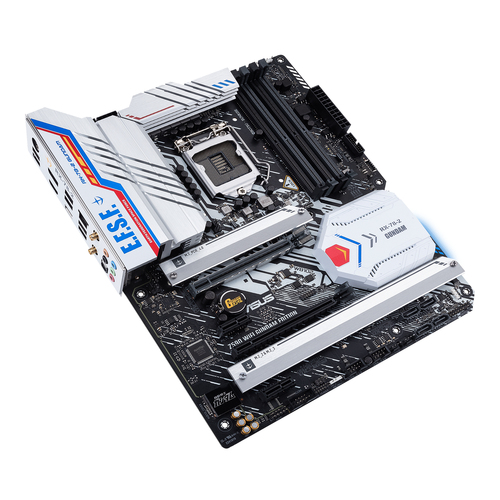

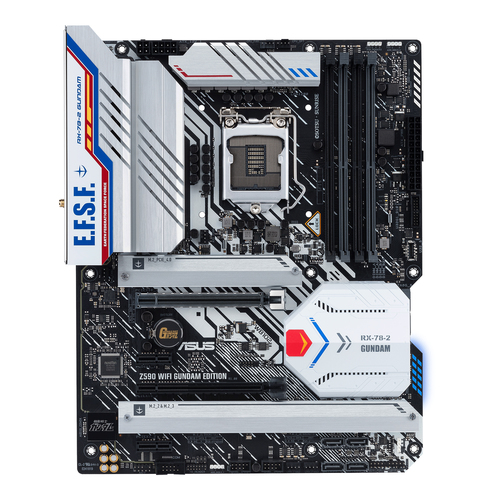

Z590 WIFI GUNDAM EDITION

Model Z590 WIFI GUNDAM EDITIONEAN 195553185677

80 specifications

Overview

Brand: ASUS
Category: Motherboard
Model: Z590 WIFI GUNDAM EDITION
Part numbers: Z590 WIFI GUNDAM EDITION, 90MB1830-M0EAY0
EAN / UPC: 195553185677, 4711081185666
Also known as: ASUS Z590 WIFI GUNDAM EDITION motherboard Intel Z590 LGA 1200 (Socket H5) ATX

80 specifications in 12 groups

Specification	Value
Processor manufacturer	Intel
Processor socket	LGA 1200 (Socket H5)
Compatible processor series	Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G
Supported processor sockets	LGA 1200 (Socket H5)

Specification	Value
Supported memory types	DDR4-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	Non-ECC
Supported memory clock speeds	2133,2400,2666,2800,2933,3000,3300,3333,3400,3466,3600,3733,3866,4000,4133,4266,4400,4500,4600,4700,4800,5000,5133 MHz
Maximum internal memory	128 GB
Unbuffered memory	Yes

Specification	Value
Supported storage drive types	HDD
Supported storage drive interfaces	M.2, SATA III
Number of storage drives supported	9

Specification	Value
Parallel processing technology support	Not supported
Maximum resolution	4096 x 2304 pixels

Specification	Value
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	6
Number of SATA II connectors	0
Number of Parallel ATA connectors	0
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of chassis fan connectors	3
Peripheral (Molex) power connectors (4-pin)	7
EPS power connector (8-pin)	Yes
12V power connector	Yes
Number of COM connectors	1
Thunderbolt headers	1
RGB LED pin header	Yes

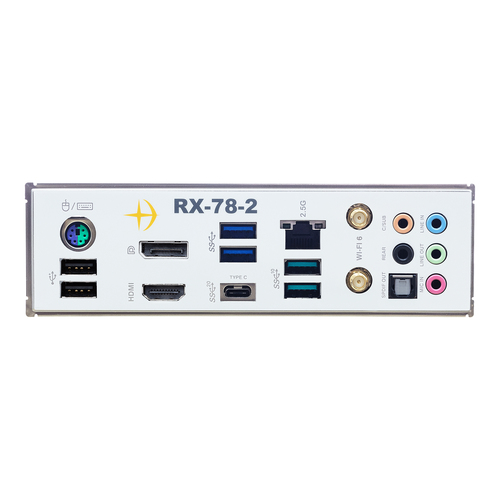

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
eSATA ports quantity	0
PS/2 ports quantity	1
Firewire (IEEE 1394) ports	0
VGA (D-Sub) ports quantity	0
HDMI ports quantity	1
HDMI version	2.0
DVI-D ports quantity	0
DisplayPorts quantity	1
DisplayPort version	1.4
Headphone outputs	5
Microphone in	Yes
S/PDIF out port	Yes
WiFi-AP antenna jack	1
USB connector type	USB Type-A, USB Type-C

Specification	Value
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	Intel
Motherboard chipset	Intel Z590
Audio chip	Realtek ALC S1200A
Audio output channels	7.1 channels
Windows operating systems supported	Windows 10 x64
