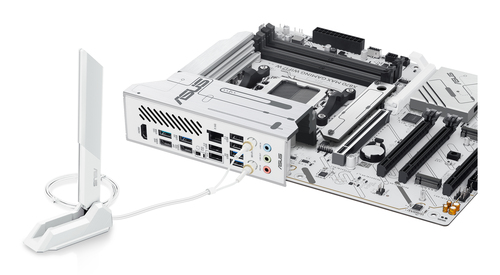

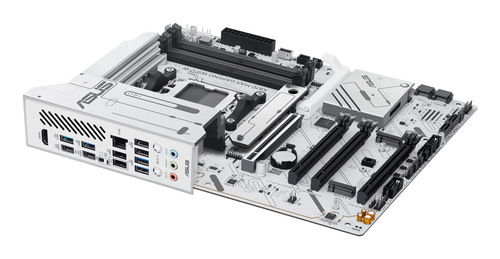

X870 MAX GAMING WIFI7 W

Model X870 MAX GAMING WIFI7 WPart no. 90MB1LZ0-M0EAY0EAN 199291007857

80 specifications

Overview

80 specifications in 12 groups

Specification	Value
Processor manufacturer	AMD
Processor socket	Socket AM5
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets	Socket AM5

Specification	Value
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	ECC & Non-ECC
Supported memory clock speed (max)	8000 MHz
Maximum internal memory	256 GB
Unbuffered memory	Yes

Specification	Value
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	PCI Express 4.0, PCI Express 5.0, SATA III
Number of storage drives supported	7
RAID support	Yes
RAID levels	0, 1, 5, 10

Specification	Value
Parallel processing technology support	Not supported
Maximum resolution	3840 x 2160 pixels

Specification	Value
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB 3.2 Gen 2x2 connectors	1
Number of SATA III connectors	4
S/PDIF out connector	Yes
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of CPU fan connectors	2
Number of chassis fan connectors	4
Chassis intrusion connector	Yes
EPS power connector (8-pin)	Yes
Number of EPS power connectors (8-pin)	2
12V power connector	Yes
Number of COM connectors	1
Number of water pump connectors	1
TPM connector	Yes
RGB LED pin header	Yes
Number of RGB LED pin headers	3

Specification	Value
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB4 Gen 3x2 ports quantity	2
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	0
HDMI ports quantity	1
HDMI version	2.1
DVI-D ports quantity	0
Headphone outputs	3
Microphone in	Yes
WiFi-AP antenna jack	2
USB connector type	USB Type-A, USB Type-C

Specification	Value
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	AMD
Motherboard chipset	AMD X870
Audio output channels	7.1 channels
Product colour	White
Windows operating systems supported	Windows 11
