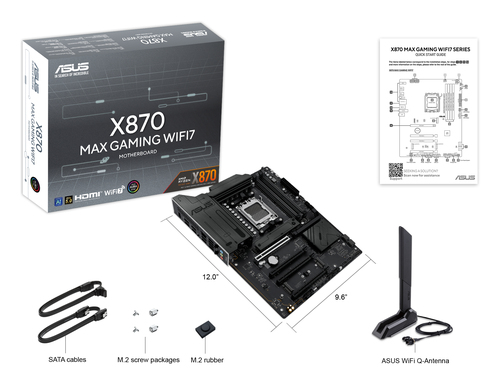

ASUS X870 MAX GAMING WIFI7

ASUS X870 MAX GAMING WIFI7

Model X870 MAX GAMING WIFI7Part no. 90MB1LY0-M0EAY0EAN 199291007840

80 specifications
  • SpeedWi-Fi 7 (802.11be)
  • Weight1.36 kg
  • ColourMulticolour
  • Processor manufacturerAMD
  • Supported memory typesDDR5-SDRAM
  • Supported storage drive typesHDD & SSD
See all specifications

Overview

Speed
Wi-Fi 7 (802.11be)
Weight
1.36 kg
Colour
Multicolour
Processor manufacturer
AMD
Supported memory types
DDR5-SDRAM
Supported storage drive types
HDD & SSD
Brand
ASUS
Category
Motherboard
Model
X870 MAX GAMING WIFI7
Part number
90MB1LY0-M0EAY0
EAN / UPC
199291007840, 4711636007849
Also known as
ASUS X870 MAX GAMING WIFI7 AMD X870 Socket AM5 ATX

Specifications

80 specifications in 14 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM5
Compatible processor seriesAMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Memory

Supported memory typesDDR5-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speed (max)8000 MHz
Maximum internal memory256 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
Number of HDDs supported4
Number of storage drives supported7
RAID supportYes
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology supportNot supported
On-board graphics cardNo

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
USB 3.2 Gen 2x2 connectors1
Number of SATA III connectors4
Number of SATA II connectors0
Number of SATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of CPU fan connectors1
Number of chassis fan connectors4
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
12V power connectorYes
Number of COM connectors1
TPM connectorYes

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
USB4 Gen 3x2 ports quantity2
Ethernet LAN (RJ-45) ports1
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity0
Line-inYes
Microphone inYes
WiFi-AP antenna jack2
USB connector typeUSB Type-A, USB Type-C

Network

Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
Wi-FiYes
Top Wi-Fi standardWi-Fi 7 (802.11be)
BluetoothYes
Bluetooth version5.4

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyAMD
Motherboard chipsetAMD X870
Audio output channels7.1 channels
Product colourMulticolour
Windows operating systems supportedWindows 11

Expansion slots

PCI Express x16 (Gen 3.x) slots1
PCI Express x16 (Gen 4.x) slots2
PCI Express x16 (Gen 5.x) slots1
Number of M.2 (M) slots3

BIOS

BIOS typeUEFI AMI
BIOS memory size256 Mbit

Packaging data

Package width353 mm
Package depth273 mm
Package height68 mm
Package weight1.95 kg

Weight & dimensions

Width305 mm
Depth244 mm
Height48 mm

Packaging content

Antenna includedYes

Other features

mSATA ports quantity0
Weight1.36 kg
