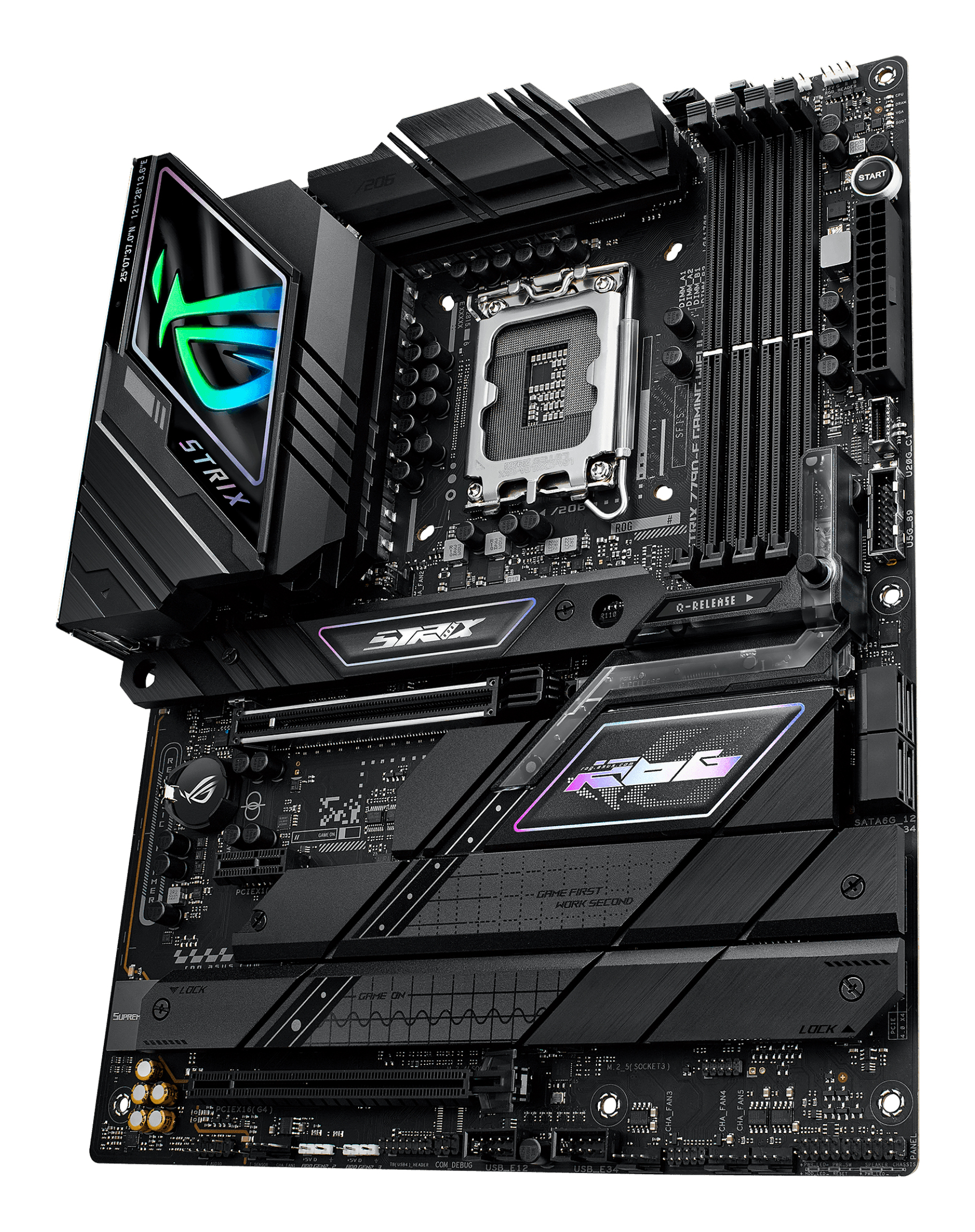

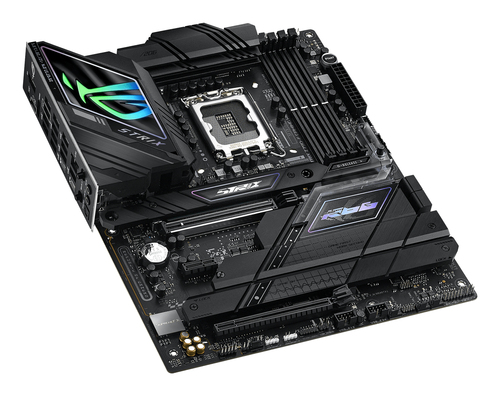

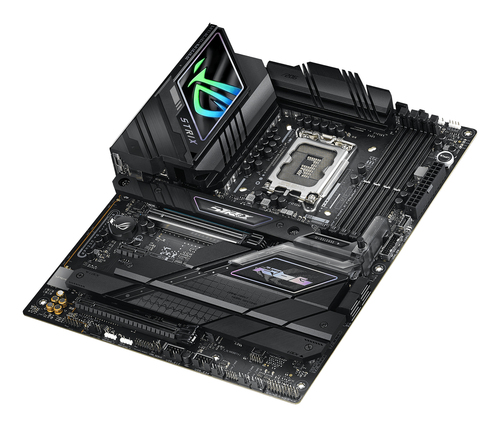

ASUS ROG STRIX Z790-F GAMING WIFI II

ASUS ROG STRIX Z790-F GAMING WIFI II

Model ROG STRIX Z790-F GAMING WIFI IIPart no. 90MB1FM0-M0EAY0EAN 197105356542

72 specifications
  • SpeedWi-Fi 7 (802.11be)
  • Processor manufacturerIntel
  • Supported memory typesDDR5-SDRAM
  • Supported storage drive typesHDD & SSD
  • Parallel processing technology supportNot supported
  • USB 2.0 connectors2
See all specifications

Overview

Speed
Wi-Fi 7 (802.11be)
Processor manufacturer
Intel
Supported memory types
DDR5-SDRAM
Supported storage drive types
HDD & SSD
Parallel processing technology support
Not supported
USB 2.0 connectors
2
Brand
ASUS
Category
Motherboard
Model
ROG STRIX Z790-F GAMING WIFI II
Part numbers
90MB1FM0-M0EAY0, 90MB1FM0-MVAAY0
EAN / UPC
197105356542, 4711387356548
Also known as
ASUS ROG STRIX Z790-F GAMING WIFI II Intel Z790 LGA 1700 ATX

Specifications

72 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1700
Compatible processor seriesIntel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Supported processor socketsLGA 1700

Memory

Supported memory typesDDR5-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds8000,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz
Supported memory clock speed (max)8000 MHz
Maximum internal memory192 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
Number of HDDs supported4
Number of storage drives supported6
RAID supportYes
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology supportNot supported

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
USB 3.2 Gen 2x2 connectors1
Number of SATA III connectors4
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors5
EPS power connector (8-pin)Yes
12V power connectorYes
Thunderbolt headers1
RGB LED pin headerYes

Rear panel I/O ports

USB 2.0 ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
USB 3.2 Gen 2x2 Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity0
DisplayPorts quantity1
Headphone outputs1
Microphone inYes
S/PDIF out portYes
WiFi-AP antenna jack1

Network

Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
Wi-FiYes
Top Wi-Fi standardWi-Fi 7 (802.11be)
Wi-Fi standardsWi-Fi 7 (802.11be)
BluetoothYes
Bluetooth version5.4

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel Z790
Audio chipRealtek ALC4080
Audio output channels5.1 channels
Windows operating systems supportedWindows 10 x64, Windows 11

Expansion slots

PCI Express x1 (Gen 3.x) slots1
PCI Express x16 (Gen 4.x) slots1
PCI Express x16 (Gen 5.x) slots1
Number of M.2 (M) slots2

BIOS

BIOS typeUEFI AMI
BIOS memory size256 Mbit
Clear CMOS buttonYes

Weight & dimensions

Width305 mm
Depth244 mm

Packaging content

Cables includedSATA
