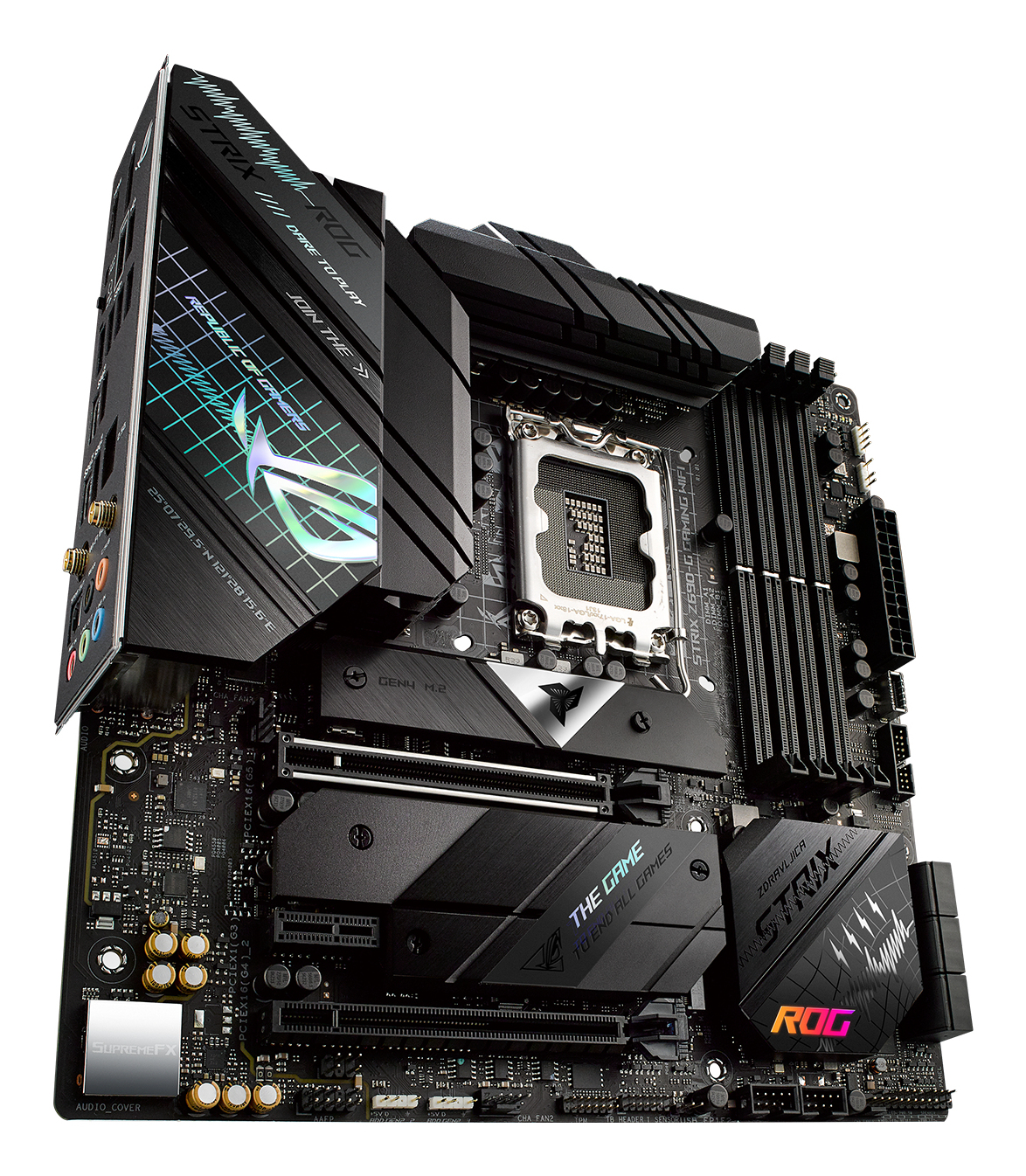

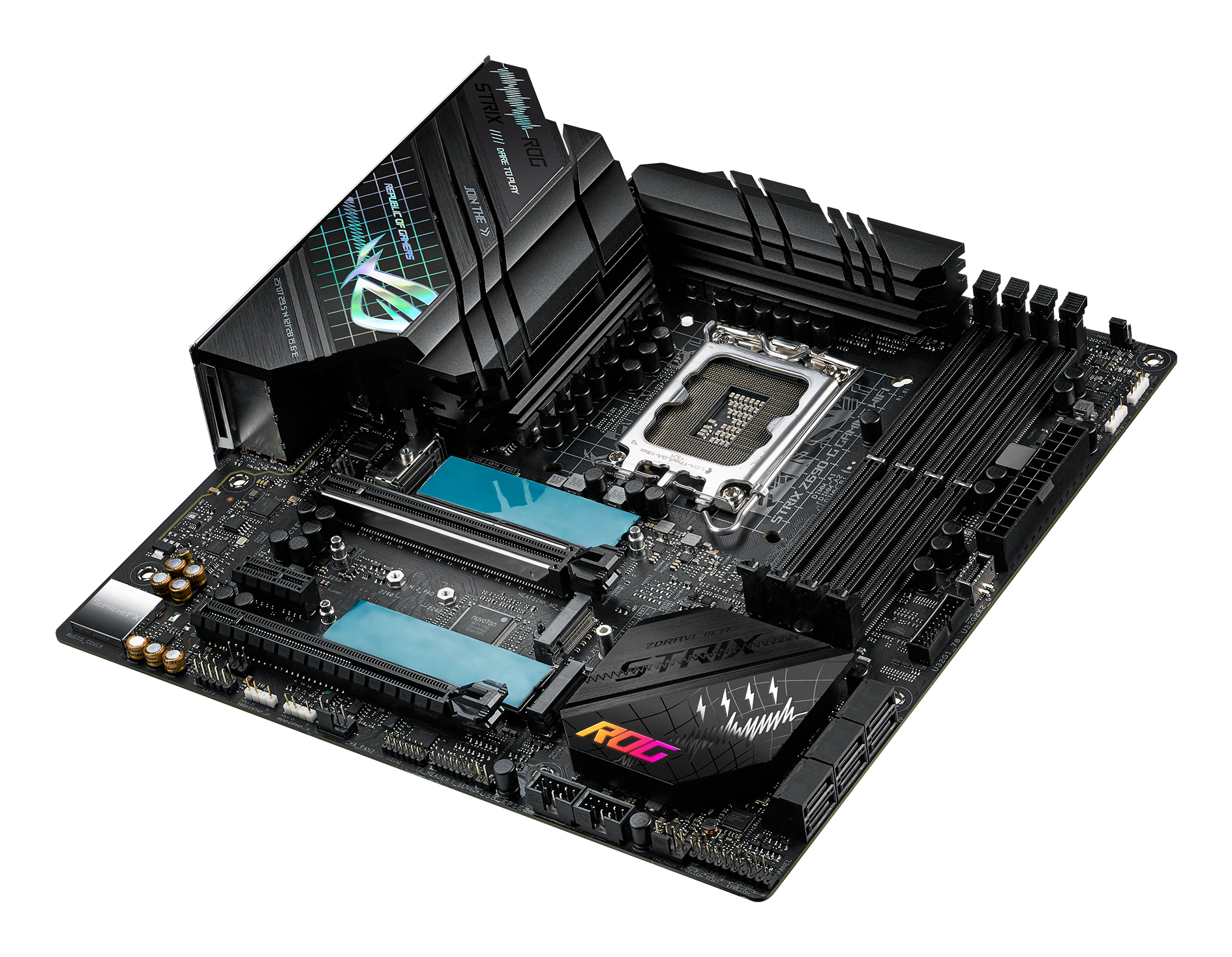

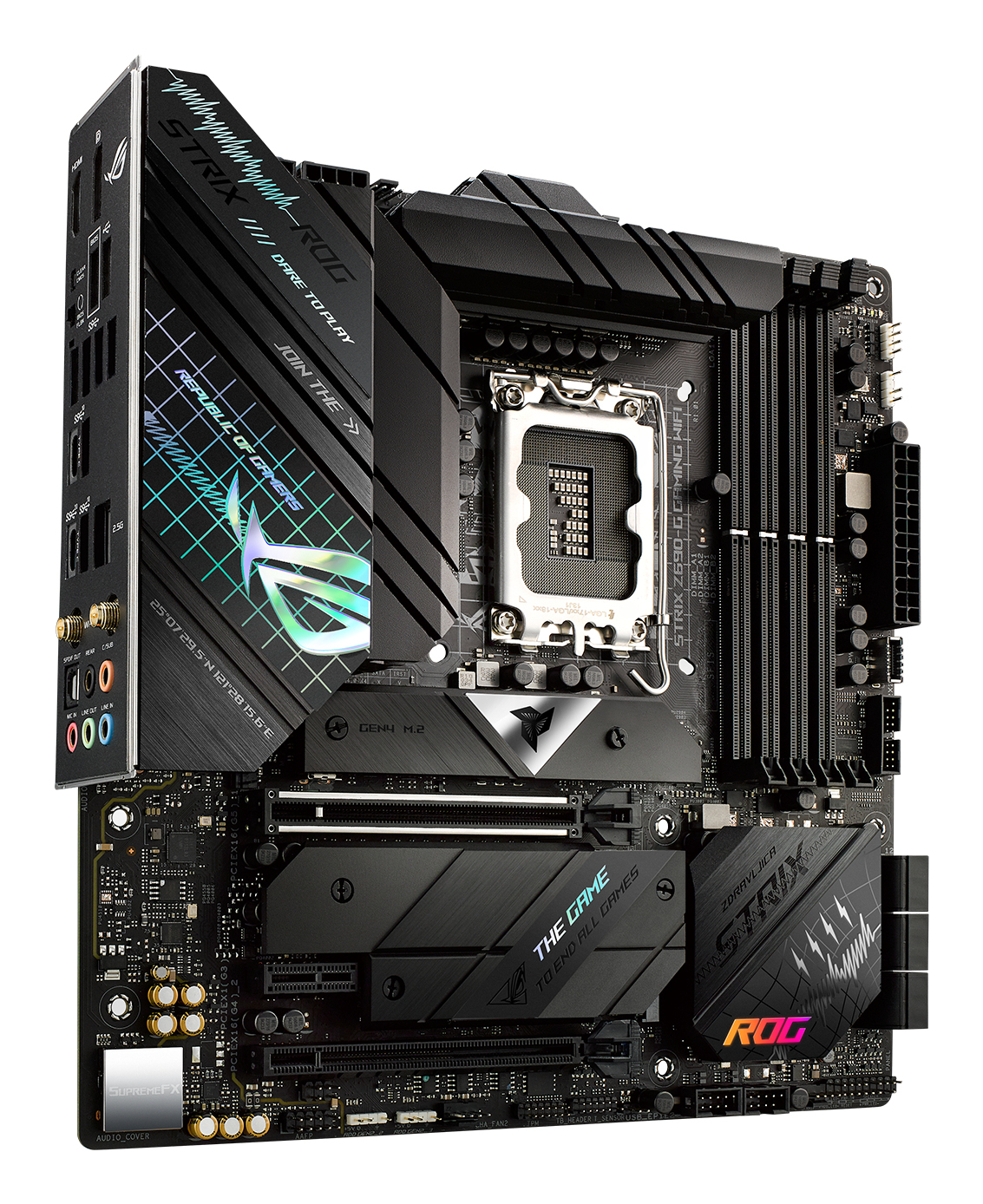

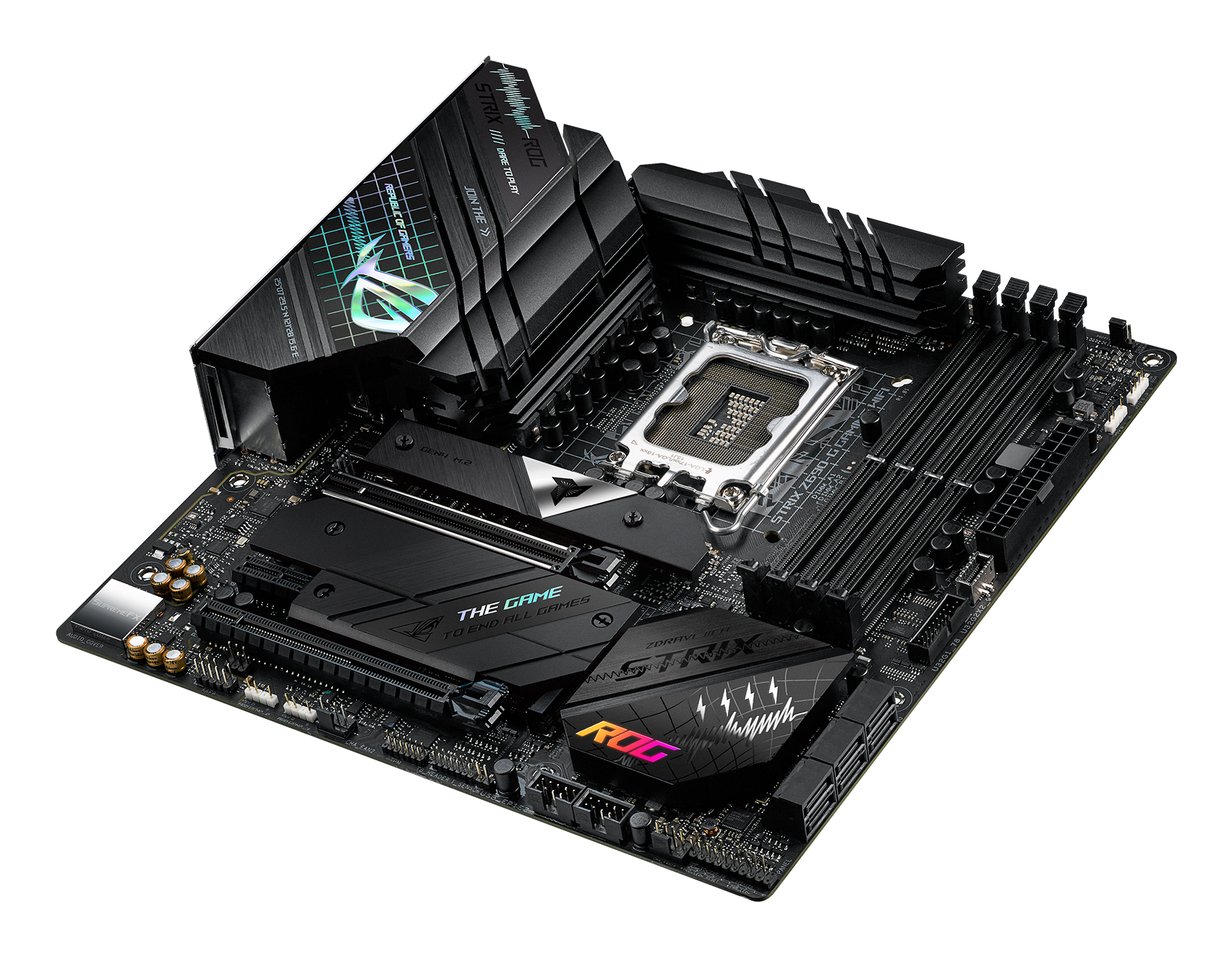

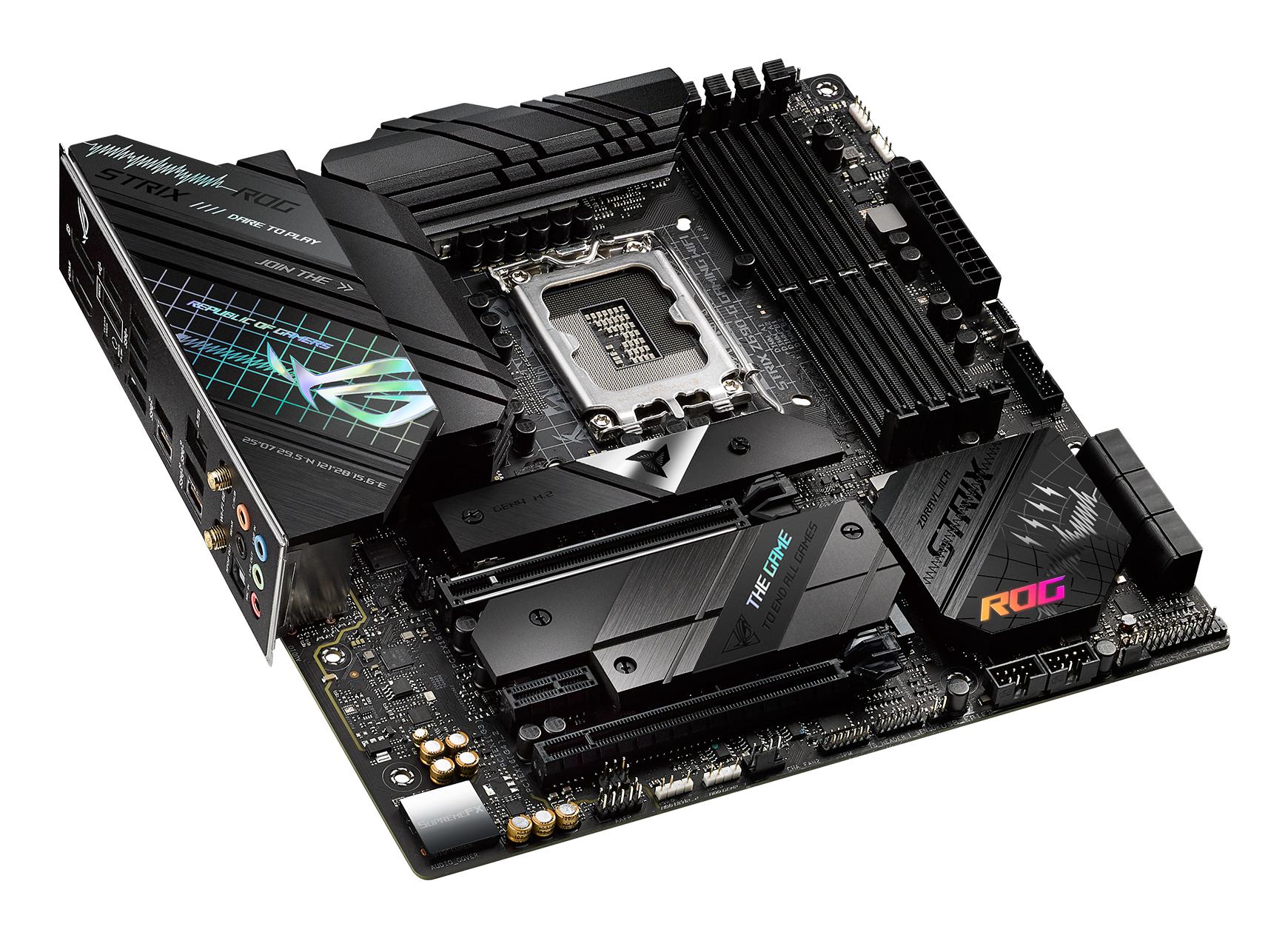

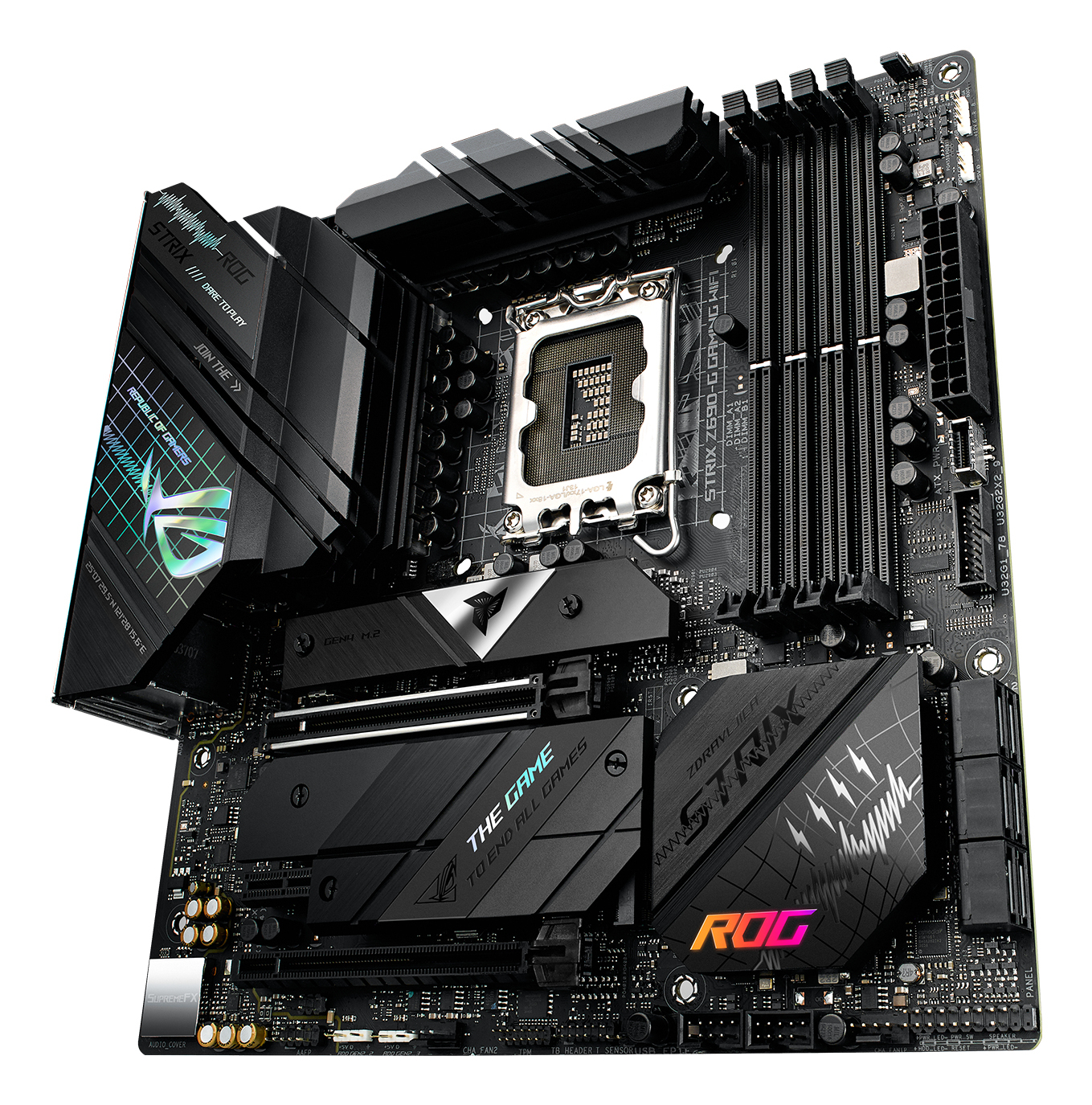

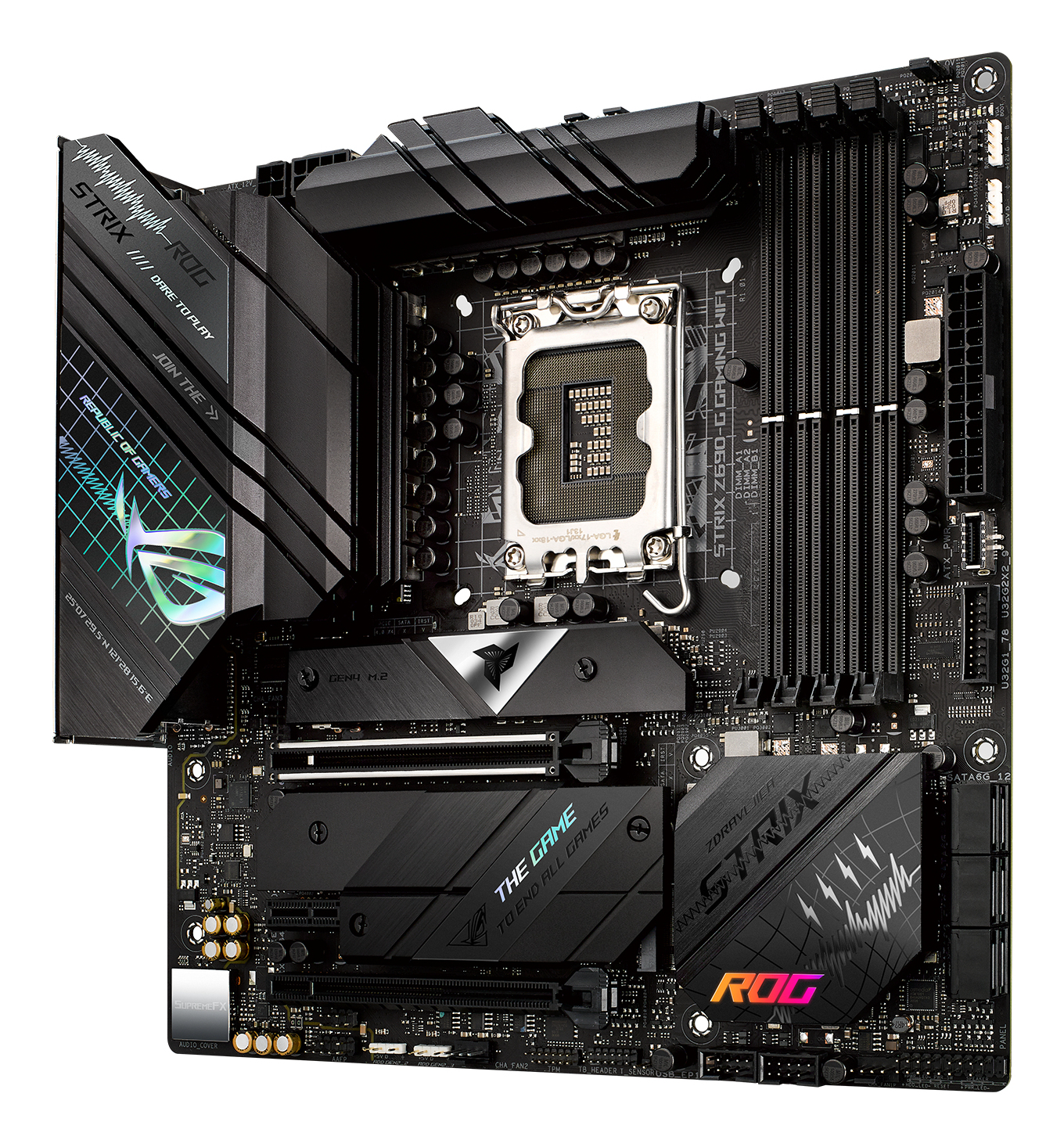

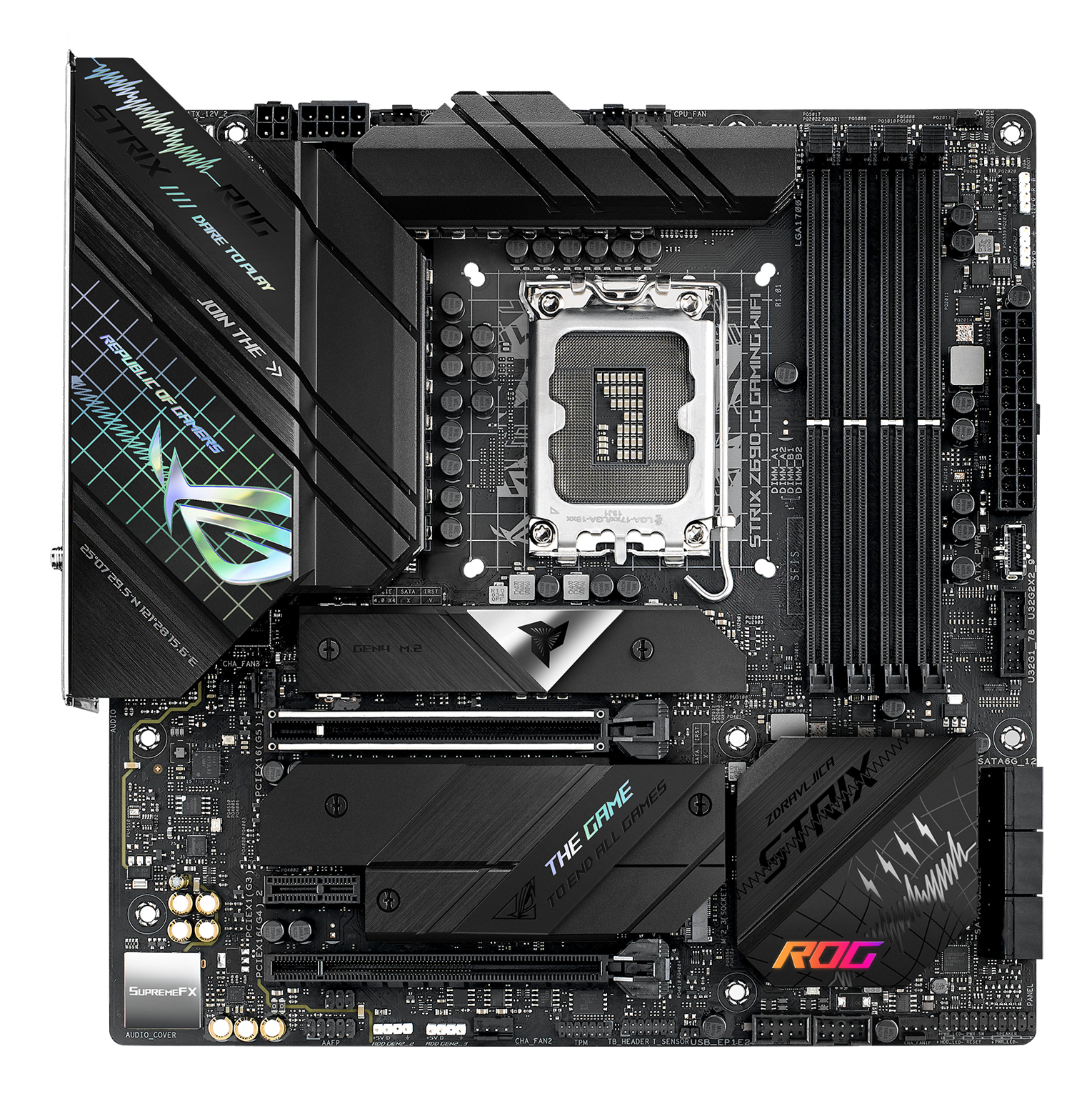

ASUS ROG STRIX Z690-G GAMING WIFI

ASUS ROG STRIX Z690-G GAMING WIFI

Model ROG STRIX Z690-G GAMING WIFIPart no. 90MB19G0-M0EAY0EAN 4711081455417

73 specifications
  • SpeedWi-Fi 6E (802.11ax)
  • Weight1.2 kg
  • Processor manufacturerIntel
  • Supported memory typesDDR5-SDRAM
  • Supported storage drive typesHDD & SSD
  • Parallel processing technology supportNot supported
See all specifications

Overview

Speed
Wi-Fi 6E (802.11ax)
Weight
1.2 kg
Processor manufacturer
Intel
Supported memory types
DDR5-SDRAM
Supported storage drive types
HDD & SSD
Parallel processing technology support
Not supported
Brand
ASUS
Category
Motherboard
Model
ROG STRIX Z690-G GAMING WIFI
Part numbers
90MB19G0-M0EAY0, 90MB19G0-M0UAY0
EAN / UPC
4711081455417, 195553455411, 4711081455424
Also known as
ASUS ROG STRIX Z690-G GAMING WIFI Intel Z690 LGA 1700 micro ATX

Specifications

73 specifications in 14 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1700
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G

Memory

Supported memory typesDDR5-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds4800,5000,5200,5400,5600,5800,6000 MHz
Maximum internal memory128 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA
RAID supportYes
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology supportNot supported

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of SATA III connectors6
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
Number of chassis fan connectors3
Peripheral (Molex) power connectors (4-pin)1
EPS power connector (8-pin)Yes
12V power connectorYes
TPM connectorYes
Thunderbolt headers1
RGB LED pin headerYes

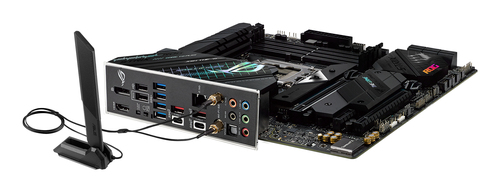

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
USB 3.2 Gen 2x2 Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
VGA (D-Sub) ports quantity0
HDMI ports quantity1
HDMI version2.1
DVI-D ports quantity0
DisplayPorts quantity1
DisplayPort version1.4
Headphone outputs1
Microphone inYes
S/PDIF out portYes

Network

Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
Wi-FiYes
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
BluetoothYes
Bluetooth version5.2

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel Z690
Audio chipRealtek ALC4080
Audio output channels7.1 channels
Windows operating systems supportedWindows 10, Windows 11

Expansion slots

PCI Express x1 (Gen 3.x) slots1
PCI Express x16 (Gen 4.x) slots1
Number of M.2 (M) slots3

BIOS

BIOS typeUEFI AMI
BIOS memory size256 Mbit

Logistics data

Harmonized System (HS) code84733020

Weight & dimensions

Width244 mm
Depth244 mm

Packaging content

Cables includedSATA
Drivers includedYes

Other features

Weight1.2 kg
Packaging content4 x SATA 6Gb/s cables 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x M.2 Rubber Package 1 x M.2 Q-Latch package 1 x M.2 Q-Latch package for M.2 backplate 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card 1 x Support DVD 1 x User manual
