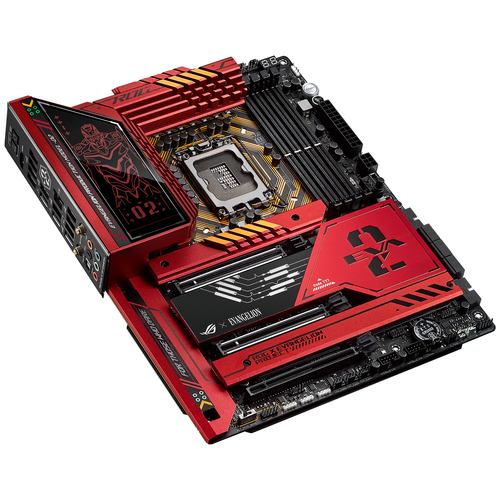

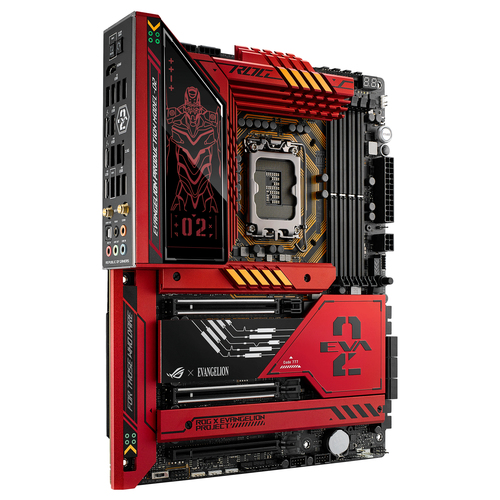

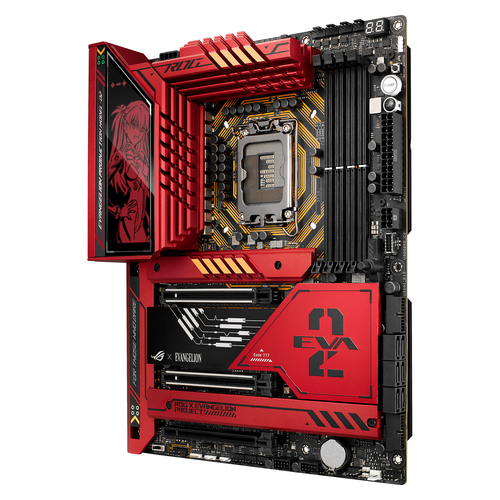

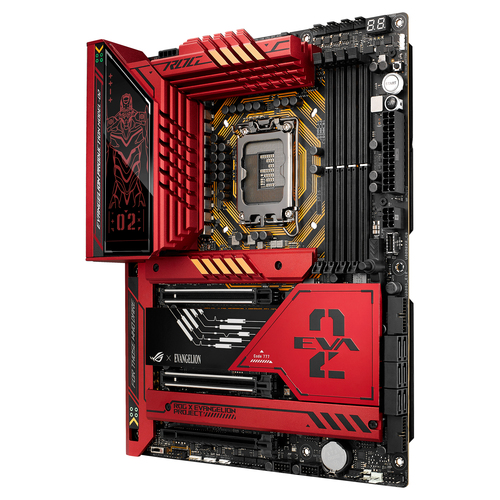

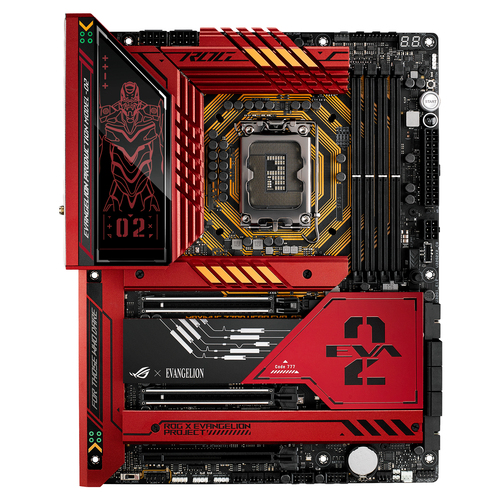

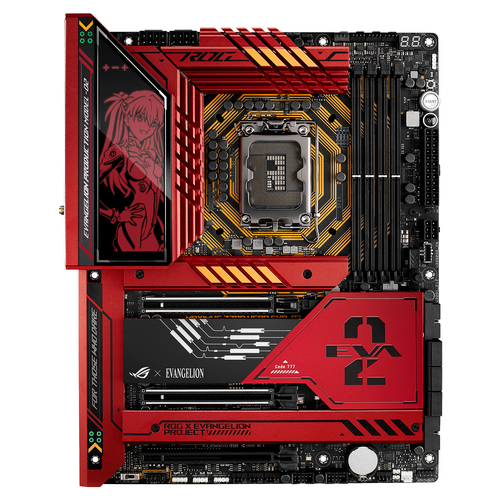

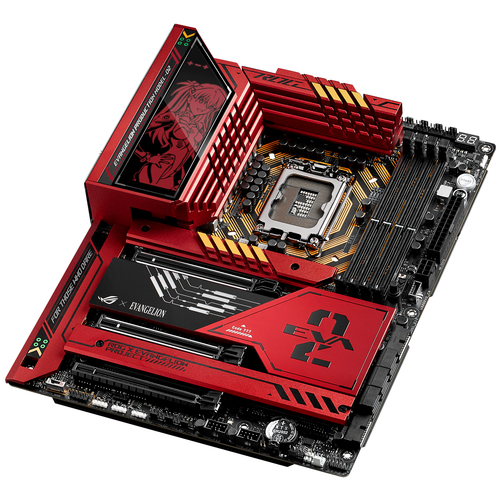

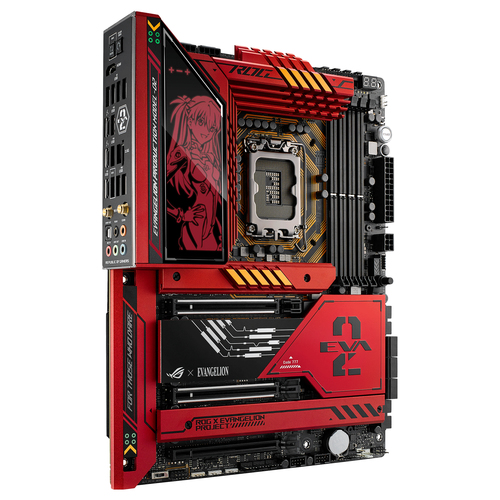

ASUS ROG MAXIMUS Z790 HERO EVA-02 EDITION

ASUS ROG MAXIMUS Z790 HERO EVA-02 EDITION

Model ROG MAXIMUS Z790 HERO EVA-02 EDITIONPart no. 90MB1FL0-M0EAY0EAN 4711387306031

76 specifications
  • SpeedWi-Fi 6E (802.11ax)
  • ColourBlack, Red
  • Processor manufacturerIntel
  • Supported memory typesDDR5-SDRAM
  • Supported storage drive typesHDD & SSD
  • USB 2.0 connectors2
See all specifications

Overview

Speed
Wi-Fi 6E (802.11ax)
Colour
Black, Red
Processor manufacturer
Intel
Supported memory types
DDR5-SDRAM
Supported storage drive types
HDD & SSD
USB 2.0 connectors
2
Brand
ASUS
Category
Motherboard
Model
ROG MAXIMUS Z790 HERO EVA-02 EDITION
Part numbers
90MB1FL0-M0EAY0, 90MB1FL0-M0AAY0
EAN / UPC
4711387306031
Also known as
ASUS ROG MAXIMUS Z790 HERO EVA-02 EDITION Intel Z790 LGA 1700 ATX

Specifications

76 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1700
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Supported processor socketsLGA 1700

Memory

Supported memory typesDDR5-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800 MHz
Supported memory clock speed (max)7800 MHz
Maximum internal memory192 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
Number of HDDs supported6
Number of storage drives supported11
RAID supportYes
RAID levels0, 1, 5, 10

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of SATA III connectors6
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors4
EPS power connector (8-pin)Yes
12V power connectorYes
RGB LED pin headerYes

Rear panel I/O ports

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
VGA (D-Sub) ports quantity0
HDMI ports quantity1
HDMI version2.1
DVI-D ports quantity0
S/PDIF out portYes
Thunderbolt ports quantity2

Network

Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
Wake-on-LAN readyYes
Wi-FiYes
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Wi-Fi standards802.11a, 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
BluetoothYes
Bluetooth version5.3

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel Z790
Audio chipRealtek ALC4082
Audio output channels7.1 channels
Product colourBlack, Red
Cooling typePassive
Power source typeATX
Windows operating systems supportedWindows 10 x64, Windows 11

Expansion slots

PCI Express x16 (Gen 4.x) slots1
PCI Express x16 (Gen 5.x) slots2
Number of M.2 (M) slots5

BIOS

BIOS typeUEFI AMI
BIOS memory size256 Mbit
Clear CMOS buttonYes

Packaging data

Package width370 mm
Package depth312 mm
Package height108 mm
Package weight4.56 kg

Weight & dimensions

Width305 mm
Depth244 mm

Packaging content

Cables includedSATA
User guideYes
Drivers includedYes

Other features

Back-to-BIOS buttonYes
