ASUS ROG CROSSHAIR X670E GENE

ASUS ROG CROSSHAIR X670E GENE

Model ROG CROSSHAIR X670E GENEPart no. 90MB1B80-M0EAY0EAN 4711081894537

75 specifications
  • SpeedWi-Fi 6E (802.11ax)
  • Processor manufacturerAMD
  • Supported memory typesDDR5-SDRAM
  • Supported storage drive typesHDD & SSD
  • Parallel processing technology supportNot supported
  • USB 2.0 connectors2
See all specifications

Overview

Speed
Wi-Fi 6E (802.11ax)
Processor manufacturer
AMD
Supported memory types
DDR5-SDRAM
Supported storage drive types
HDD & SSD
Parallel processing technology support
Not supported
USB 2.0 connectors
2
Brand
ASUS
Category
Motherboard
Model
ROG CROSSHAIR X670E GENE
Part numbers
90MB1B80-M0EAY0, 90MB1B80-M0UAY0
EAN / UPC
4711081894537, 195553894531
Also known as
ASUS ROG CROSSHAIR X670E GENE AMD X670 Socket AM5 micro ATX

Specifications

75 specifications in 14 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM5
Supported processor socketsSocket AM5

Memory

Supported memory typesDDR5-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
Supported memory clock speed (max)6400 MHz
Maximum internal memory64 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
RAID supportYes
RAID levels0, 1, 10

Graphics

Parallel processing technology supportNot supported

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of SATA III connectors4
S/PDIF out connectorYes
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors4
EPS power connector (8-pin)Yes
12V power connectorYes
RGB LED pin headerYes

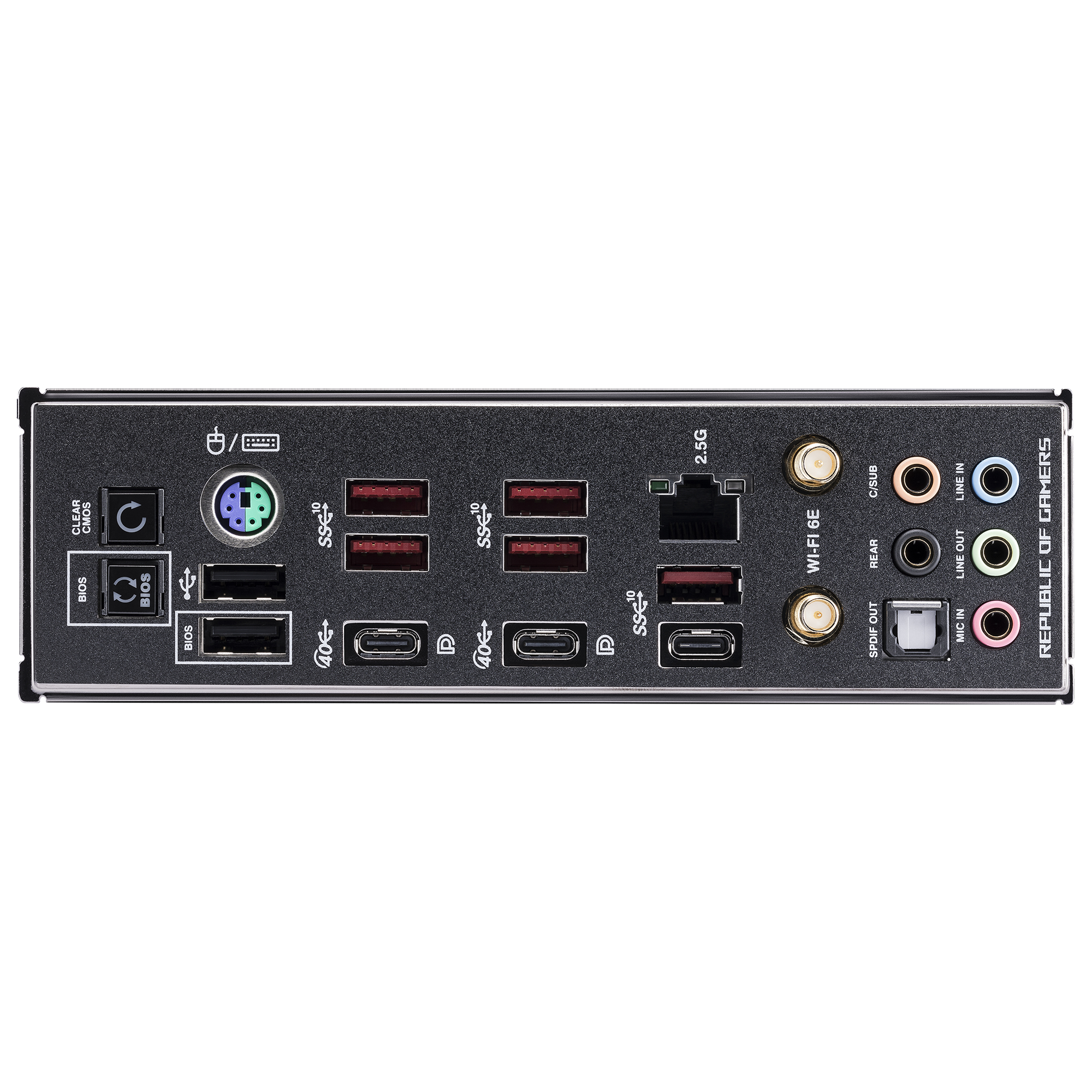

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
USB4 Gen 2x2 ports quantity2
Ethernet LAN (RJ-45) ports1
PS/2 ports quantity1
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs1
Microphone inYes

Network

Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
Wi-FiYes
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
BluetoothYes
Bluetooth version5.3

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Motherboard chipsetAMD X670
Audio chipRealtek ALC4080
Audio output channels7.1 channels
Power source typeATX
Windows operating systems supportedWindows 10 x64, Windows 11 x64

Expansion slots

PCI Express x1 slots1
PCI Express x16 (Gen 5.x) slots1
Number of M.2 (M) slots3

BIOS

BIOS typeUEFI AMI
BIOS memory size256 Mbit
Clear CMOS buttonYes

Packaging data

Package width367 mm
Package depth291 mm
Package height74 mm
Package weight3.08 kg

Weight & dimensions

Width244 mm
Depth244 mm

Packaging content

Cables includedSATA
User guideYes
Drivers includedYes

Other features

Packaging contentCables 1 x RGB extension cable 2 x SATA 6Gb/s cables ROG GEN-Z.2 with Heatsink 1 x ROG GEN-Z.2 with heatsink 1 x M.2 pad for ROG GEN-Z.2 2 x M.2 screw package for ROG GEN-Z.2 ROG True Voltician 1 x ROG True Voltician 4 x cables for ROG True Voltician Additional Cooling Kit 1 x Thermal pad for M.2 Mi
Special featuresROG Exclusive Software - GameFirst VI - ROG CPU-Z - ROG True Voltician - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS® Sound Unbound - BullGuard Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (1 year ful
