ROG Crosshair VIII Formula
Model ROG Crosshair VIII FormulaPart no. 90MB10Z0-M0EAY0EAN 192876386644
69 specifications
- Processor manufacturerAMD
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesSATA III
- USB 2.0 connectors0
- Ethernet LANYes
- Component forPC
Overview
- Processor manufacturer
- AMD
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- SATA III
- USB 2.0 connectors
- 0
- Ethernet LAN
- Yes
- Component for
- PC
- Brand
- ASUS
- Category
- Motherboard
- Model
- ROG Crosshair VIII Formula
- Part numbers
- 90MB10Z0-M0EAY0, 90MB10Z0-M0AAY0
- EAN / UPC
- 192876386644, 4718017386647
- Also known as
- ASUS ROG Crosshair VIII Formula AMD X570 Socket AM4 ATX
Specifications
69 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 2000 Series, AMD Ryzen 3000 Series |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC |
| Maximum internal memory | 128 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
| RAID levels | 0, 1, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | 2-Way CrossFireX, 3-Way CrossFireX, 3-Way SLI |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 8 |
| Number of SATA II connectors | 0 |
| Number of Parallel ATA connectors | 0 |
| Audio connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 3 |
| 12V power connector | Yes |
| RGB LED pin header | Yes |

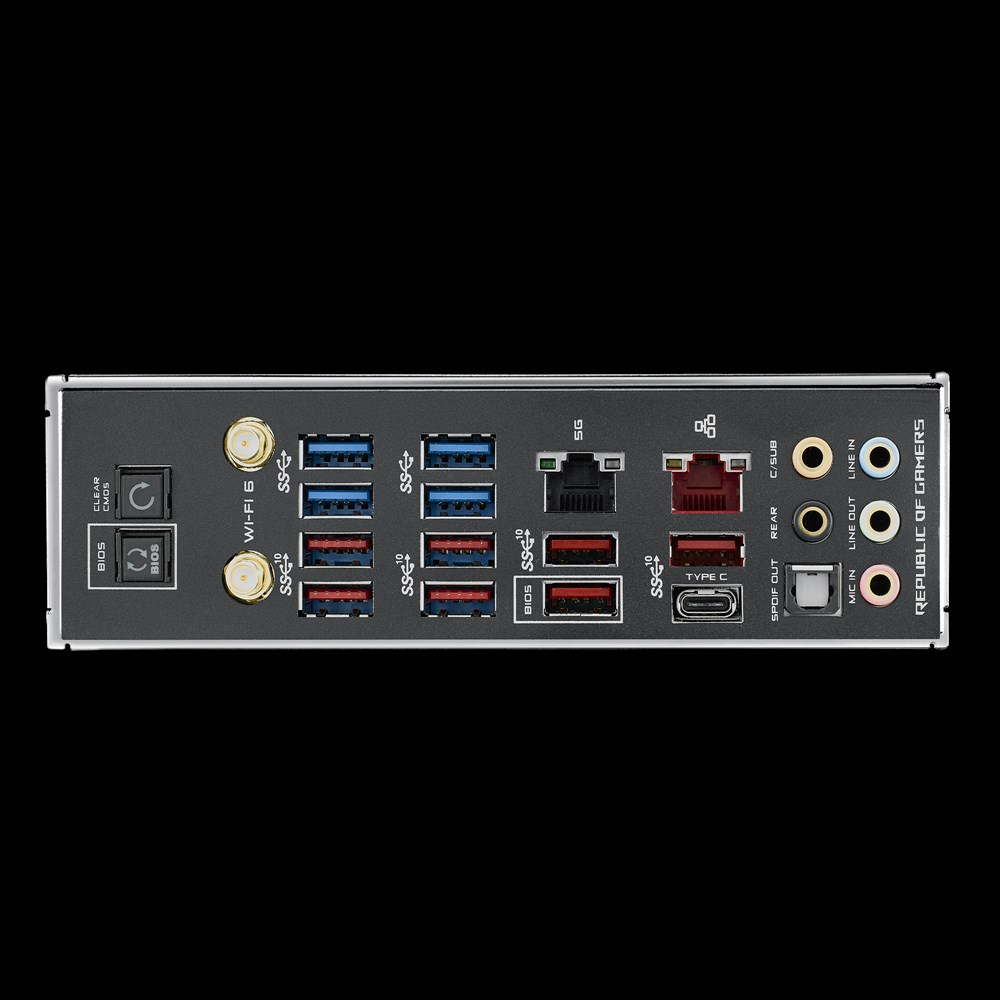

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 8 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| S/PDIF out port | Yes |
| Digital audio optical out | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 5 Gigabit Ethernet |
| LAN controller | Aquantia AQC111C, Intel® I211-AT |
| Wake-on-LAN ready | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X570 |
| Audio chip | SupremeFX S1220A |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64 |
Expansion slots
| Specification | Value |
|---|---|
| Number of M.2 (M) slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 6.2 |
| Clear CMOS button | Yes |
| System Management BIOS (SMBIOS) version | 3.2 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
