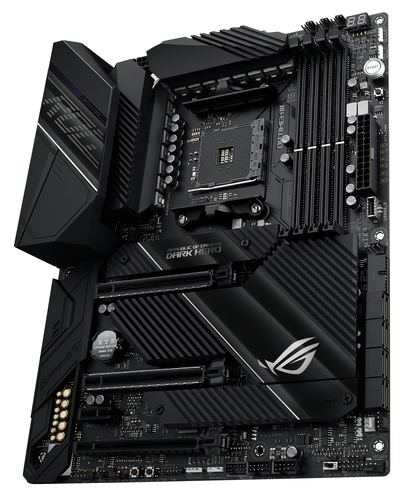

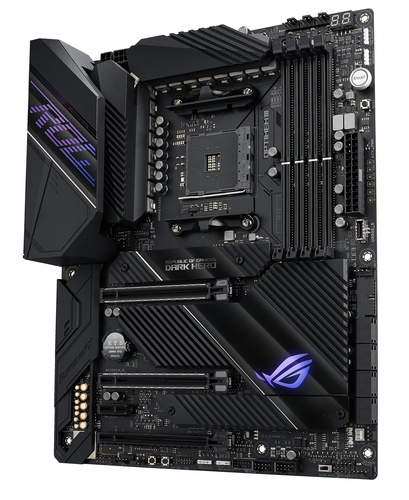

ROG Crosshair VIII Dark Hero
Model ROG Crosshair VIII Dark HeroPart no. 90MB1760-M0AAY0EAN 4718017961615
95 specifications
- SpeedWi-Fi 6 (802.11ax)
- Weight2.5 kg
- ColourBlack
- Processor manufacturerAMD
- Supported memory typesDDR4-SDRAM
- Supported storage drive typesHDD & SSD
Overview
- Speed
- Wi-Fi 6 (802.11ax)
- Weight
- 2.5 kg
- Colour
- Black
- Processor manufacturer
- AMD
- Supported memory types
- DDR4-SDRAM
- Supported storage drive types
- HDD & SSD
- Brand
- ASUS
- Category
- Motherboard
- Model
- ROG Crosshair VIII Dark Hero
- Part numbers
- 90MB1760-M0AAY0, 90MB1760-M0EAY0
- EAN / UPC
- 4718017961615, 192876961612, 192876961629, 4718017961622
- Also known as
- ASUS ROG Crosshair VIII Dark Hero AMD X570 Socket AM4 ATX
Specifications
95 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen™ 3, AMD Ryzen™ 5 |
| Supported processor sockets | Socket AM4 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200,3400,3466,3800,3866,4000,4133,4266,4333,4400,4600,4800,4866 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 8 |
| Number of storage drives supported | 10 |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | 2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX |
| On-board graphics card | No |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| USB 3.2 Gen 2x2 connectors | 0 |
| Number of SATA III connectors | 8 |
| Number of SATA II connectors | 0 |
| Number of SATA connectors | 0 |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 7 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 0 |
| USB4 Gen 2x2 ports quantity | 0 |
| USB4 Gen 3x2 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| PS/2 ports quantity | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 0 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet, Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6 AX200 |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X570 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 0 |
| PCI Express x1 (Gen 2.x) slots | 0 |
| PCI Express x1 (Gen 3.x) slots | 0 |
| PCI Express x1 (Gen 4.x) slots | 1 |
| PCI Express x4 slots | 0 |
| PCI Express x4 (Gen 1.x) slots | 0 |
| PCI Express x4 (Gen 2.x) slots | 0 |
| PCI Express x4 (Gen 4.x) slots | 0 |
| PCI Express x8 slots | 0 |
| PCI Express x8 (Gen 1.x) slots | 0 |
| PCI Express x16 slots | 0 |
| PCI Express x16 (Gen 2.x) slots | 0 |
| PCI Express x16 (Gen 3.x) slots | 0 |
| PCI Express x16 (Gen 4.x) slots | 3 |
| PCI Express x16 (Gen 5.x) slots | 0 |
| PCI Express x16 (Gen 3.x) @ dual x8/x8 mode slots | 0 |
| Mini PCI Express (Gen 1.x) slots | 0 |
| Mini PCI Express (Gen 2.x) slots | 0 |
| Mini PCI Express slot (full length) | 0 |
| Mini PCI Express slot (half-length) | 0 |
| Mini PCI Express slots | 0 |
| PCI slots | 0 |
| PCI-X slots | 0 |
| Number of M.2 (M) slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS button | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
| Height | 108 mm |
Other features
| Specification | Value |
|---|---|
| mSATA ports quantity | 0 |
| Weight | 2.5 kg |
