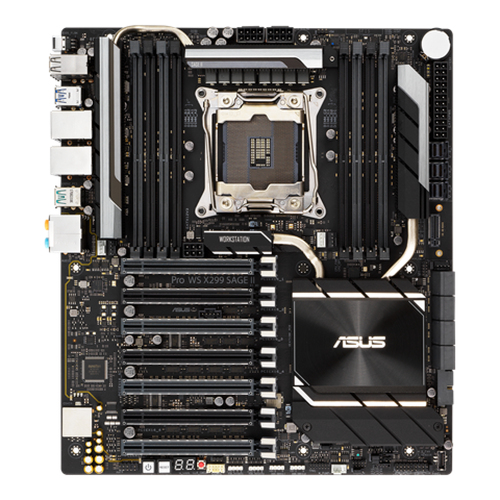

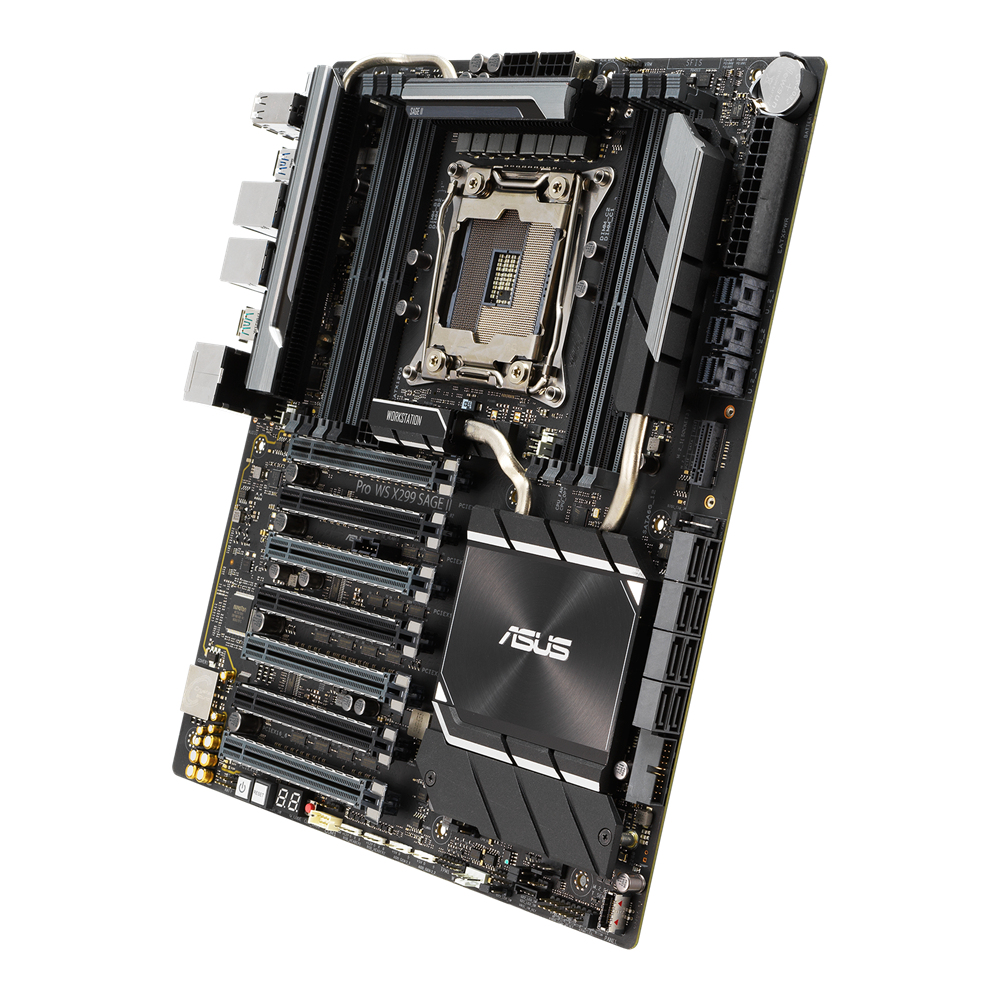

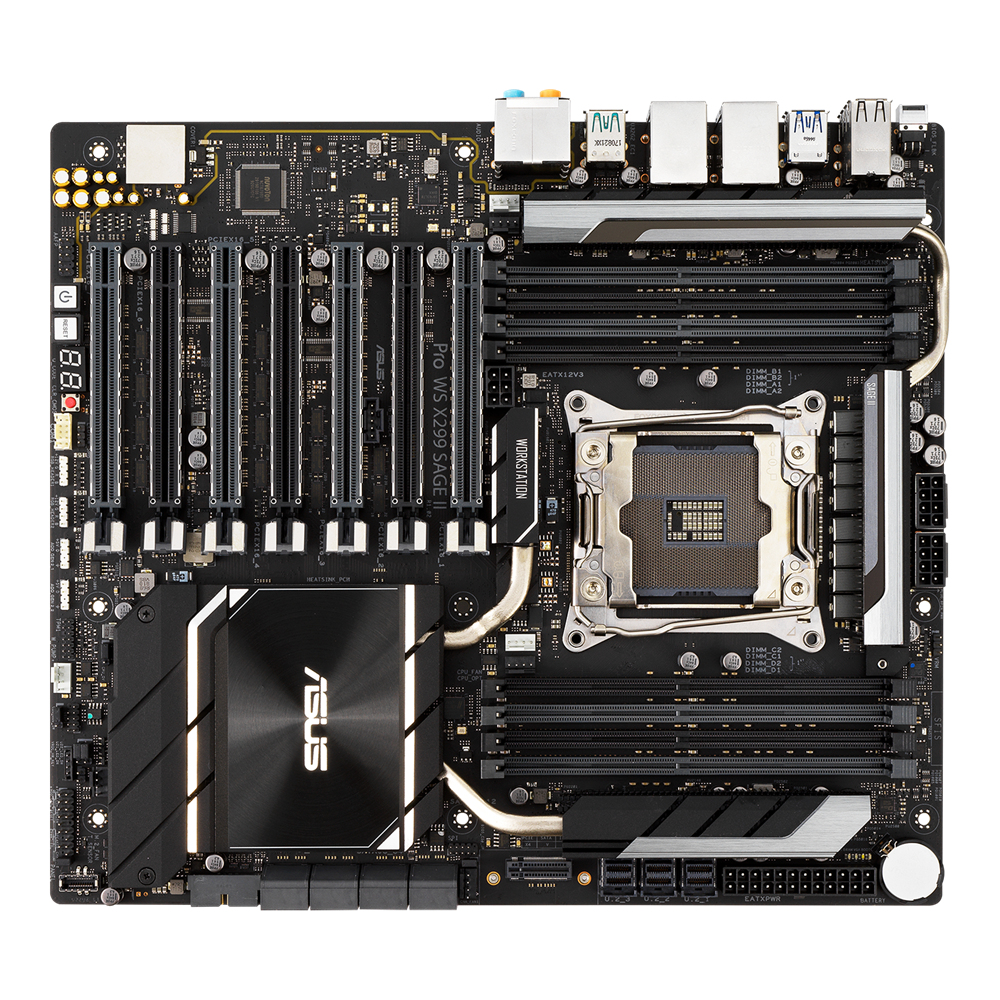

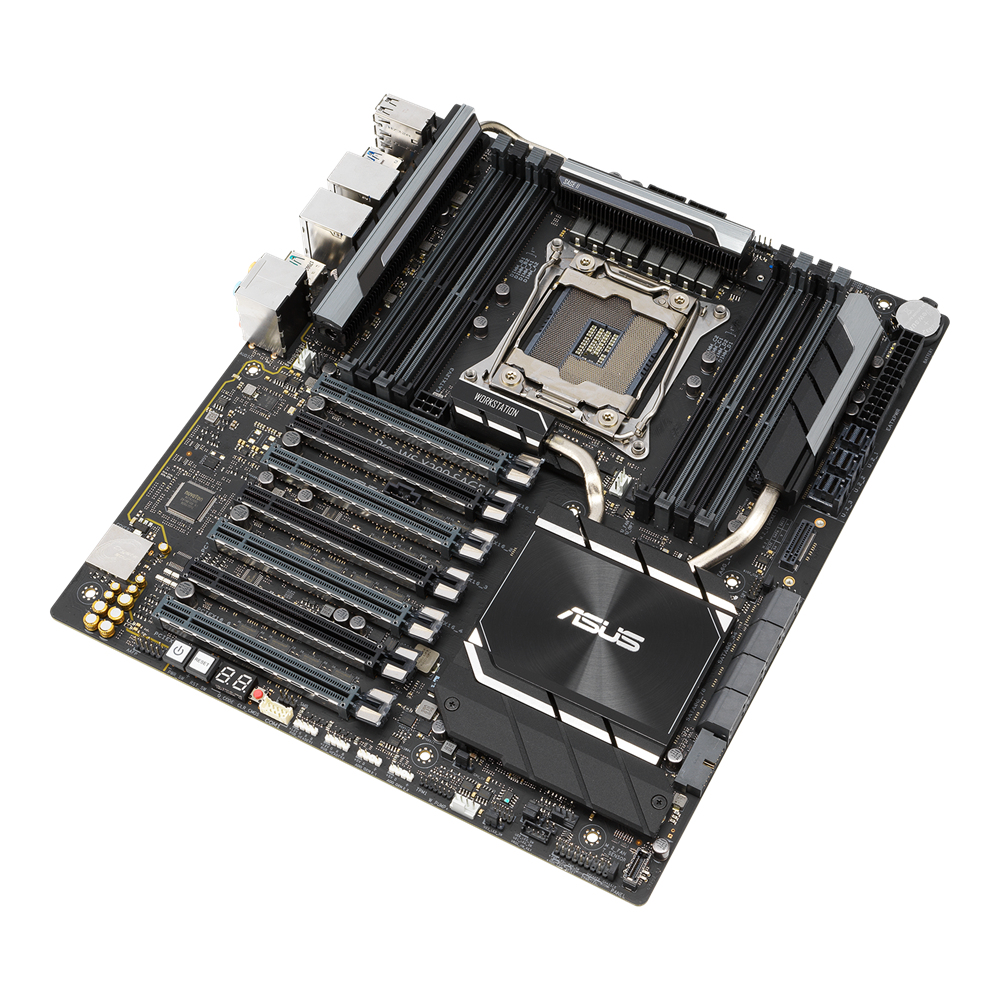

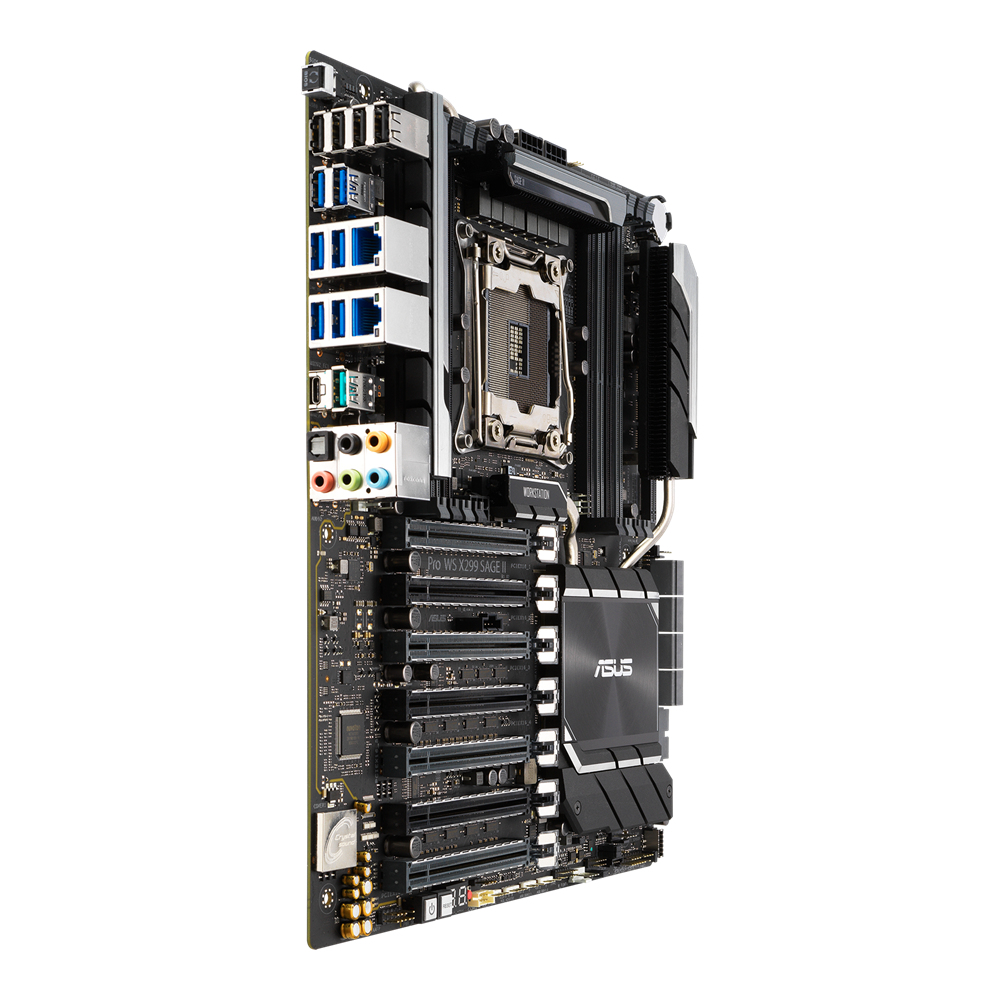

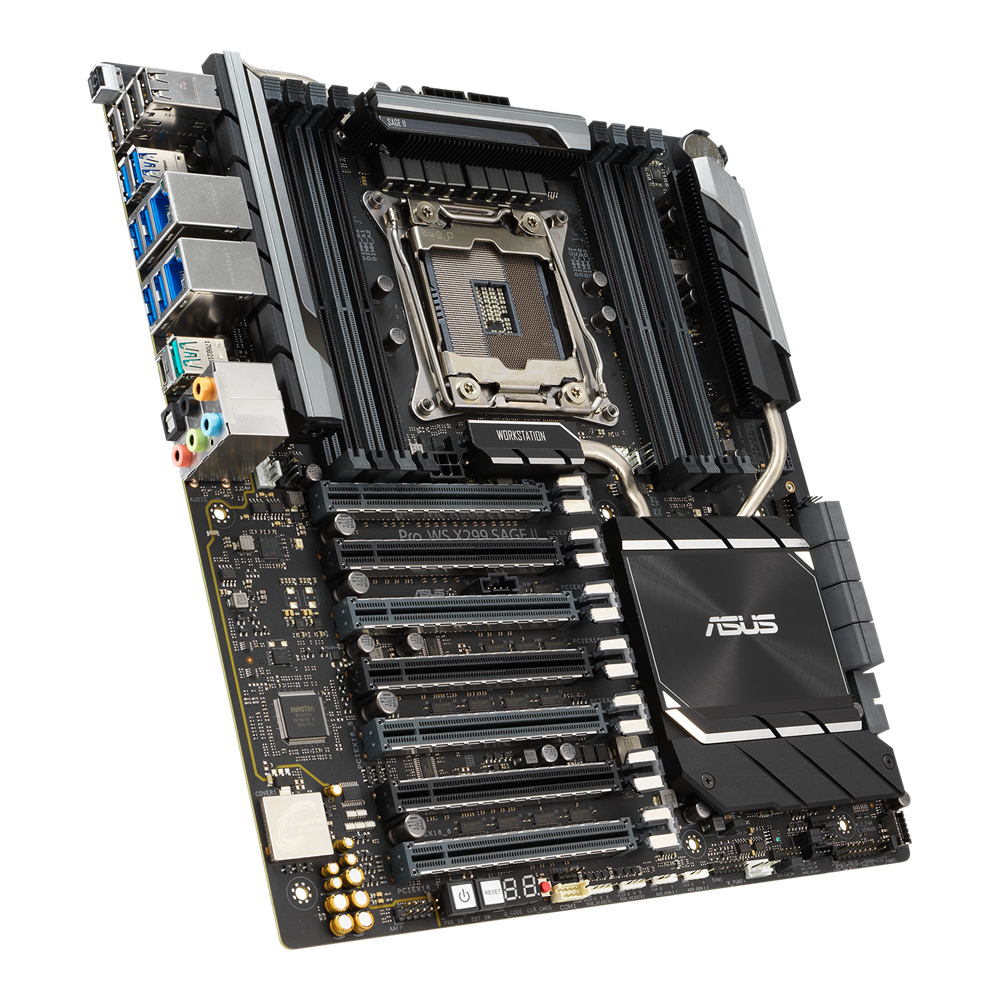

Pro WS X299 SAGE II
Model Pro WS X299 SAGE IIPart no. 90SW00U0-M0AAY0EAN 192876322369
60 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive typesHDD & SSD
- Parallel processing technology support4-Way CrossFireX, 4-Way SLI
- USB 2.0 connectors0
- USB 2.0 ports quantity4
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive types
- HDD & SSD
- Parallel processing technology support
- 4-Way CrossFireX, 4-Way SLI
- USB 2.0 connectors
- 0
- USB 2.0 ports quantity
- 4
- Brand
- ASUS
- Category
- Motherboard
- Model
- Pro WS X299 SAGE II
- Part numbers
- 90SW00U0-M0AAY0, 90SW00U0-M0EAY0
- EAN / UPC
- 192876322369, 4718017322362
- Also known as
- ASUS Pro WS X299 SAGE II Intel® X299 LGA 2066 (Socket R4) CEB
Specifications
60 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 2066 (Socket R4) |
| Compatible processor series | Intel® Core™ X-series |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 8 |
| Memory slots type | DIMM |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2400,2666,2933,3600,4000,4133,4200,4266 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | SATA |
| Number of storage drives supported | 13 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | 4-Way CrossFireX, 4-Way SLI |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 8 |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 2 |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| Number of COM connectors | 1 |
| Number of water pump connectors | 1 |
| TPM connector | Yes |
| Thunderbolt headers | 1 |
| RGB LED pin header | Yes |
| Number of RGB LED pin headers | 3 |

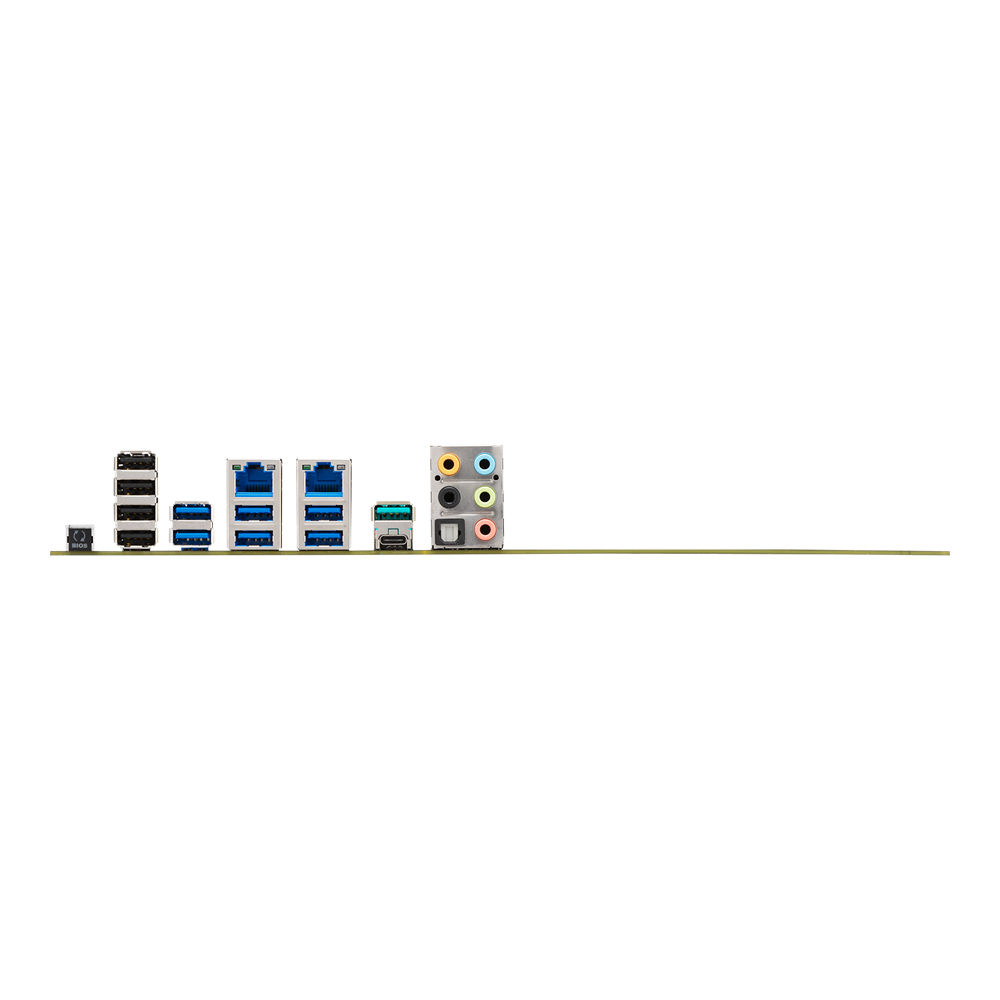

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| PS/2 ports quantity | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| LAN controller | Intel I225-LM |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | Workstation |
| Motherboard form factor | CEB |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® X299 |
| Audio output channels | 7.1 channels |
| Compatible operating systems | Windows 10 64-bit |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 3.x) slots | 7 |
| Number of M.2 (M) slots | 2 |
BIOS
| Specification | Value |
|---|---|
| Clear CMOS button | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 267 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
