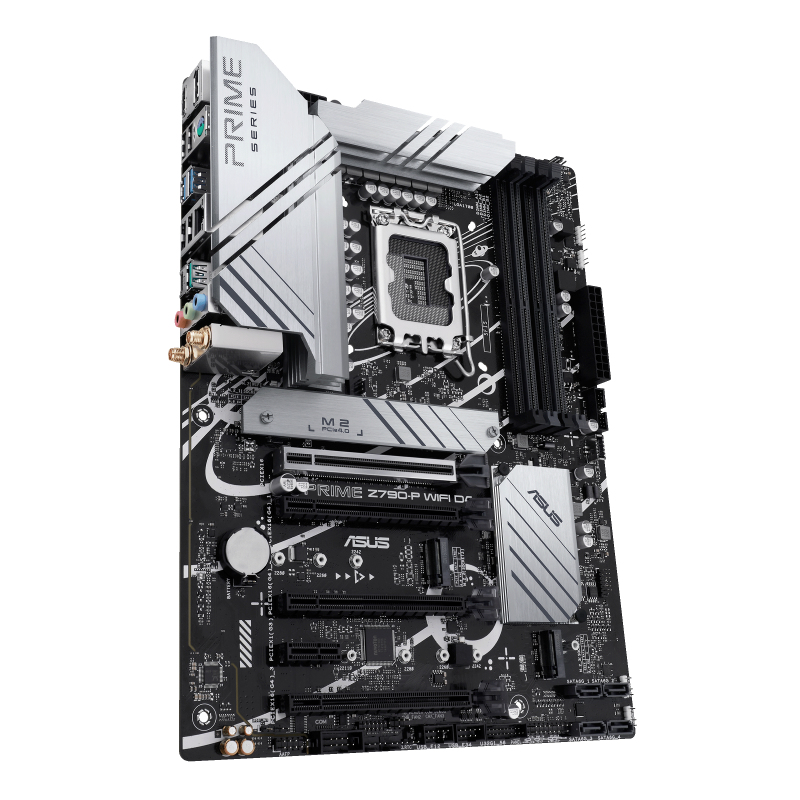

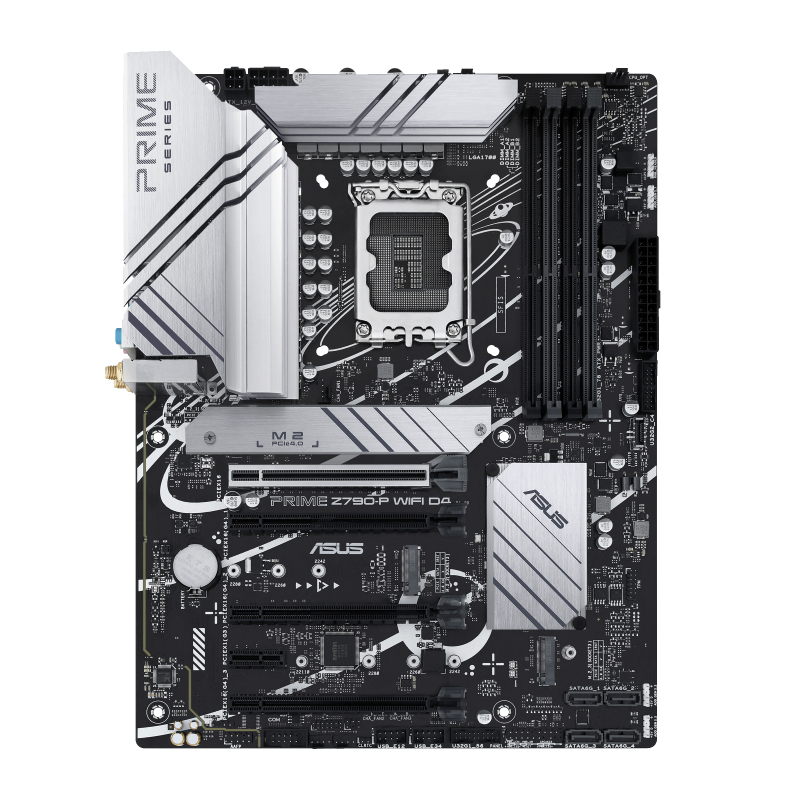

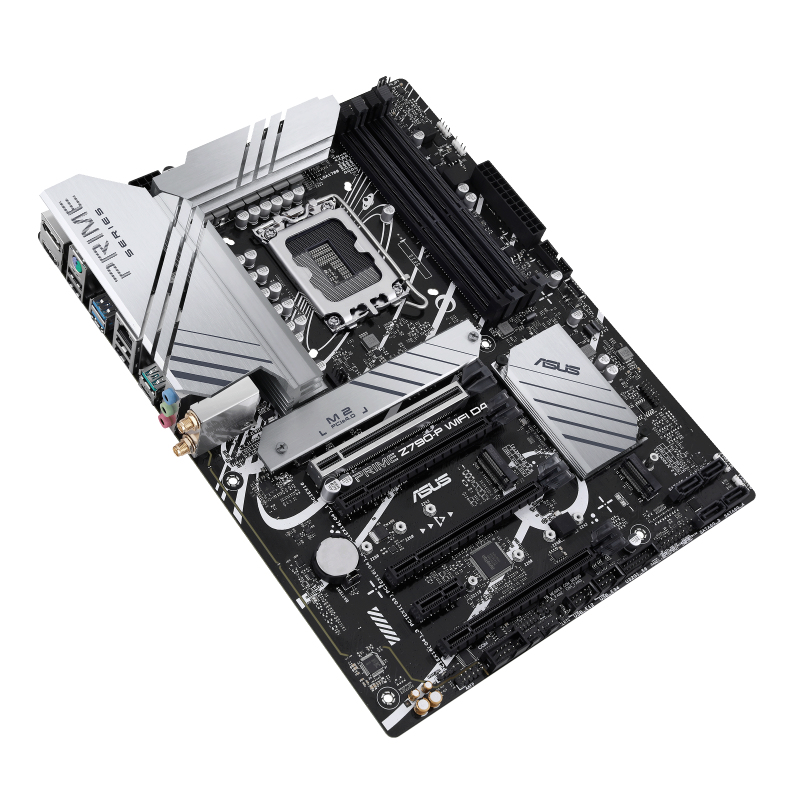

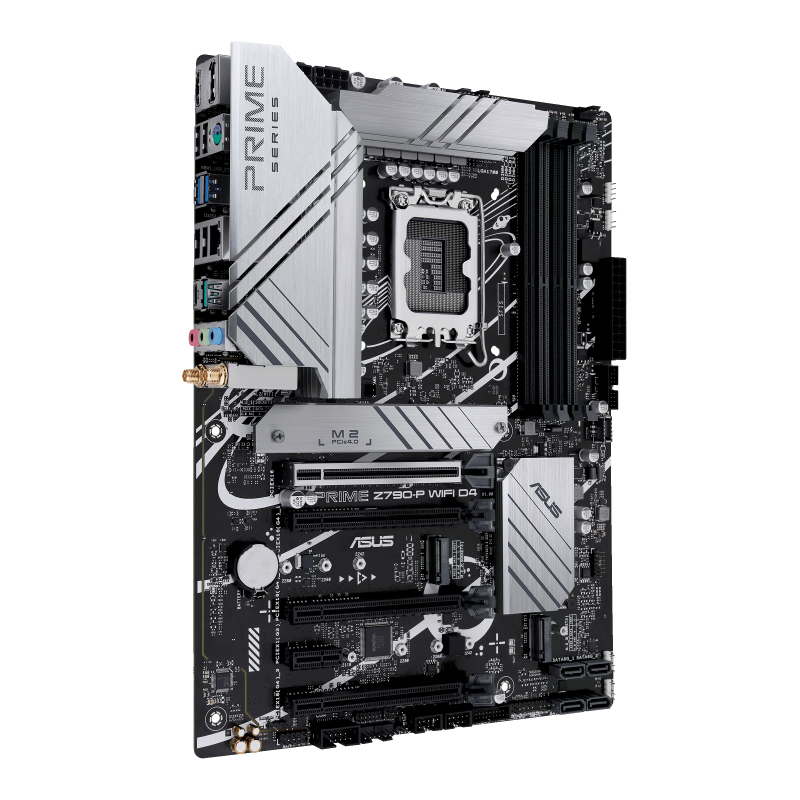

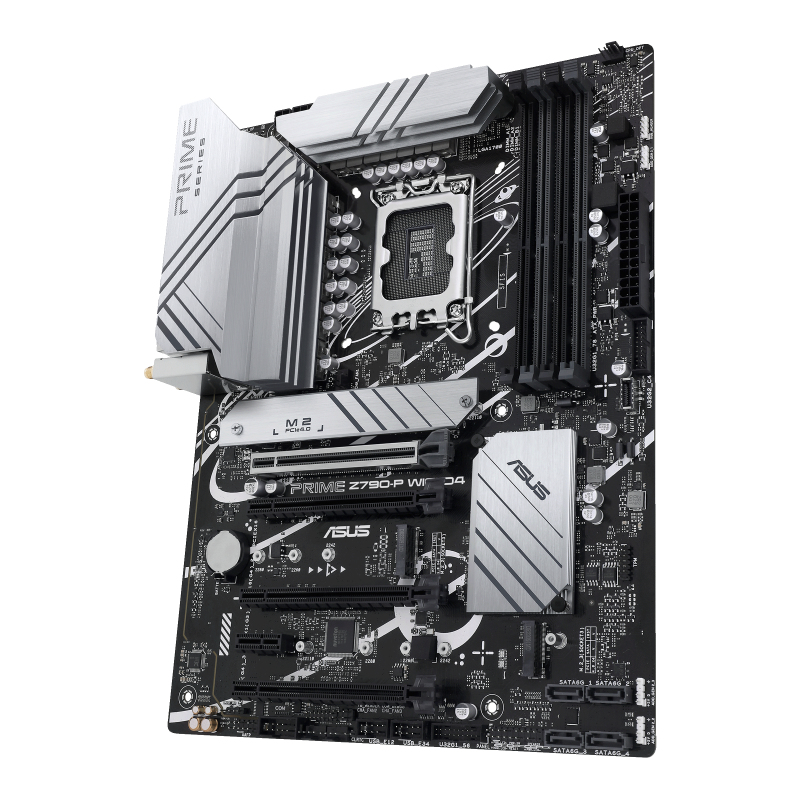

PRIME Z790-P WIFI D4-CSM
Model PRIME Z790-P WIFI D4-CSMPart no. 90MB1DB0-M0UAYC
72 specifications
- SpeedWi-Fi 6 (802.11ax)
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive typesHDD & SSD
- Parallel processing technology supportNot supported
- USB 2.0 connectors2
Overview
- Speed
- Wi-Fi 6 (802.11ax)
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive types
- HDD & SSD
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 2
- Brand
- ASUS
- Category
- Motherboard
- Model
- PRIME Z790-P WIFI D4-CSM
- Part number
- 90MB1DB0-M0UAYC
- Also known as
- ASUS PRIME Z790-P WIFI D4-CSM Intel Z790 LGA 1700 ATX
Specifications
72 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Supported processor sockets | LGA 1700 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,3866,4000,4133,4266,4400,4500,4600,4700,4800,5000,5066,5133,5333 MHz |
| Supported memory clock speed (max) | 5333 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| Number of COM connectors | 1 |
| TPM connector | Yes |
| Thunderbolt headers | 1 |
| RGB LED pin header | Yes |

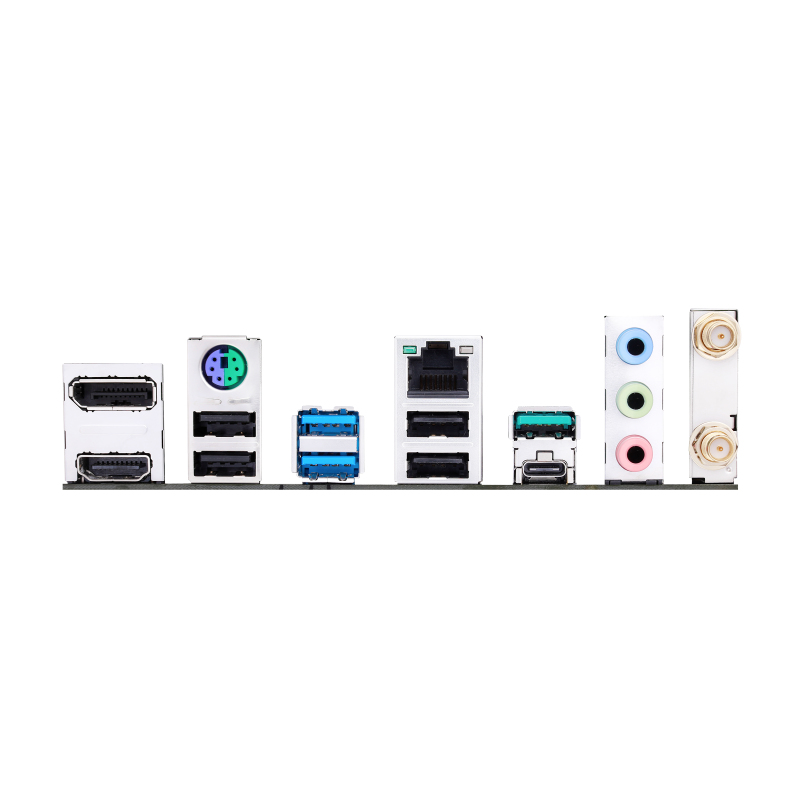

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z790 |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 3 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 3 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 192 Mbit |
| Clear CMOS button | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 234 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
