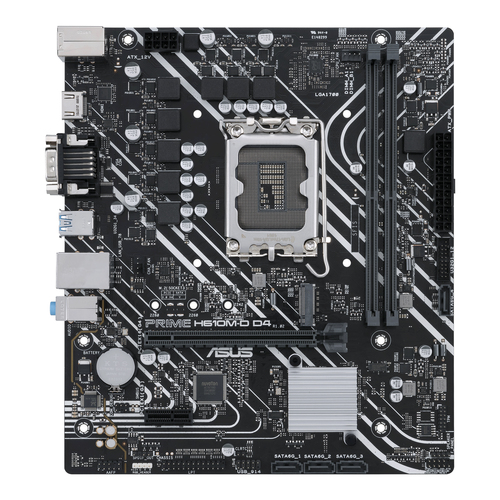

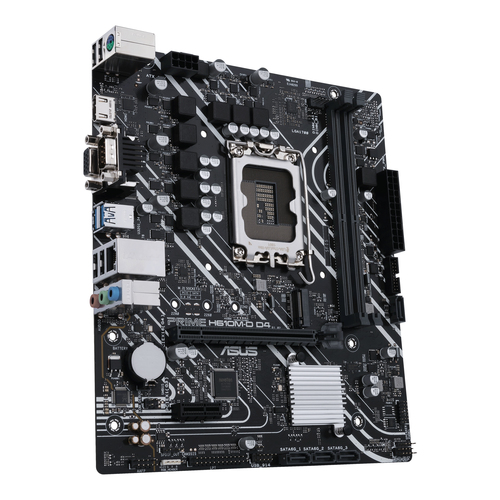

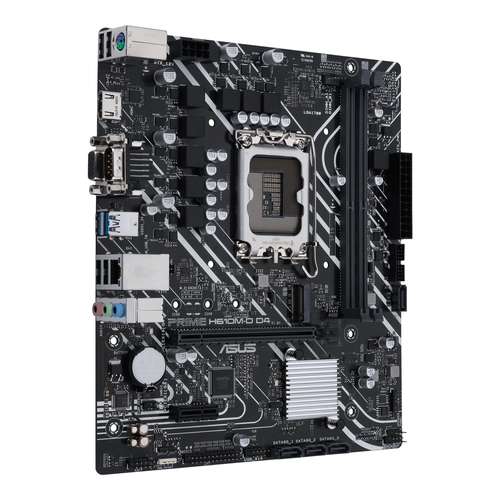

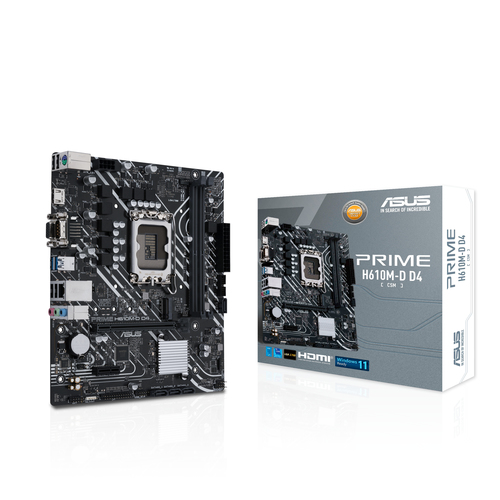

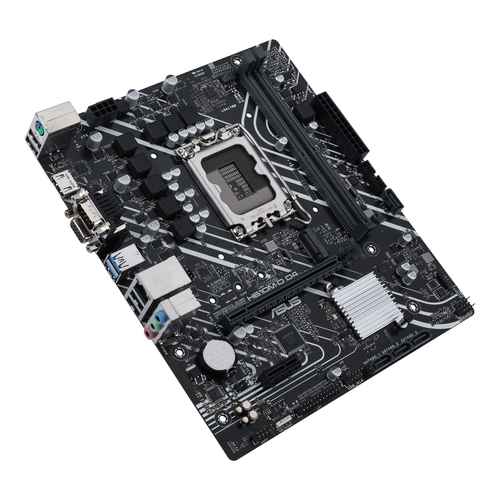

PRIME H610M-D D4-CSM
Model PRIME H610M-D D4-CSMEAN 4711081540519
52 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive typesHDD & SSD
- USB 2.0 connectors1
- USB 2.0 ports quantity4
- Ethernet LANYes
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive types
- HDD & SSD
- USB 2.0 connectors
- 1
- USB 2.0 ports quantity
- 4
- Ethernet LAN
- Yes
- Brand
- ASUS
- Category
- Motherboard
- Model
- PRIME H610M-D D4-CSM
- Part number
- PRIME H610M-D D4-CSM
- EAN / UPC
- 4711081540519
- Also known as
- ASUS PRIME H610M-D D4-CSM motherboard Intel H610 LGA 1700 micro ATX
Specifications
52 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2400,2600,2800,2933,3000,3200 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 5 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Yes |
| Audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| EPS power connector (8-pin) | Yes |
| TPM connector | Yes |

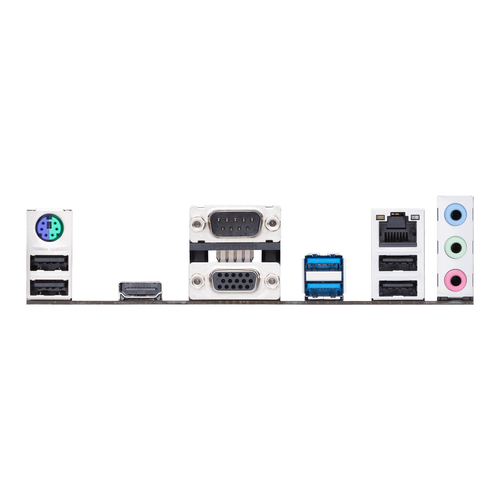

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| COM ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H610 |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 234 mm |
| Depth | 203 mm |
