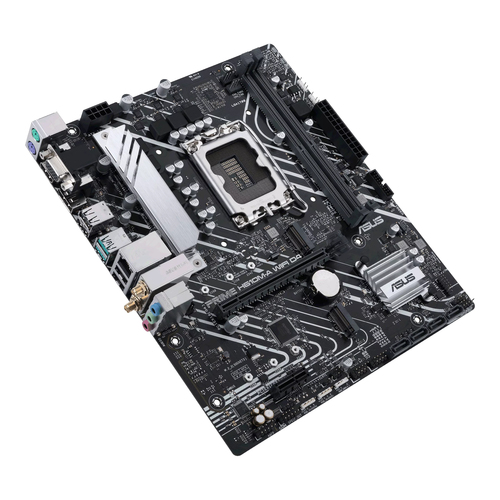

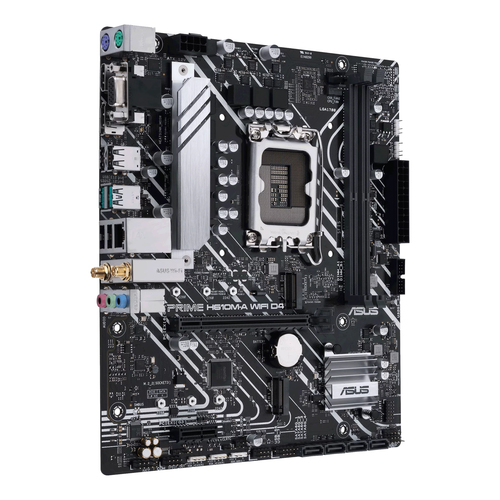

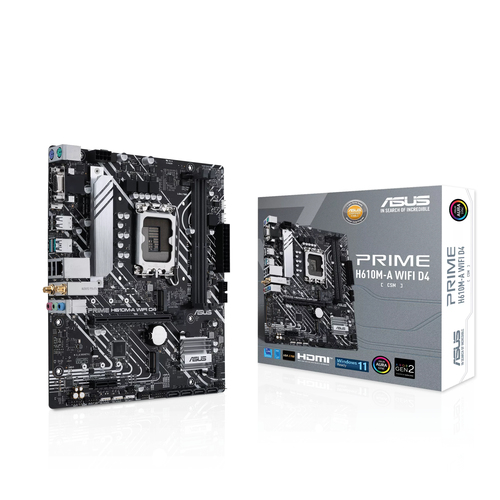

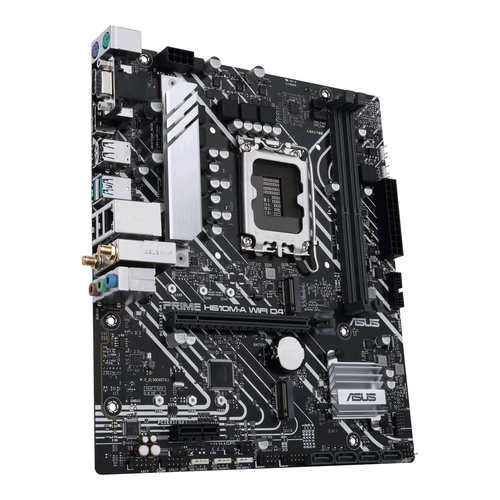

ASUS PRIME H610M-A WIFI D4-CSM

ASUS PRIME H610M-A WIFI D4-CSM

Model PRIME H610M-A WIFI D4-CSM

75 specifications
  • SpeedWi-Fi 5 (802.11ac)
  • Processor manufacturerIntel
  • Supported memory typesDDR5-SDRAM
  • Supported storage drive typesHDD & SSD
  • Parallel processing technology supportNot supported
  • USB 2.0 connectors2
See all specifications

Overview

Speed
Wi-Fi 5 (802.11ac)
Processor manufacturer
Intel
Supported memory types
DDR5-SDRAM
Supported storage drive types
HDD & SSD
Parallel processing technology support
Not supported
USB 2.0 connectors
2
Brand
ASUS
Category
Motherboard
Model
PRIME H610M-A WIFI D4-CSM
Part number
PRIME H610M-A WIFI D4-CSM
Also known as
ASUS PRIME H610M-A WIFI D4-CSM motherboard Intel H610 LGA 1700 micro ATX

Specifications

75 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1700
Compatible processor seriesIntel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th
Supported processor socketsLGA 1700

Memory

Supported memory typesDDR5-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds2133,2400,2666,2800,2933,3000,3200 MHz
Maximum internal memory64 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
Number of HDDs supported4
Number of storage drives supported6

Graphics

Parallel processing technology supportNot supported

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
USB 3.2 Gen 2x2 connectors1
Number of SATA III connectors4
S/PDIF out connectorYes
Audio connectorYes
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of CPU fan connectors1
Number of chassis fan connectors2
EPS power connector (8-pin)Yes
12V power connectorYes
Number of COM connectors1
TPM connectorYes
RGB LED pin headerYes

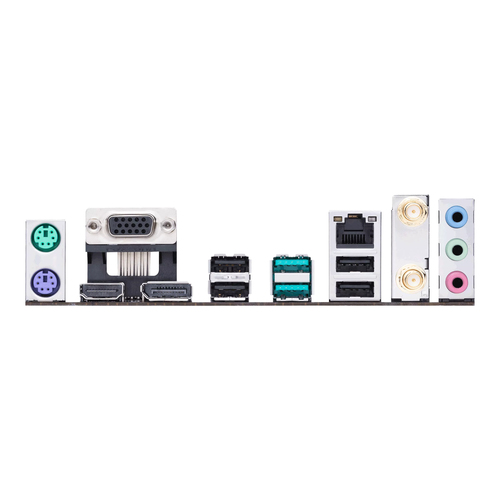

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
PS/2 ports quantity2
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity0
DisplayPorts quantity1
Microphone inYes
WiFi-AP antenna jack1

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Wi-FiYes
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Wi-Fi standardsWi-Fi 5 (802.11ac)
BluetoothYes
Bluetooth version5.0

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel H610
Audio output channels7.1 channels
Windows operating systems supportedWindows 10 x64, Windows 11 x64

Expansion slots

PCI Express x16 (Gen 3.x) slots1
PCI Express x16 (Gen 4.x) slots1
Number of M.2 (M) slots2
1st M.2 largest key size2280
1st M.2 highest PCI Express generation3.0
2nd M.2 largest key size2280
2nd M.2 highest PCI Express generation3.0

BIOS

BIOS typeUEFI AMI
BIOS memory size128 Mbit

Weight & dimensions

Width244 mm
Depth211 mm

Packaging content

Antenna includedYes
Cables includedSATA
Screws includedYes
