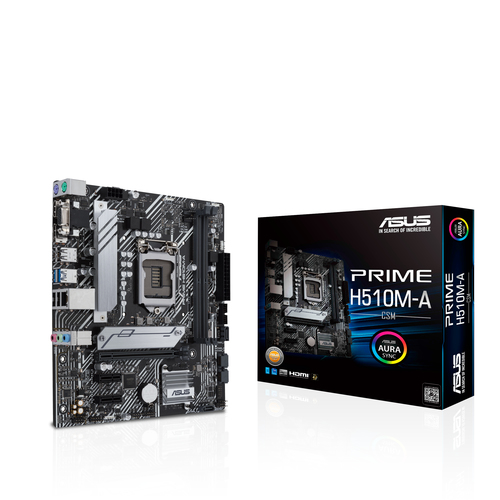

PRIME H510M-A/CSM
Model PRIME H510M-A/CSMEAN 195553128490
29 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesM.2, SATA III
- USB 2.0 connectors2
- USB 2.0 ports quantity4
- Wi-FiNo
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- M.2, SATA III
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 4
- Wi-Fi
- No
- Brand
- ASUS
- Category
- Motherboard
- Model
- PRIME H510M-A/CSM
- Part number
- PRIME H510M-A/CSM
- EAN / UPC
- 195553128490
- Also known as
- ASUS PRIME H510M-A/CSM motherboard Intel H510 LGA 1200 (Socket H5) micro ATX
Specifications
29 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1200 (Socket H5) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3200 MHz |
| Maximum internal memory | 64 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | M.2, SATA III |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| PS/2 ports quantity | 2 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 3 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H510 |
| Audio chip | Realtek ALC887 / Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
| BIOS memory size | 128 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 226 mm |
| Depth | 211 mm |
