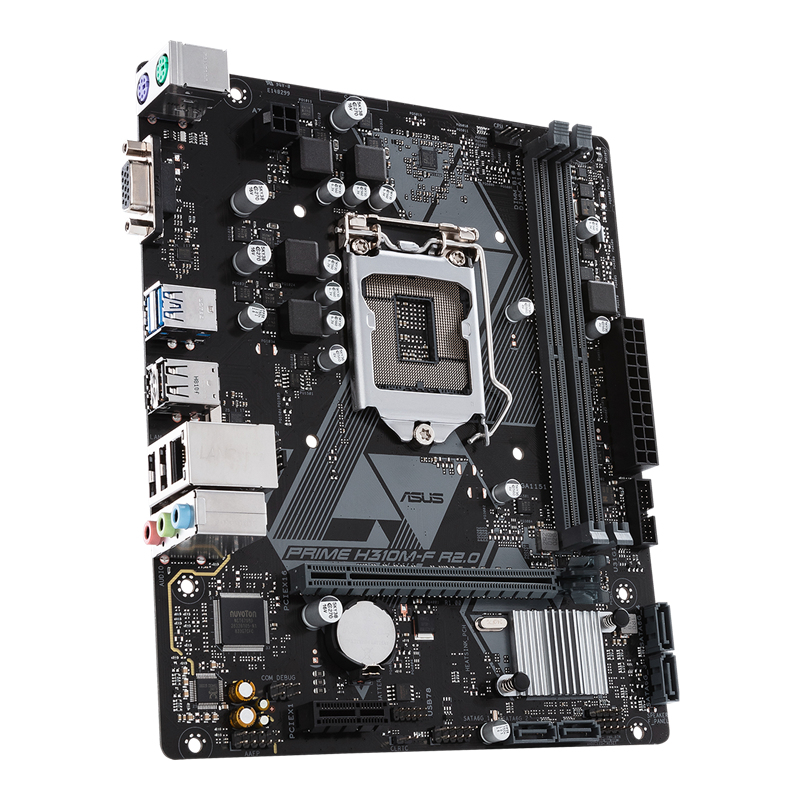

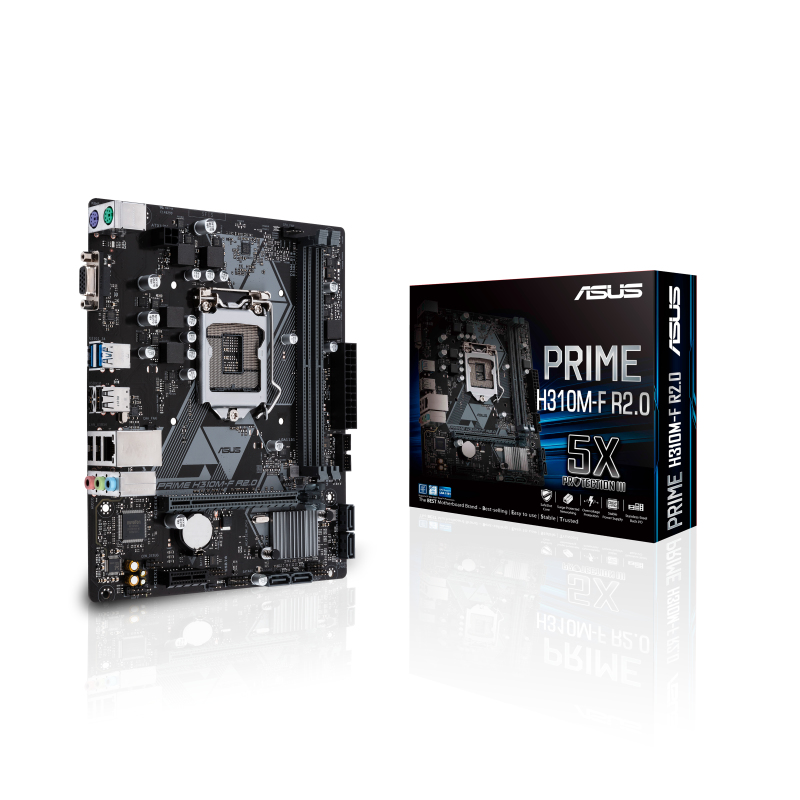

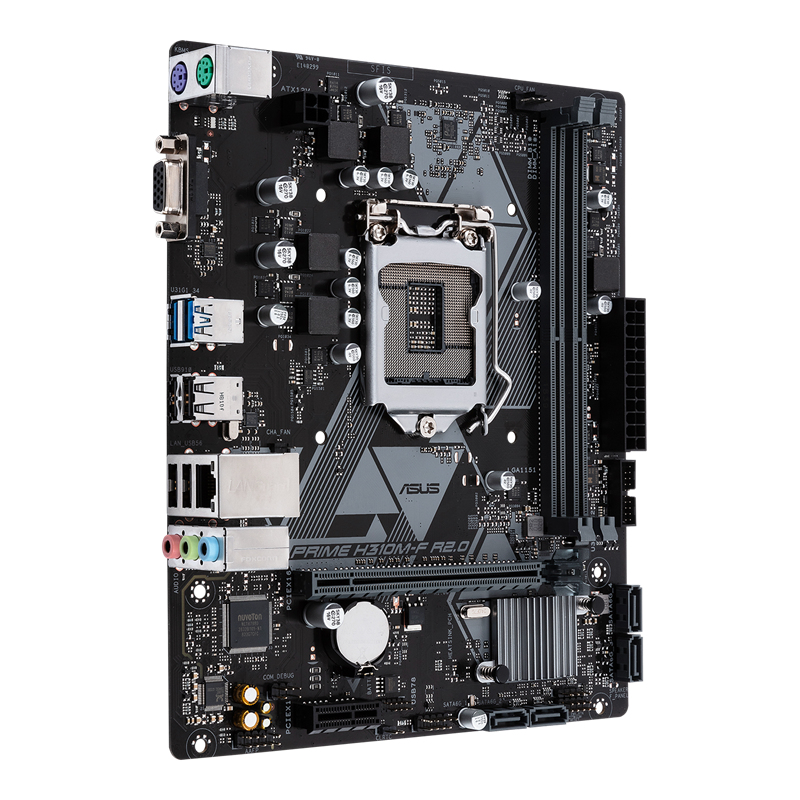

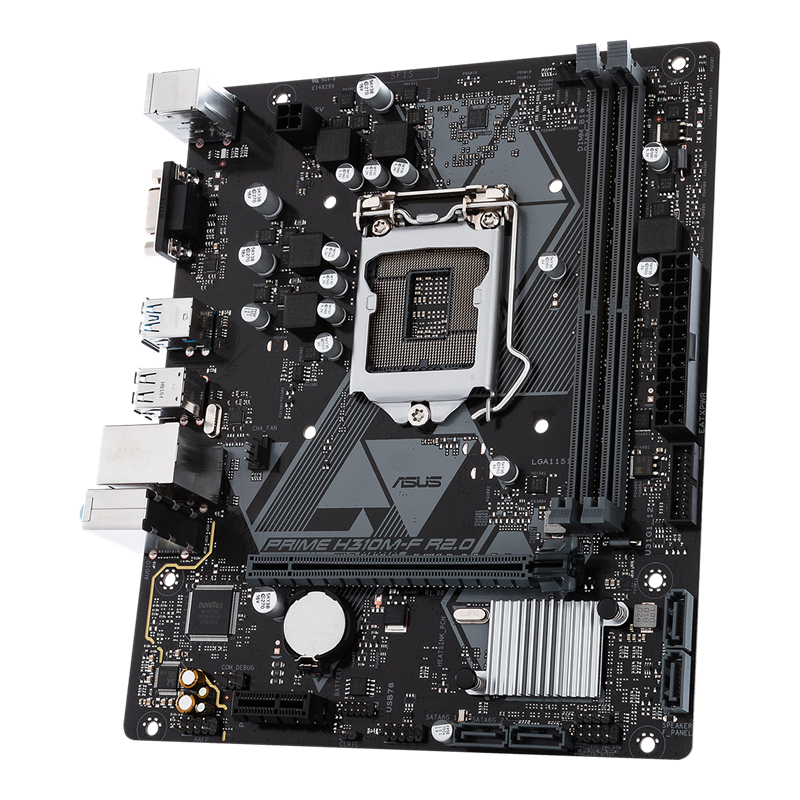

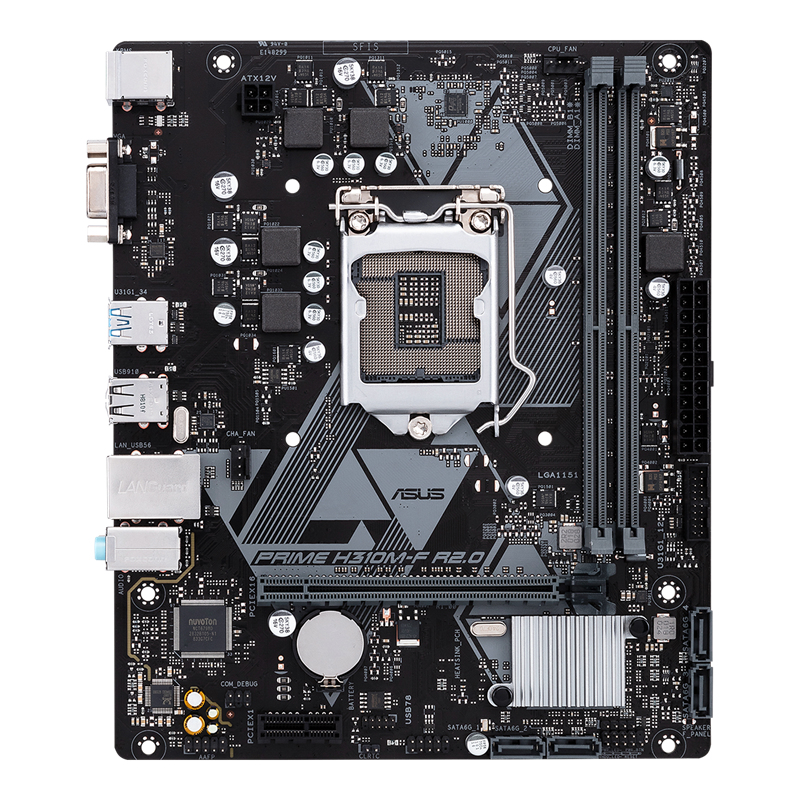

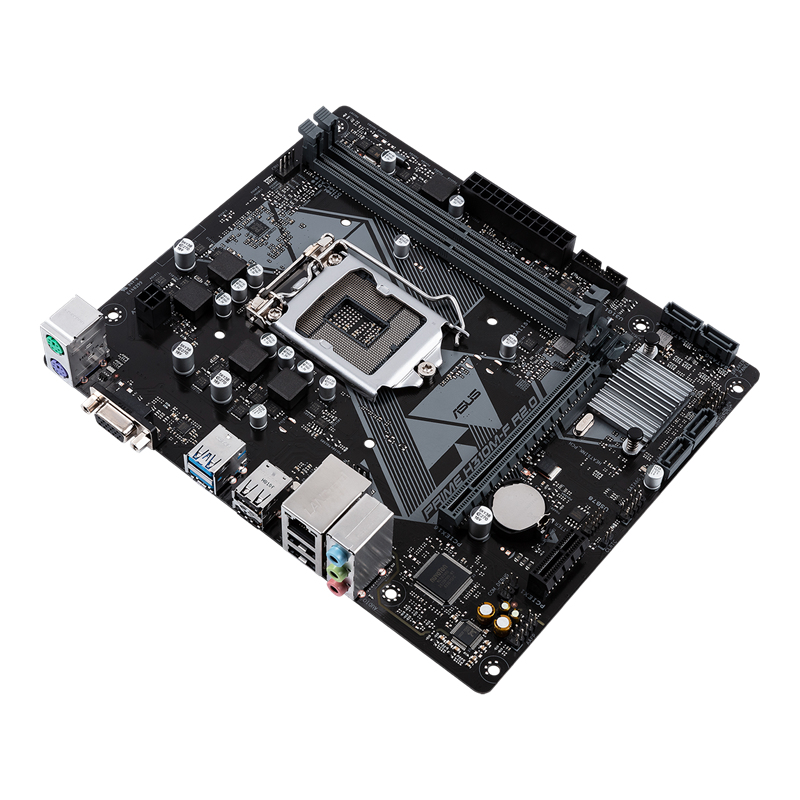

PRIME H310M-F R2.0
Model PRIME H310M-F R2.0EAN 4718017265263
67 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive typesHDD
- Parallel processing technology supportNot supported
- USB 2.0 connectors1
- USB 2.0 ports quantity4
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive types
- HDD
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 1
- USB 2.0 ports quantity
- 4
- Brand
- ASUS
- Category
- Motherboard
- Model
- PRIME H310M-F R2.0
- Part numbers
- PRIME H310M-F R2.0, 90MB1120-M0EAY0
- EAN / UPC
- 4718017265263
- Also known as
- ASUS PRIME H310M-F R2.0 motherboard Intel® H310 LGA 1151 (Socket H4) micro ATX
Specifications
67 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1151 (Socket H4) |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium® |
| Supported processor sockets | LGA 1151 (Socket H4), LGA 1700, Socket FM1 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400,2666 MHz |
| Maximum internal memory | 32 GB |
| Supported memory module capacities | 2GB, 4GB, 8GB, 16GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive types | HDD |
| Supported storage drive interfaces | SATA III |
| Number of HDDs supported | 4 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| Maximum resolution | 1920 x 1200 pixels |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| Audio connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| 12V power connector | Yes |

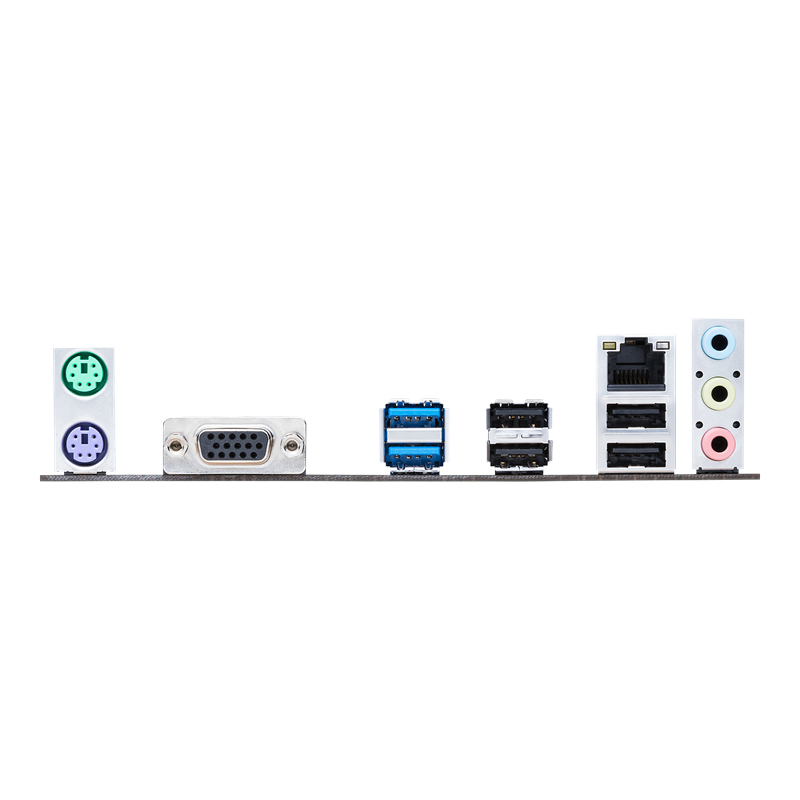

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® H310 |
| Audio chip | Realtek ALC887 / Realtek ALC897 |
| Audio output channels | 8.0 channels |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 2.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 64 Mbit |
| ACPI version | 6.1 |
| Clear CMOS jumper | Yes |
| System Management BIOS (SMBIOS) version | 3.1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 213.4 mm |
| Depth | 177.8 mm |

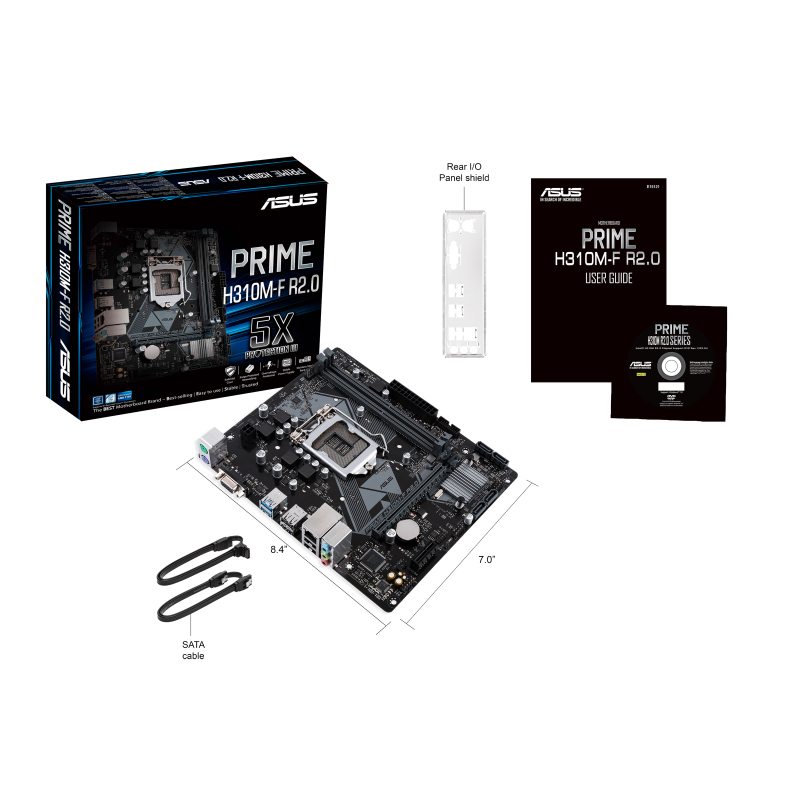

Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
