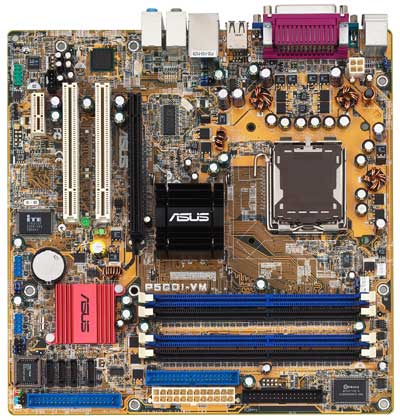

Motherboard P5GD1-VM Intel S775 m-ATX
Model Motherboard P5GD1-VM Intel S775 m-ATXPart no. P5GD1-VMEAN 4719543120514
10 specifications
- Processor socketLGA 775 (Socket T)
- Maximum internal memory4 GB
- Networking featuresIntel 10/100 LAN
- Motherboard form factormicro ATX
Overview
- Processor socket
- LGA 775 (Socket T)
- Maximum internal memory
- 4 GB
- Networking features
- Intel 10/100 LAN
- Motherboard form factor
- micro ATX
- Brand
- ASUS
- Category
- Motherboard
- Model
- Motherboard P5GD1-VM Intel S775 m-ATX
- Part numbers
- P5GD1-VM, 90-MBL0B0-G0EAY0Z
- EAN / UPC
- 4719543120514
- Also known as
- ASUS Motherboard P5GD1-VM Intel S775 m-ATX LGA 775 (Socket T) micro ATX
Specifications
10 specifications in 6 groups
Processor
| Specification | Value |
|---|---|
| Processor socket | LGA 775 (Socket T) |
| Processor system buses supported | 800 MHz |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 4 GB |
Network
| Specification | Value |
|---|---|
| Networking features | Intel 10/100 LAN |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x PCI Express x16 1 x PCI Express x1 2 x PCI |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 245 x 245 |
| Audio output | Realtek ALC 861 |
| I/O ports | 1 x Parallel 1 x Serieel 2 x PS/2 1 x VGA 1 x Audio 1 x RJ45 4 x USB 2.0/1.1 |
