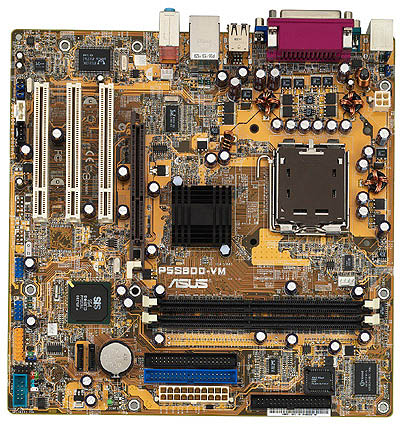

MB ASUS INTEL S775 P5S800-VM m-ATX
Model MB ASUS INTEL S775 P5S800-VM m-ATXPart no. P5S800-VMEAN 4719543123218
10 specifications
- Processor system buses supported800 MHz
- Maximum internal memory2 GB
- Motherboard form factormicro ATX
- Expansion slots1 x AGP8X (1.5V only); 3 x PCI
Overview
- Processor system buses supported
- 800 MHz
- Maximum internal memory
- 2 GB
- Motherboard form factor
- micro ATX
- Expansion slots
- 1 x AGP8X (1.5V only); 3 x PCI
- Brand
- ASUS
- Category
- Motherboard
- Model
- MB ASUS INTEL S775 P5S800-VM m-ATX
- Part number
- P5S800-VM
- EAN / UPC
- 4719543123218
- Also known as
- ASUS MB INTEL S775 P5S800-VM m-ATX micro ATX
Specifications
10 specifications in 6 groups
Processor
| Specification | Value |
|---|---|
| Processor system buses supported | 800 MHz |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 2 GB |
Network
| Specification | Value |
|---|---|
| Networking features | Realtek 10/100 Mbps Ethernet Controller |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x AGP8X (1.5V only); 3 x PCI |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 245 x 245 |
| Audio output | Realtek ALC655 6-channel CODEC |
| Graphics controller | SIS Real 256E Graphics |
| I/O ports | Back Panel I/O Ports: 1 x Parallel 1 x Serial 1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x VGA 1 x Audio I/O 4 x USB 2.0/1.1 1 x RJ45 Internal I/O Connectors: - 2 x USB 2.0 connector support additional 4 USB 2.0 ports - CPU / Chassis FAN connectors - 20-pin ATX Power connector - 4-pin ATX 12V Power connecto |
