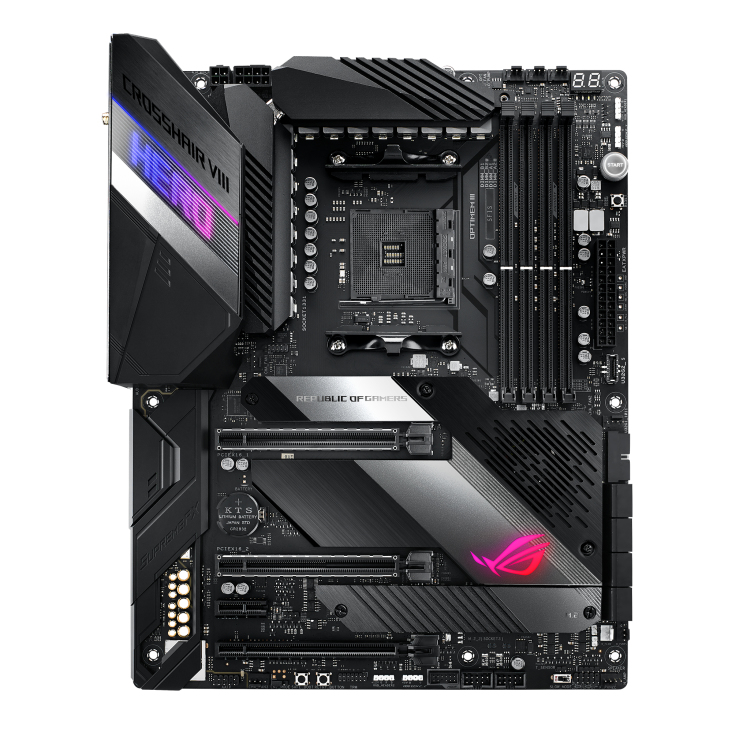

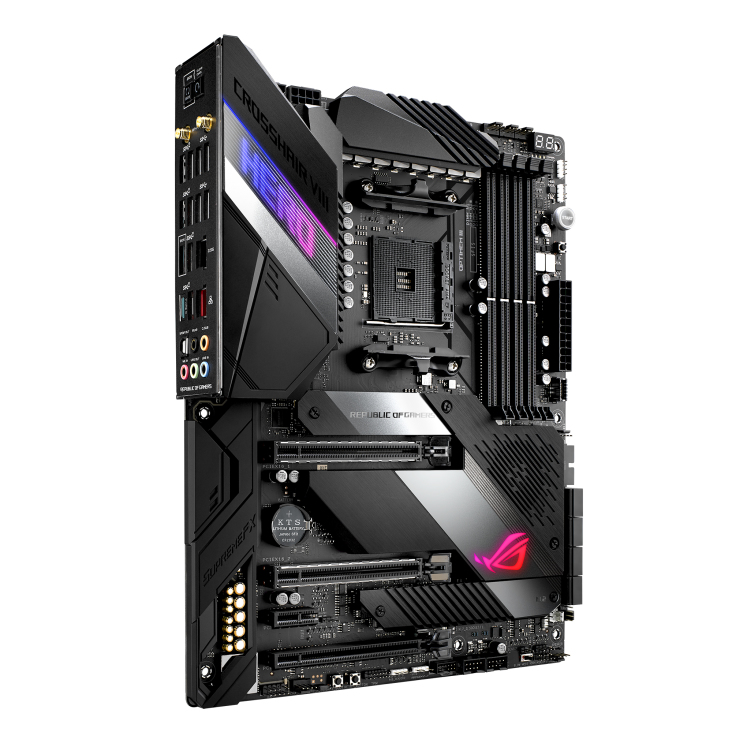

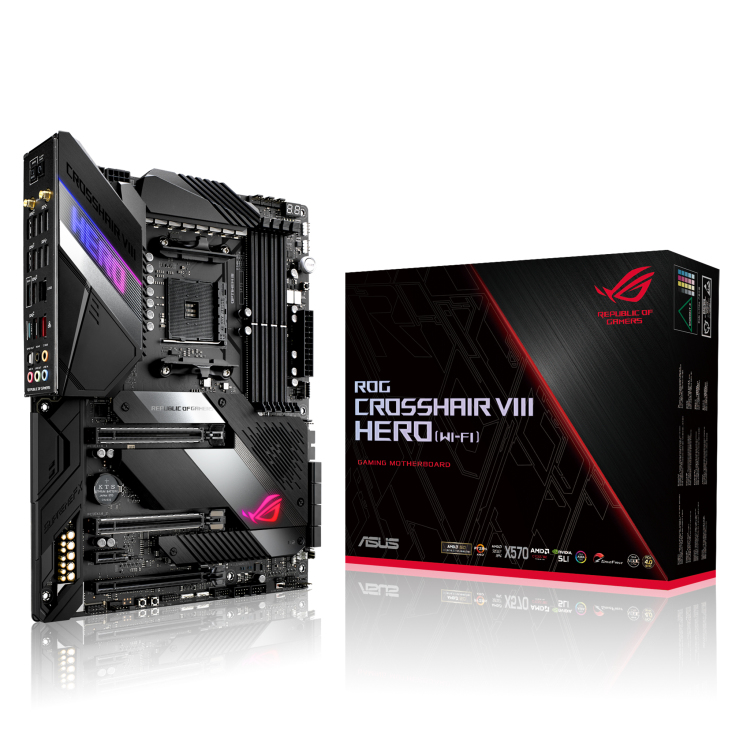

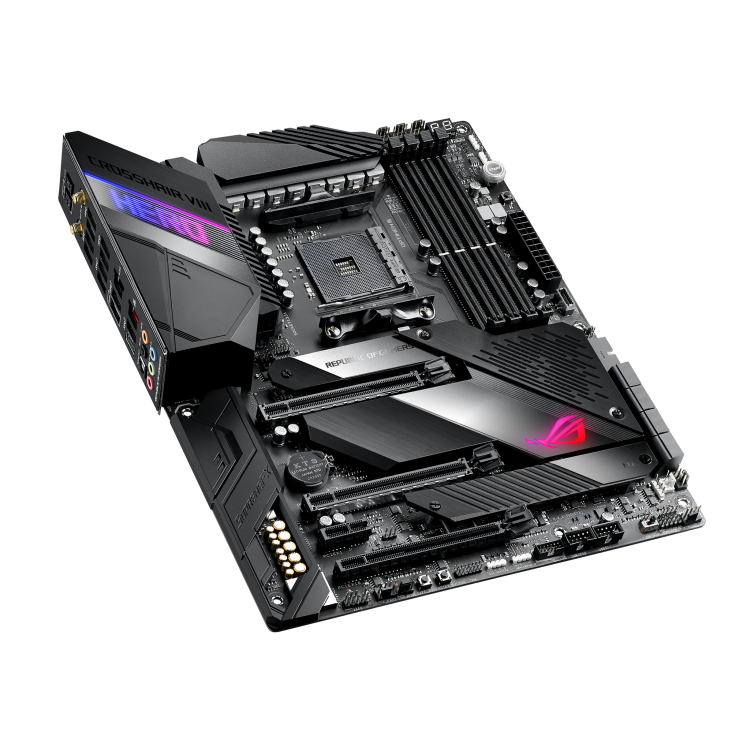

ASUS Crosshair VIII Hero

ASUS Crosshair VIII Hero

Model Crosshair VIII HeroPart no. 90MB10T0-M0AAY0

68 specifications
  • SpeedWi-Fi 6 (802.11ax)
  • Processor manufacturerAMD
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive typesHDD & SSD
  • USB 2.0 connectors2
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
See all specifications

Overview

Speed
Wi-Fi 6 (802.11ax)
Processor manufacturer
AMD
Supported memory types
DDR4-SDRAM
Supported storage drive types
HDD & SSD
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Brand
ASUS
Category
Motherboard
Model
Crosshair VIII Hero
Part number
90MB10T0-M0AAY0
Also known as
ASUS Crosshair VIII Hero AMD X570 Socket AM4 ATX

Specifications

68 specifications in 12 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM4
Compatible processor seriesAMD Ryzen 2000 Series, AMD Ryzen 3000 Series
Supported processor socketsSocket AM4

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds2133,2400,2666,2800,2933,3000,3200,3400,3466,3600,3733,3866,4000,4133,4266,4400,4600,4800,4866,5100 MHz
Maximum internal memory128 GB
Supported memory module capacities32GB
Unbuffered memoryYes

Storage controllers

Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, PCI Express 4.0, SATA III
Number of HDDs supported8
Number of storage drives supported10
RAID supportYes
RAID levels0, 1, 10

Graphics

Parallel processing technology support2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of SATA III connectors8
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors3
Power fan connectorYes
CPU fan connectorYes
Number of chassis fan connectors3
12V power connectorYes
TPM connectorYes
RGB LED pin headerYes

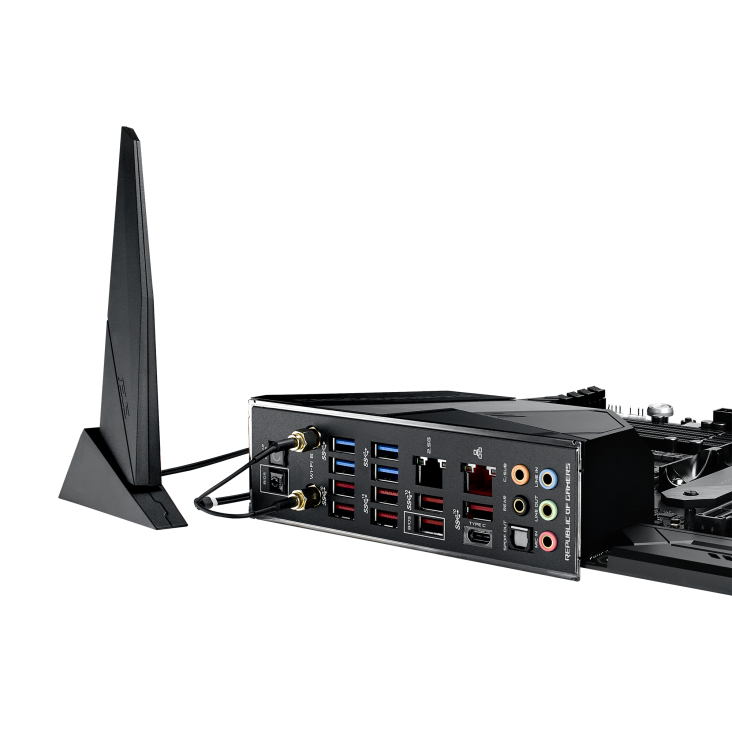

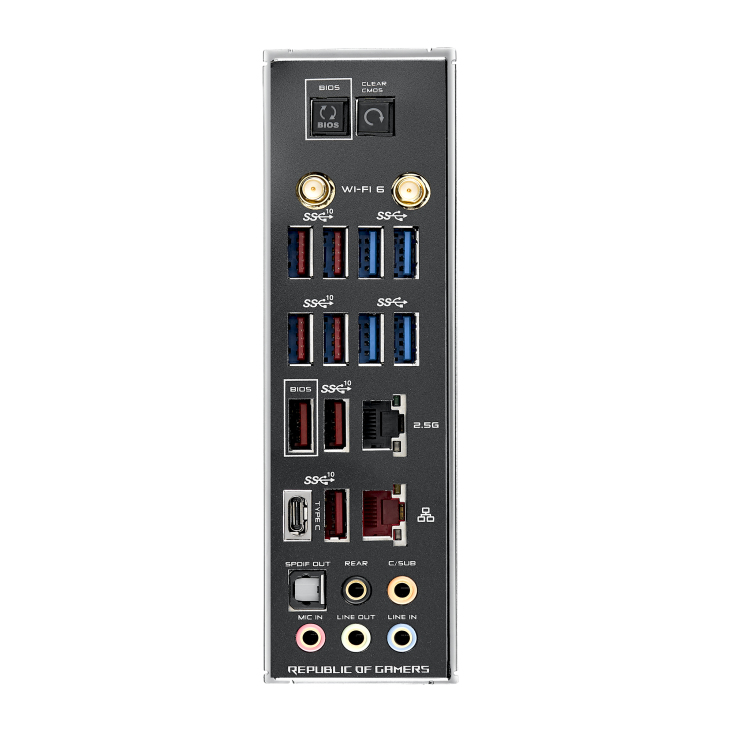

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity7
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports2
Headphone outputs1
Microphone inYes
S/PDIF out portYes
WiFi-AP antenna jack2
USB connector typeUSB Type-A, USB Type-C

Network

Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet, Gigabit Ethernet
LAN controllerIntel® I211-AT, Realtek RTL8125-CG
Wi-FiYes
Top Wi-Fi standardWi-Fi 6 (802.11ax)
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN controller modelIntel Wi-Fi 6 AX200

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyAMD
Motherboard chipsetAMD X570
Audio chipSupremeFX S1220
Audio output channels8 channels
Supported processor sockets (cooler)Socket AM4
Windows operating systems supportedWindows 10 x64, Windows 11, Windows 11 x64

Expansion slots

PCI Express x4 slots1
PCI Express x16 (Gen 4.x) slots3
PCI Express slots version4.0
Number of M.2 (M) slots2

BIOS

BIOS typeUEFI
Clear CMOS buttonYes

Weight & dimensions

Width244 mm
Depth305 mm

Packaging content

Cables includedSATA
Drivers includedYes
