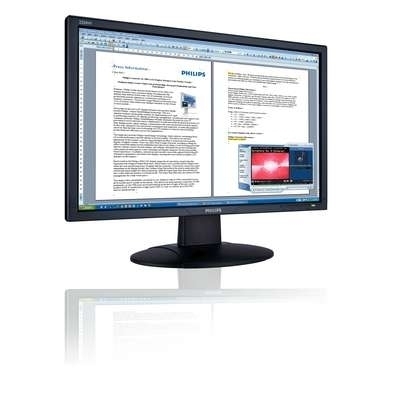

Philips LCD widescreen monitor 22" wide WSXGA

LCD widescreen monitor 22" wide WSXGA

Model LCD widescreen monitor 22" wide WSXGAPart no. 220AW8FB/00/KIT

47 specifications Checked today

Display55.9 cm (22")
Resolution1680 x 1050 pixels
ColourBlack
Built-in speaker(s)Yes
VGA (D-Sub) ports quantity1
Panel mounting interface100 x 100 mm

See all specifications

Overview

Display: 55.9 cm (22")
Resolution: 1680 x 1050 pixels
Colour: Black
Built-in speaker(s): Yes
VGA (D-Sub) ports quantity: 1
Panel mounting interface: 100 x 100 mm

Brand: Philips
Category: Monitor
Model: LCD widescreen monitor 22" wide WSXGA
Part numbers: 220AW8FB/00/KIT, 220SW8FS1/00/KIT
Also known as: Philips LCD widescreen monitor 22" wide WSXGA computer monitor 55.9 cm (22") 1680 x 1050 pixels Black

Specifications

47 specifications in 11 groups

Display

Specification	Value
Display diagonal	55.9 cm (22")
Display resolution	1680 x 1050 pixels
Native aspect ratio	16:10
Touchscreen	No
Display brightness (typical)	300 cd/m²
Response time	5 ms
Aspect ratio	16:10
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	160°
Viewing angle, vertical	160°
Pixel pitch	0.282 x 0.282 mm
Digital horizontal frequency	30 - 93 kHz
Digital vertical frequency	56 - 76 Hz
Pixel frequency	205 MHz
Video input impedance	75 Ω
Video input signal levels	0.7 Vpp
White Chromaticity, 6500K	x = 0.313 / y = 0.329
White Chromaticity, 9300K	x = 0.283 / y = 0.297

Multimedia

Specification	Value
Built-in speaker(s)	Yes
RMS rated power	2 W
Built-in camera	No

Design

Specification	Value
Product colour	Black

Ports & interfaces

Specification	Value
VGA (D-Sub) ports quantity	1
DVI-D ports quantity	1
PC Audio in	Yes

Ergonomics

Specification	Value
Panel mounting interface	100 x 100 mm
Tilt angle range	-5 - 25°
Plug and Play	Yes

Power

Specification	Value
Power consumption (typical)	49 W
Power consumption (off)	1 W

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Relative humidity	20 - 80%

Weight & dimensions

Specification	Value
Width (with stand)	513.8 mm
Width (without stand)	513.8 mm

Packaging data

Specification	Value
Package width	558.8 mm

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Other features

Specification	Value
TV tuner integrated	No
Effective viewing area	474 x 296 mm
Box depth (imperial)	47.2 cm (18.6")
Box height (imperial)	17.5 cm (6.9")
Set depth (inch)	6.86 cm (2.7")
Set depth (with stand) (inch)	21.3 cm (8.4")
Set height (inch)	33.5 cm (13.2")
Set height (with stand) (inch)	41.7 cm (16.4")
Weight (with stand) (imperial)	5.81 kg (12.8 lbs)
Supplied AC adapter type	AC
