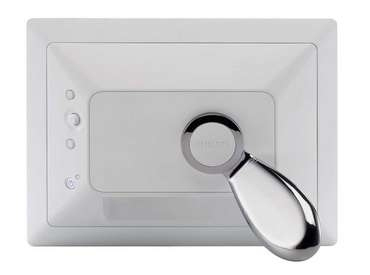

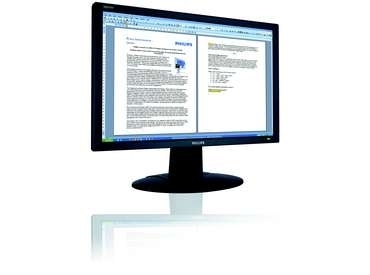

Philips K/Pack LCD 20.1" wide 200VW8FB + 7" LCD 6.5" 3:2 PhotoFrame 7FF2CWO

K/Pack LCD 20.1" wide 200VW8FB + 7" LCD 6.5" 3:2 PhotoFrame 7FF2CWO

Model K/Pack LCD 20.1" wide 200VW8FB + 7" LCD 6.5" 3:2 PhotoFrame 7FF2CWOPart no. K-PHILIPS-FMR028

58 specifications Checked yesterday

Display51 cm (20.1")
Resolution1680 x 1050 pixels
ColourBlack
Built-in speaker(s)No
VGA (D-Sub) ports quantity1
Panel mounting interface100 x 100 mm

See all specifications

Overview

Display: 51 cm (20.1")
Resolution: 1680 x 1050 pixels
Colour: Black
Built-in speaker(s): No
VGA (D-Sub) ports quantity: 1
Panel mounting interface: 100 x 100 mm

Brand: Philips
Category: Monitor
Model: K/Pack LCD 20.1" wide 200VW8FB + 7" LCD 6.5" 3:2 PhotoFrame 7FF2CWO
Part number: K-PHILIPS-FMR028
Also known as: Philips K/Pack LCD 20.1" wide 200VW8FB + 7" LCD 6.5" 3:2 PhotoFrame 7FF2CWO computer monitor 51 cm (20.1") 1680 x 1050 pixels Black

Specifications

58 specifications in 12 groups

Display

Specification	Value
Display diagonal	51 cm (20.1")
Display resolution	1680 x 1050 pixels
Native aspect ratio	16:10
Touchscreen	No
Display brightness (typical)	300 cd/m²
Response time	5 ms
Aspect ratio	16:10
Contrast ratio (typical)	800:1
Viewing angle, horizontal	160°
Viewing angle, vertical	160°
Pixel pitch	0.258 x 0.258 mm
Horizontal scan range	30 - 93 kHz
Vertical scan range	56 - 76 Hz
Viewable size diagonal	51 cm
Sync-on-green (SOG)	Yes
Colour gamut standard	sRGB
Pixel frequency	205 MHz
Separate H/V sync	Yes
Composite sync	Yes
Video input impedance	75 Ω
Video input signal levels	0.7 Vpp
White Chromaticity, 6500K	x = 0.313/y = 0.329
White Chromaticity, 9300K	x = 0.283/y = 0.297

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Design

Specification	Value
Product colour	Black

Ports & interfaces

Specification	Value
VGA (D-Sub) ports quantity	1

Ergonomics

Specification	Value
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Tilt angle range	-5 - 25°
Plug and Play	Yes
LED indicators	Stand-by

Power

Specification	Value
Power consumption (typical)	43 W
Power consumption (off)	1 W

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Relative humidity	20 - 80%

Weight & dimensions

Specification	Value
Width (with stand)	472.9 mm
Depth (with stand)	213.6 mm
Height (with stand)	400.4 mm
Weight (with stand)	5.3 kg
Width (without stand)	472.9 mm
Depth (without stand)	73 mm
Height (without stand)	310.2 mm

Packaging data

Specification	Value
Package dimensions (WxDxH)	525 x 452 x 174 mm
Package weight	6.1 kg

Packaging content

Specification	Value
Cables included	VGA
Manual	Yes

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Other features

Specification	Value
TV tuner integrated	No
Display viewable area (HxV)	433.4 x 270.9 mm
Power requirements	100-240 VAC, 50/60 Hz
Sync input impedance	2200 Ω
Mean time between failures (MTBF)	50000 h
Compliance industry standards	DDC/CI
Certification	CE Mark, FCC Class B, SEMKO, TCO '03, TÜV/GS, TÜV Ergo, UL/cUL
Supplied AC adapter type	AC
