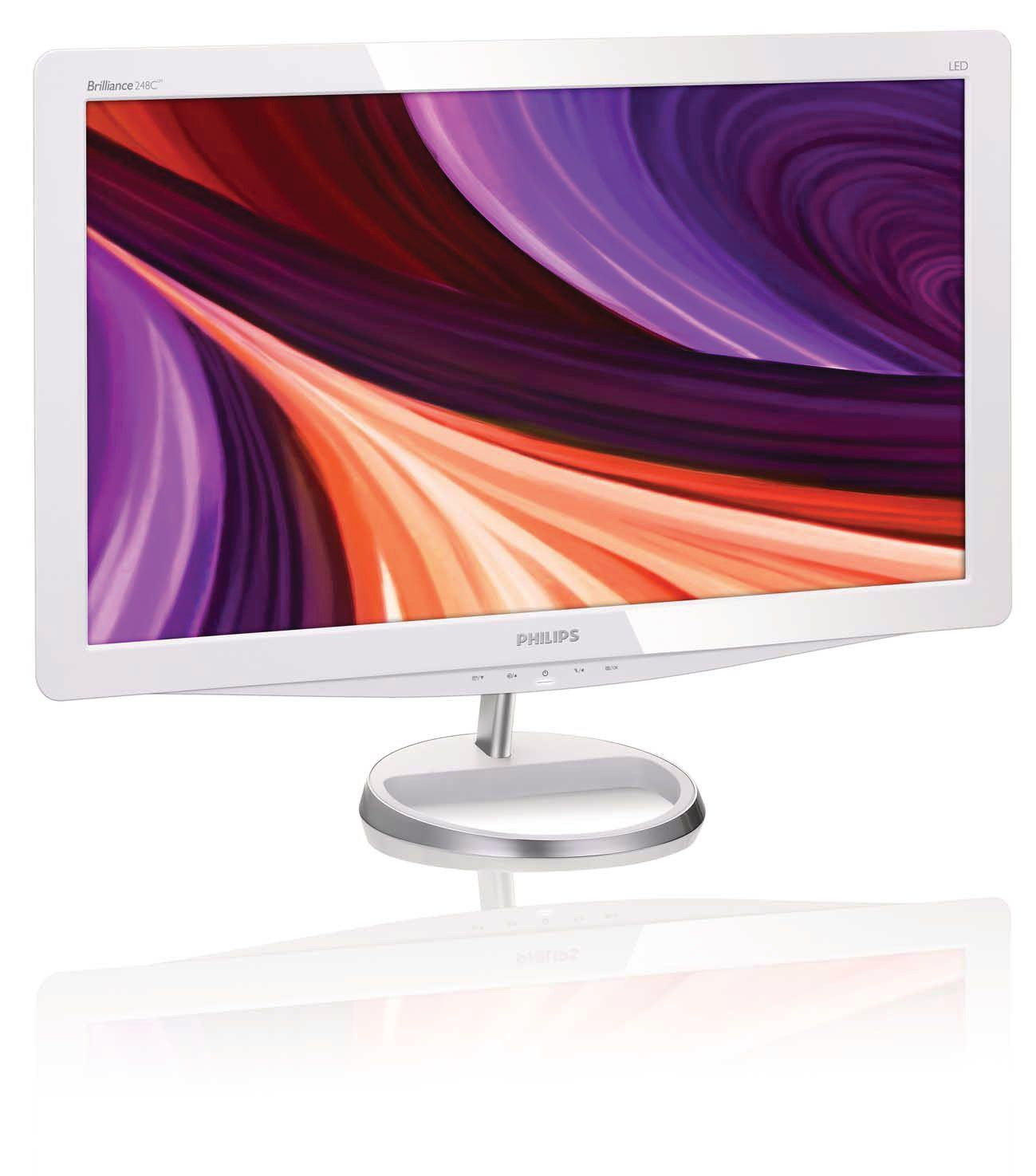

Brilliance 248C3LHSW/01 computer monitor
59.9 cm (23.6") 1920 x 1080 pixels Full HD LCD White
Model 248C3LHSW/01EAN 8712581617356
71 specifications Checked today
- Display59.9 cm (23.6")
- Resolution1920 x 1080 pixels
- ColourWhite
- Windows operating systems supportedYes
- USB Type-A downstream ports quantity0
- Power consumption (typical)16.6 W
Overview
- Display
- 59.9 cm (23.6")
- Resolution
- 1920 x 1080 pixels
- Colour
- White
- Windows operating systems supported
- Yes
- USB Type-A downstream ports quantity
- 0
- Power consumption (typical)
- 16.6 W
- Brand
- Philips
- Category
- Monitor
- Model
- 248C3LHSW/01
- Part number
- 248C3LHSW/01
- EAN / UPC
- 8712581617356
- Also known as
- Philips Brilliance 248C3LHSW/01 computer monitor 59.9 cm (23.6") 1920 x 1080 pixels Full HD LCD White
Specifications
71 specifications in 11 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 59.9 cm (23.6") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LCD |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | TFT |
| Backlight type | W-LED |
| Display brightness (typical) | 300 cd/m² |
| Response time | 5 ms |
| Aspect ratio | 16:9 |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 20000000:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.78 million colours |
| SmartResponse | 2 ms |
| Pixel pitch | 0.272 x 0.272 mm |
| Viewable size, horizontal | 52.1 cm |
| Viewable size, vertical | 29.3 cm |
| Digital horizontal frequency | 30 - 83 kHz |
| Digital vertical frequency | 56 - 75 Hz |
| Sync-on-green (SOG) | Yes |
| Colour gamut standard | sRGB |
| 3D | No |
| Separate H/V sync | Yes |
Performance
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | White |
Ports & interfaces
| Specification | Value |
|---|---|
| USB Type-A downstream ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
| HDMI ports quantity | 2 |
| Audio input | Yes |
| Audio output | Yes |
Ergonomics
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 20° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, German, English, Spanish, French, Italian, Portuguese, Russian |
| Number of OSD languages | 8 |
| Plug and Play | Yes |
| LED indicators | Power |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 16.6 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Relative humidity | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 579 mm |
| Depth (with stand) | 194 mm |
| Height (with stand) | 443 mm |
| Weight (with stand) | 4.5 kg |
| Width (without stand) | 579 mm |
| Depth (without stand) | 33 mm |
| Height (without stand) | 369 mm |
| Weight (without stand) | 3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 625 mm |
| Package depth | 101 mm |
| Package height | 504 mm |
| Package weight | 5.7 kg |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Silver, ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| On/off switch | Yes |
| TV tuner integrated | No |
| Heavy metals free | Hg (mercury), Pb (lead) |
| Mean time between failures (MTBF) | 30000 h |
| Certification | BSMI, CE Mark, FCC Class B, GOST, SASO, SEMKO, TCO 5.2, TUV Ergo, TUV/GS, UL/cUL, WEEE |
| Supplied AC adapter type | LCD |
