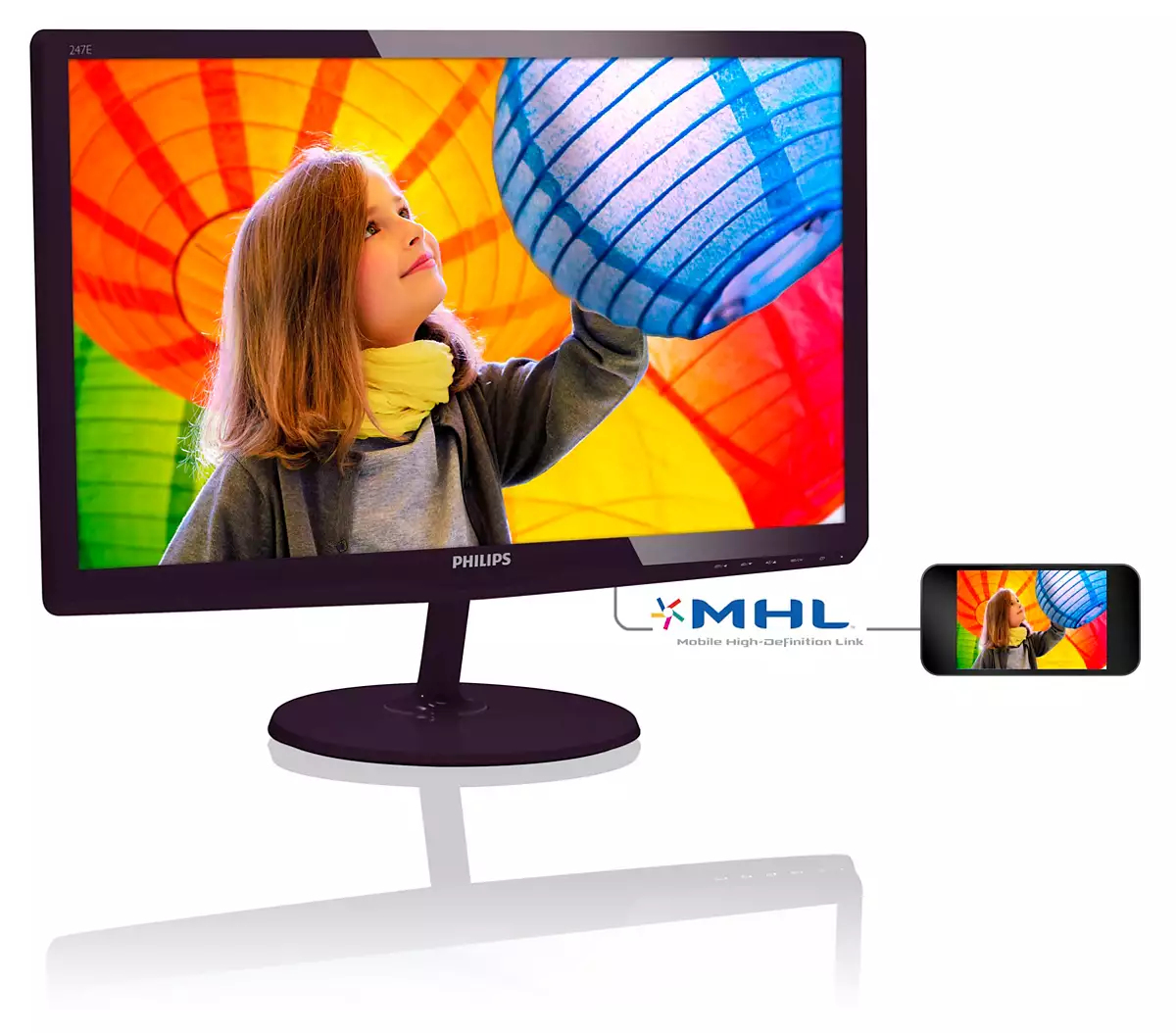

E Line LCD monitor 247E6LDAD/01

Model 247E6LDAD/01EAN 8712581736606

110 specifications Checked today

Display59.9 cm (23.6")
Resolution1920 x 1080 pixels
ColourBlack
Built-in speaker(s)Yes
Built-in USB hubNo
Power consumption (typical)17.44 W

See all specifications

Overview

Display: 59.9 cm (23.6")
Resolution: 1920 x 1080 pixels
Colour: Black
Built-in speaker(s): Yes
Built-in USB hub: No
Power consumption (typical): 17.44 W

Brand: Philips
Category: Monitor
Model: 247E6LDAD/01
Part number: 247E6LDAD/01
EAN / UPC: 8712581736606
Also known as: Philips E Line LCD monitor 247E6LDAD/01

Specifications

110 specifications in 14 groups

Display

Specification	Value
Display diagonal	59.9 cm (23.6")
Display resolution	1920 x 1080 pixels
Native aspect ratio	16:9
Display technology	LCD
Touchscreen	No
HD type	Full HD
Panel type	TFT
LED backlight	Yes
Backlight type	W-LED
Display brightness (typical)	250 cd/m²
Response time	1 ms
Screen shape	Flat
Supported graphics resolutions	1920 x 1080 (HD 1080)
Aspect ratio	16:9
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	20000000:1
Dynamic contrast ratio marketing name	SmartContrast
Viewing angle, horizontal	170°
Viewing angle, vertical	160°
Display number of colours	16.7 million colours
Pixel pitch	0.2715 x 0.2715 mm
Horizontal scan range	30 - 83 kHz
Vertical scan range	56 - 75 Hz
Viewable size, horizontal	52.1 cm
Viewable size, vertical	29.3 cm
Sync-on-green (SOG)	Yes
Display diagonal (metric)	59.9 cm
DDC/CI	Yes
Colour gamut standard	sRGB
3D	No
Separate H/V sync	Yes
Display sRGB	Yes
Display panel size	23.6 inch / 59.9 cm

Performance

Specification	Value
Component video sync	Separate Sync, Sync-on-green (SOG)

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	6 W
Built-in camera	No

Design

Specification	Value
Product colour	Black
Feet colour	Black

Ports & interfaces

Specification	Value
Built-in USB hub	No
VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
HDMI ports quantity	1
DisplayPorts quantity	0
Headphone out	Yes
PC Audio in	Yes
HDCP	Yes
Mobile High-Definition Link (MHL)	Yes

Ergonomics

Specification	Value
VESA mounting	No
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	No
Pivot	No
Swivelling	No
Tilt adjustment	Yes
Tilt angle range	-5 - 20°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Portuguese, Czech, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Ukrainian
Number of OSD languages	21
Plug and Play	Yes
LED indicators	Operation, Stand-by

Power

Specification	Value
Power consumption (typical)	17.44 W
Power consumption (standby)	0.5 W
Power consumption (off)	0.3 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power supply type	External

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Operating altitude	0 - 3658 m
Non-operating altitude	0 - 12192 m
Relative humidity	20 - 80%

Weight & dimensions

Specification	Value
Dimensions (W x D x H) with stand	561 x 429 x 212 mm
Width (with stand)	561 mm
Depth (with stand)	212 mm
Height (with stand)	429 mm
Weight (with stand)	3.65 kg
Width (without stand)	561 mm
Depth (without stand)	43 mm
Height (without stand)	347 mm
Weight (without stand)	3.27 kg

Packaging data

Specification	Value
Package dimensions (WxDxH)	598 x 490 x 100 mm
Package width	598 mm
Package depth	100 mm
Package height	490 mm
Package weight	4.9 kg

Packaging content

Specification	Value
Stand included	Yes
Cables included	VGA, Audio (3.5mm), AC
Manual	Yes

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR, EPEAT Silver

Other features

Specification	Value
Compatible operating systems	Mac OS X; Windows 10 / 8.1 / 8 / 7
On/off switch	Yes
TV tuner integrated	No
Exterior finish type	Gloss
Compliance certificates	RoHS
Effective viewing area	521.28 x 293.22 mm
Heavy metals free	Hg (mercury), Pb (lead)
Monitor sync input signal	Separate Sync; Sync on Green
Signal input	VGA (Analog ); DVI-D (digital, HDCP); MHL-HDMI (digital, HDCP)
User guide	Yes
Mean time between failures (MTBF)	50000 h
Certification	CE Mark, FCC Class B, CU-EAC, SEMKO, ETL, TUV/ISO9241-307, SASO, KUCAS, RCM, WEEE
Picture enhancement	SmartImage Lite
Regulatory Approvals	CE Mark; FCC Class B; CU-EAC; SEMKO; ETL; TUV/ISO9241-307; SASO; KUCAS; RCM; WEEE
User controls	Power On/Off; Menu; Volume; Input; SmartImage lite
Supplied AC adapter type	AC

Recycling data

Specification	Value
Packaging recyclability rate	100%
