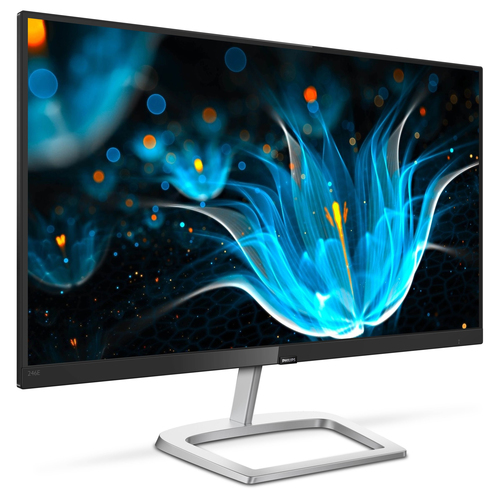

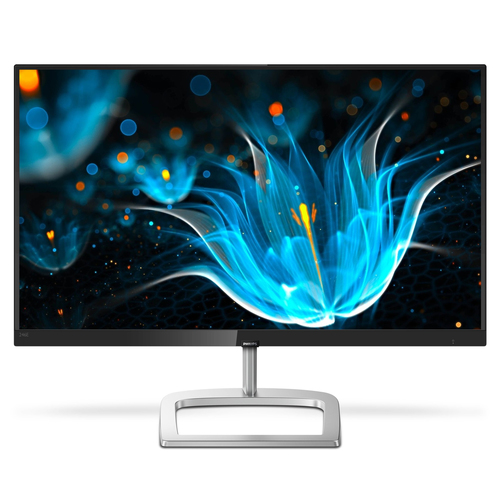

E Line LCD monitor with Ultra Wide-Color 246E9QDSB/75
Model 246E9QDSB/75EAN 8712581750695
76 specifications Checked today
- Display60.5 cm (23.8")
- Resolution1920 x 1080 pixels
- ColourBlack, Silver
- Flicker-free technologyYes
- VGA (D-Sub) ports quantity1
- Power consumption (typical)12.25 W
Overview
- Display
- 60.5 cm (23.8")
- Resolution
- 1920 x 1080 pixels
- Colour
- Black, Silver
- Flicker-free technology
- Yes
- VGA (D-Sub) ports quantity
- 1
- Power consumption (typical)
- 12.25 W
- Brand
- Philips
- Category
- Monitor
- Model
- 246E9QDSB/75
- Part number
- 246E9QDSB/75
- EAN / UPC
- 8712581750695
- Also known as
- Philips E Line LCD monitor with Ultra Wide-Color 246E9QDSB/75
Specifications
76 specifications in 11 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 60.5 cm (23.8") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LCD |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| Backlight type | W-LED |
| Display brightness (typical) | 250 cd/m² |
| Response time | 5 ms |
| Screen shape | Flat |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Aspect ratio | 16:9 |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 20000000:1 |
| Dynamic contrast ratio marketing name | SmartContrast |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.275 x 0.275 mm |
| Pixel density | 93 ppi |
| Horizontal scan range | 30 - 83 kHz |
| Vertical scan range | 50 - 76 Hz |
| Viewable size, horizontal | 52.7 cm |
| Viewable size, vertical | 29.6 cm |
| Sync-on-green (SOG) | Yes |
| DDC/CI | Yes |
| Colour gamut standard | sRGB |
| NTSC coverage (typical) | 108% |
| 3D | No |
| Separate H/V sync | Yes |
Performance
| Specification | Value |
|---|---|
| Flicker-free technology | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
| Feet colour | Silver |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDCP | Yes |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | No |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 20° |
| On Screen Display (OSD) | Yes |
| Plug and Play | Yes |
| LED indicators | Operation, Stand-by |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 12.25 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating altitude | 0 - 3658 m |
| Non-operating altitude | 3658 - 12192 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 540 mm |
| Depth (with stand) | 190 mm |
| Height (with stand) | 416 mm |
| Weight (with stand) | 2.94 kg |
| Width (without stand) | 540 mm |
| Depth (without stand) | 39 mm |
| Height (without stand) | 326 mm |
| Weight (without stand) | 2.39 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 586 mm |
| Package depth | 141 mm |
| Package height | 477 mm |
| Package weight | 4.45 kg |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Silver, ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| On/off switch | Yes |
| sRGB coverage (min) | 129% |
| Heavy metals free | Hg (mercury), Pb (lead) |
| Mean time between failures (MTBF) | 50000 h |
