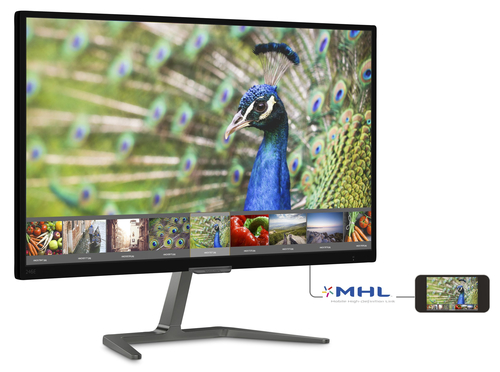

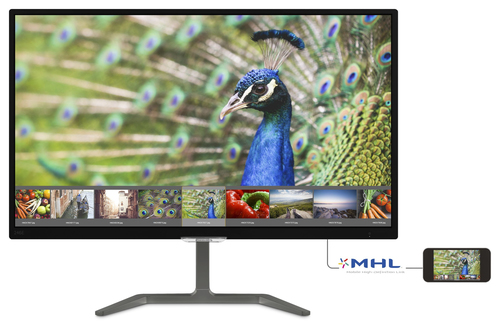

E Line 246E7QDSB/69 computer monitor
59.9 cm (23.6") 1920 x 1080 pixels Full HD LED Black
Model 246E7QDSB/69EAN 8712581737191
96 specifications Checked today
- Display59.9 cm (23.6")
- Resolution1920 x 1080 pixels
- ColourBlack
- NVIDIA G-SYNCNo
- VESA mountingYes
- Power consumption (typical)14.47 W
Overview
- Display
- 59.9 cm (23.6")
- Resolution
- 1920 x 1080 pixels
- Colour
- Black
- NVIDIA G-SYNC
- No
- VESA mounting
- Yes
- Power consumption (typical)
- 14.47 W
- Brand
- Philips
- Category
- Monitor
- Model
- 246E7QDSB/69
- Part number
- 246E7QDSB/69
- EAN / UPC
- 8712581737191
- Also known as
- Philips E Line 246E7QDSB/69 computer monitor 59.9 cm (23.6") 1920 x 1080 pixels Full HD LED Black
Specifications
96 specifications in 15 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 59.9 cm (23.6") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | PLS |
| Backlight type | W-LED |
| Display brightness (typical) | 250 cd/m² |
| Response time | 5 ms |
| Screen shape | Flat |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p |
| Aspect ratio | 16:9 |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 20000000:1 |
| Dynamic contrast ratio marketing name | SmartContrast |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.272 x 0.272 mm |
| Horizontal scan range | 30 - 83 kHz |
| Vertical scan range | 56 - 76 Hz |
| Viewable size, horizontal | 52.1 cm |
| Viewable size, vertical | 29.3 cm |
| Sync-on-green (SOG) | Yes |
| DDC/CI | Yes |
| Colour gamut standard | sRGB |
| Colour gamut | 101.4% |
| 3D | No |
| Separate H/V sync | Yes |
Performance
| Specification | Value |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Windows operating systems supported | Windows 7, Windows 8, Windows 8.1 |
| Mac operating systems supported | Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Ma |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Feet colour | Grey |
Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | No |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDCP | Yes |
| Mobile High-Definition Link (MHL) | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet LAN | No |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | No |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 20° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian |
| Plug and Play | Yes |
| LED indicators | Power |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 14.47 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating altitude | 0 - 3658 m |
| Non-operating altitude | 0 - 12192 m |
| Relative humidity | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (W x D x H) with stand | 539 x 419 x 179 mm |
| Width (with stand) | 539 mm |
| Depth (with stand) | 179 mm |
| Height (with stand) | 419 mm |
| Weight (with stand) | 3.18 kg |
| Width (without stand) | 539 mm |
| Depth (without stand) | 45 mm |
| Height (without stand) | 324 mm |
| Weight (without stand) | 2.61 kg |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 581 x 490 x 102 mm |
| Package width | 581 mm |
| Package depth | 102 mm |
| Package height | 490 mm |
| Package weight | 5.13 kg |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Silver, ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| On/off switch | Yes |
| TV tuner integrated | No |
| Miracast | No |
| Effective viewing area | 521.28 x 293.22 mm |
| Heavy metals free | Hg (mercury), Pb (lead) |
| No flickering | Yes |
| Mean time between failures (MTBF) | 50000 h |
| Compliance industry standards | CE Mark, FCC Class B, CU-EAC, TCO certified, TUV/ISO9241-307, VCCI, C-tick, WEEE, CECP |
| Supplied AC adapter type | LCD |
Recycling data
| Specification | Value |
|---|---|
| Packaging recyclability rate | 100% |
Thin Client
| Specification | Value |
|---|---|
| Thin client installed | No |
