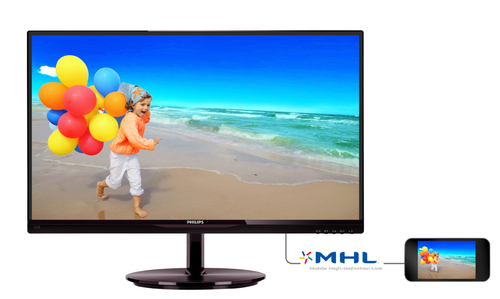

Philips LCD monitor with SmartImage lite 224E5QDAB/00

LCD monitor with SmartImage lite 224E5QDAB/00

Model 224E5QDAB/00EAN 4053162660458

81 specifications Checked today

Display54.6 cm (21.5")
Resolution1920 x 1080 pixels
ColourBlack
Built-in speaker(s)Yes
USB Type-A downstream ports quantity0
Power consumption (typical)17.46 W

See all specifications

Overview

Display: 54.6 cm (21.5")
Resolution: 1920 x 1080 pixels
Colour: Black
Built-in speaker(s): Yes
USB Type-A downstream ports quantity: 0
Power consumption (typical): 17.46 W

Brand: Philips
Category: Monitor
Model: 224E5QDAB/00
Part number: 224E5QDAB/00
EAN / UPC: 4053162660458, 8712581704988
Also known as: Philips LCD monitor with SmartImage lite 224E5QDAB/00

Specifications

81 specifications in 14 groups

Display

Specification	Value
Display diagonal	54.6 cm (21.5")
Display resolution	1920 x 1080 pixels
Native aspect ratio	16:9
Touchscreen	No
HD type	Full HD
Backlight type	W-LED
Display brightness (typical)	250 cd/m²
Response time	5 ms
Display surface	Gloss
Supported graphics resolutions	1920 x 1080 (HD 1080)
Supported video modes	1080p
Aspect ratio	16:9
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	20000000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.78 million colours
Pixel pitch	0.248 x 0.248 mm
Horizontal scan range	30 - 83 kHz
Vertical scan range	56 - 75 Hz
Sync-on-green (SOG)	Yes
3D	No
Separate H/V sync	Yes

Performance

Specification	Value
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8
Mac operating systems supported	Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	10 W
Built-in camera	No

Design

Specification	Value
Product colour	Black

Ports & interfaces

Specification	Value
USB Type-A downstream ports quantity	0
VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
HDMI ports quantity	1
Audio input	Yes
Audio output	Yes
Headphone outputs	1
PC Audio in	Yes
HDCP	Yes
Mobile High-Definition Link (MHL)	Yes

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Pivot	Yes
Tilt adjustment	Yes
Tilt angle range	-5 - 20°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian
Number of OSD languages	22
Plug and Play	Yes
LED indicators	Operation, Stand-by

Power

Specification	Value
Power consumption (typical)	17.46 W
Power consumption (standby)	0.5 W
Power consumption (off)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating altitude	0 - 3658 m
Non-operating altitude	0 - 12192 m
Relative humidity	20 - 80%

Weight & dimensions

Specification	Value
Width (with stand)	500 mm
Depth (with stand)	213 mm
Height (with stand)	394 mm
Weight (with stand)	3.14 kg
Width (without stand)	500 mm
Depth (without stand)	47 mm
Height (without stand)	306 mm
Weight (without stand)	2.82 kg

Packaging data

Specification	Value
Package width	562 mm
Package depth	106 mm
Package height	466 mm
Package weight	5.01 kg

Packaging content

Specification	Value
Cables included	AC

Sustainability

Specification	Value
Sustainability certificates	EPEAT Silver, ENERGY STAR

Other features

Specification	Value
TV tuner integrated	No
Mean time between failures (MTBF)	30000 h
Supplied AC adapter type	LCD

Thin Client

Specification	Value
Thin client installed	No
