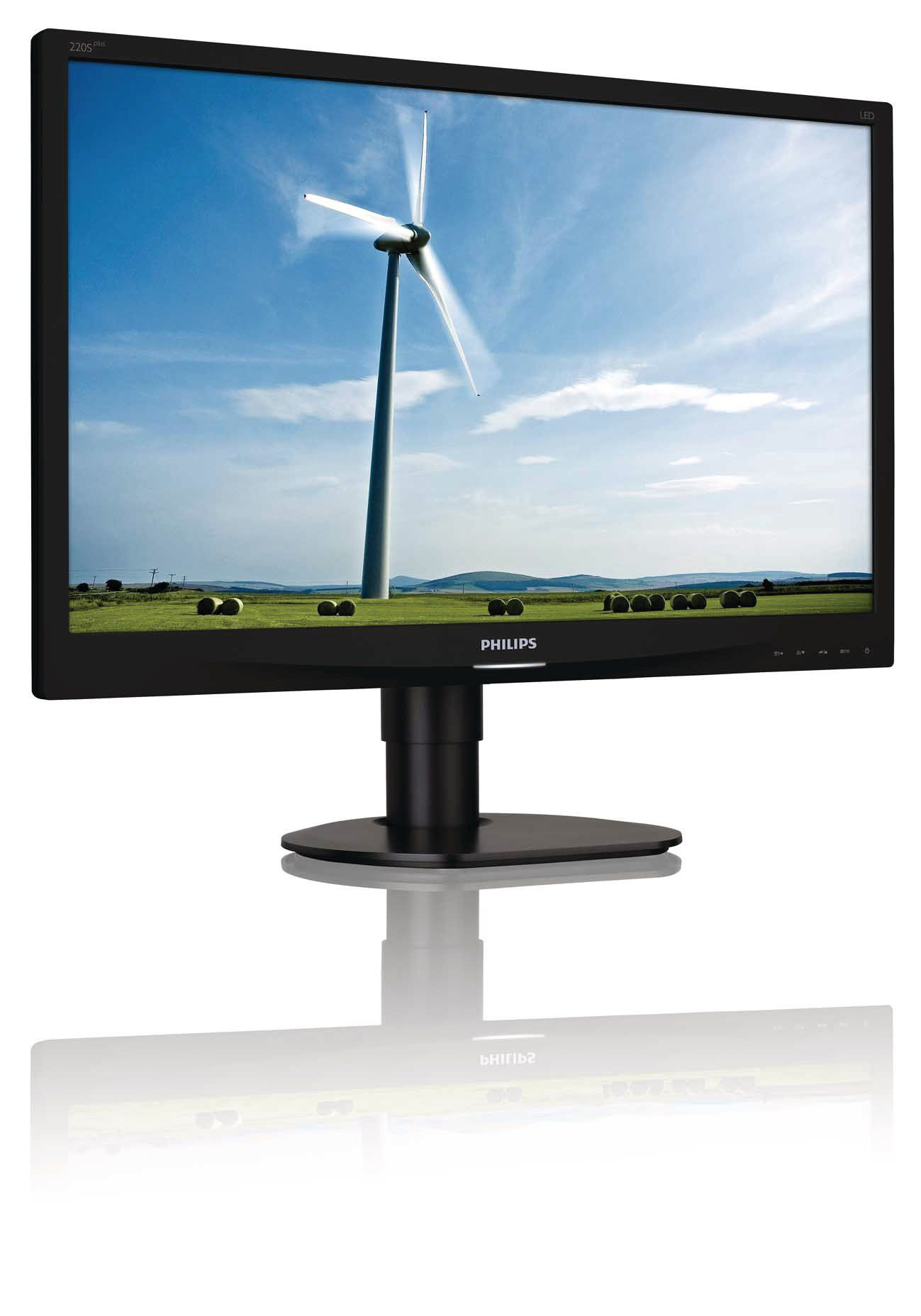

Brilliance LCD monitor, LED backlight 220S4LCB/01
Model 220S4LCB/01EAN 8712581641481
89 specifications Checked today
- Display55.9 cm (22")
- Resolution1680 x 1050 pixels
- ColourSilver
- Windows operating systems supportedYes
- Built-in speaker(s)No
- USB Type-A downstream ports quantity0
Overview
- Display
- 55.9 cm (22")
- Resolution
- 1680 x 1050 pixels
- Colour
- Silver
- Windows operating systems supported
- Yes
- Built-in speaker(s)
- No
- USB Type-A downstream ports quantity
- 0
- Brand
- Philips
- Category
- Monitor
- Model
- 220S4LCB/01
- Part number
- 220S4LCB/01
- EAN / UPC
- 8712581641481
- Also known as
- Philips Brilliance LCD monitor, LED backlight 220S4LCB/01
Specifications
89 specifications in 14 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 55.9 cm (22") |
| Display resolution | 1680 x 1050 pixels |
| Native aspect ratio | 16:10 |
| Display technology | LCD |
| Touchscreen | No |
| HD type | HD |
| Panel type | TFT |
| Backlight type | W-LED |
| Display brightness (typical) | 250 cd/m² |
| Response time | 5 ms |
| Screen shape | Flat |
| Aspect ratio | 16:10 |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 20000000:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.282 x 0.282 mm |
| Horizontal scan range | 30 - 83 kHz |
| Vertical scan range | 56 - 75 Hz |
| Viewable size, horizontal | 47.4 cm |
| Viewable size, vertical | 29.6 cm |
| Sync-on-green (SOG) | Yes |
| DDC/CI | Yes |
| Colour gamut standard | sRGB |
| 3D | No |
| Separate H/V sync | Yes |
Performance
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| Feet colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| USB Type-A downstream ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| HDMI ports quantity | 0 |
| HDCP | Yes |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | Yes |
| Adjustable height (max) | 11 cm |
| Pivot | Yes |
| Pivot angle | 0 - 90° |
| Swivelling | Yes |
| Swivel angle range | 0 - 60° |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 20° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | German, English, Spanish, French, Italian, Portuguese, Russian |
| Number of OSD languages | 8 |
| Plug and Play | Yes |
| LED indicators | Operation, Stand-by |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 15.7 W |
| Power consumption (standby) | 0.1 W |
| Power consumption (off) | 0.1 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating altitude | 0 - 3658 m |
| Non-operating altitude | 0 - 12192 m |
| Relative humidity | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 504 mm |
| Depth (with stand) | 227 mm |
| Height (with stand) | 509 mm |
| Weight (with stand) | 5.2 kg |
| Width (without stand) | 504 mm |
| Depth (without stand) | 59 mm |
| Height (without stand) | 349 mm |
| Weight (without stand) | 3.38 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 565 mm |
| Package depth | 186 mm |
| Package height | 391 mm |
| Package weight | 7.05 kg |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Gold, ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| On/off switch | Yes |
| TV tuner integrated | No |
| ECO mode | Yes |
| Heavy metals free | Hg (mercury), Pb (lead) |
| Power consumption (economy mode) | 12.6 W |
| Mean time between failures (MTBF) | 30000 h |
| Certification | RoHS, |
| Supplied AC adapter type | LED |
Recycling data
| Specification | Value |
|---|---|
| Overall recyclability rate | 100% |
Thin Client
| Specification | Value |
|---|---|
| Thin client installed | No |
