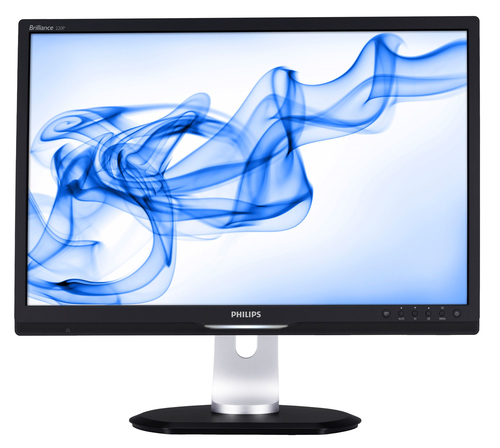

Brilliance LCD monitor with Pivot base, USB, Audio 220P1EB/75
Model 220P1EB/75EAN 8712581504694
93 specifications Checked today
- Display55.9 cm (22")
- Resolution1680 x 1050 pixels
- ColourBlack
- NVIDIA G-SYNCNo
- Built-in speaker(s)Yes
- Power consumption (typical)21.38 W
Overview
- Display
- 55.9 cm (22")
- Resolution
- 1680 x 1050 pixels
- Colour
- Black
- NVIDIA G-SYNC
- No
- Built-in speaker(s)
- Yes
- Power consumption (typical)
- 21.38 W
- Brand
- Philips
- Category
- Monitor
- Model
- 220P1EB/75
- Part number
- 220P1EB/75
- EAN / UPC
- 8712581504694
- Also known as
- Philips Brilliance LCD monitor with Pivot base, USB, Audio 220P1EB/75
Specifications
93 specifications in 14 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 55.9 cm (22") |
| Display resolution | 1680 x 1050 pixels |
| Native aspect ratio | 16:10 |
| Display technology | LCD |
| Touchscreen | No |
| HD type | WSXGA+ |
| Panel type | TFT |
| Display brightness (typical) | 250 cd/m² |
| Response time | 5 ms |
| Screen shape | Flat |
| Supported graphics resolutions | 1680 x 1050 (WSXGA+) |
| Aspect ratio | 16:10 |
| Contrast ratio (dynamic) | 25000:1 |
| Dynamic contrast ratio marketing name | SmartContrast |
| Viewing angle, horizontal | 176° |
| Viewing angle, vertical | 170° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.282 x 0.282 mm |
| Digital horizontal frequency | 30 - 83 kHz |
| Digital vertical frequency | 56 - 75 Hz |
| Sync-on-green (SOG) | Yes |
| DDC/CI | Yes |
| Colour gamut standard | sRGB |
| 3D | No |
| Separate H/V sync | Yes |
Performance
| Specification | Value |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 3 W |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Feet colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | Yes |
| USB hub version | 2.0 |
| USB upstream port type | USB Type-B |
| Number of upstream ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| HDMI ports quantity | 0 |
| HDCP | Yes |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | Yes |
| Adjustable height (max) | 13 cm |
| Pivot | Yes |
| Swivelling | Yes |
| Swivel angle range | -65 - 65° |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 20° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, German, English, Spanish, French, Italian, Portuguese, Russian |
| Number of OSD languages | 8 |
| Plug and Play | Yes |
| LED indicators | Operation, Stand-by |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 21.38 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (W x D x H) with stand | 589 x 502 x 220 mm |
| Width (with stand) | 502 mm |
| Depth (with stand) | 220 mm |
| Height (with stand) | 589 mm |
| Weight (with stand) | 6.47 kg |
| Width (without stand) | 502 mm |
| Depth (without stand) | 58 mm |
| Height (without stand) | 346 mm |
| Weight (without stand) | 4.15 kg |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 410 x 658 x 272 mm |
| Package width | 410 mm |
| Package depth | 272 mm |
| Package height | 658 mm |
| Package weight | 7.58 kg |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Silver, ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| On/off switch | Yes |
| TV tuner integrated | No |
| Power consumption (economy mode) | 17.5 W |
| Mean time between failures (MTBF) | 50000 h |
| Certification | BSMI, CE Mark, FCC, Class B, GOST, SEMKO, TCO 5.0, TUV/GS, TUV Ergo, UL/cUL, RoHS |
| Picture enhancement | SmartImage |
| Regulatory Approvals | BSMI, CE Mark, FCC, Class B, GOST, SEMKO, TCO 5.0, TUV/GS, TUV Ergo, UL/cUL |
| Supplied AC adapter type | LCD |
Recycling data
| Specification | Value |
|---|---|
| Packaging recyclability rate | 100% |
Thin Client
| Specification | Value |
|---|---|
| Thin client installed | No |
