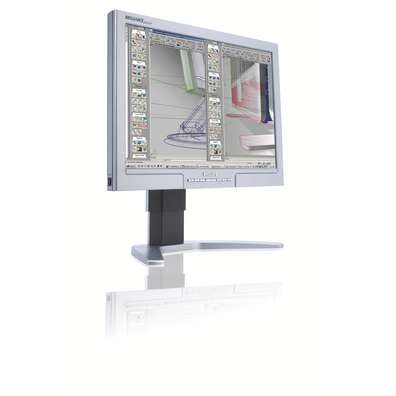

Philips 20" WSXGA LCD Widescreen Monitor

20" WSXGA LCD Widescreen Monitor

Model 20" WSXGA LCD Widescreen MonitorPart no. 200WP7ES/PH

52 specifications Checked today

Display51 cm (20.1")
Resolution1680 x 1050 pixels
ColourSilver
Built-in speaker(s)No
USB hub version2.0
Panel mounting interface100 x 100 mm

See all specifications

Overview

Display: 51 cm (20.1")
Resolution: 1680 x 1050 pixels
Colour: Silver
Built-in speaker(s): No
USB hub version: 2.0
Panel mounting interface: 100 x 100 mm

Brand: Philips
Category: Monitor
Model: 20" WSXGA LCD Widescreen Monitor
Part number: 200WP7ES/PH
Also known as: Philips 20" WSXGA LCD Widescreen Monitor computer monitor 51 cm (20.1") 1680 x 1050 pixels Silver

Specifications

52 specifications in 10 groups

Display

Specification	Value
Display diagonal	51 cm (20.1")
Display resolution	1680 x 1050 pixels
Native aspect ratio	16:10
Touchscreen	No
Display brightness (typical)	300 cd/m²
Response time	8 ms
Aspect ratio	16:10
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.258 x 0.258 mm
Horizontal scan range	30 - 98 kHz
Vertical scan range	56 - 76 Hz
Sync-on-green (SOG)	Yes
Pixel frequency	205 MHz
Separate H/V sync	Yes
Composite sync	Yes
White Chromaticity, 6500K	x = 0.313/y = 0.329
White Chromaticity, 9300K	x = 0.283/y = 0.297

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Design

Specification	Value
Product colour	Silver

Ports & interfaces

Specification	Value
USB hub version	2.0
USB Type-A downstream ports quantity	4
VGA (D-Sub) ports quantity	1
DVI-D ports quantity	1

Ergonomics

Specification	Value
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Adjustable height (max)	13 cm
Swivel angle range	45 - 45°
Tilt angle range	-5 - 25°
Plug and Play	Yes

Power

Specification	Value
Power consumption (typical)	50 W
Power consumption (standby)	1 W

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Relative humidity	20 - 80%

Weight & dimensions

Specification	Value
Width (with stand)	483 mm
Depth (with stand)	215.3 mm
Height (with stand)	402 mm
Weight (with stand)	8.6 kg
Width (without stand)	483 mm
Depth (without stand)	68.7 mm
Height (without stand)	338.5 mm

Packaging data

Specification	Value
Package dimensions (WxDxH)	579 x 267 x 513 mm
Package weight	10.7 kg

Other features

Specification	Value
TV tuner integrated	No
Display viewable area (HxV)	433.4 x 270.9 mm
Power requirements	100 - 240VAC, 50/60Hz
Mean time between failures (MTBF)	50000 h
Certification	CE Mark, Energy Star, FCC-B, UL, CSA, SEMKO, TCO '03, TÜV/GS, TÜV Ergo
Supplied AC adapter type	AC
