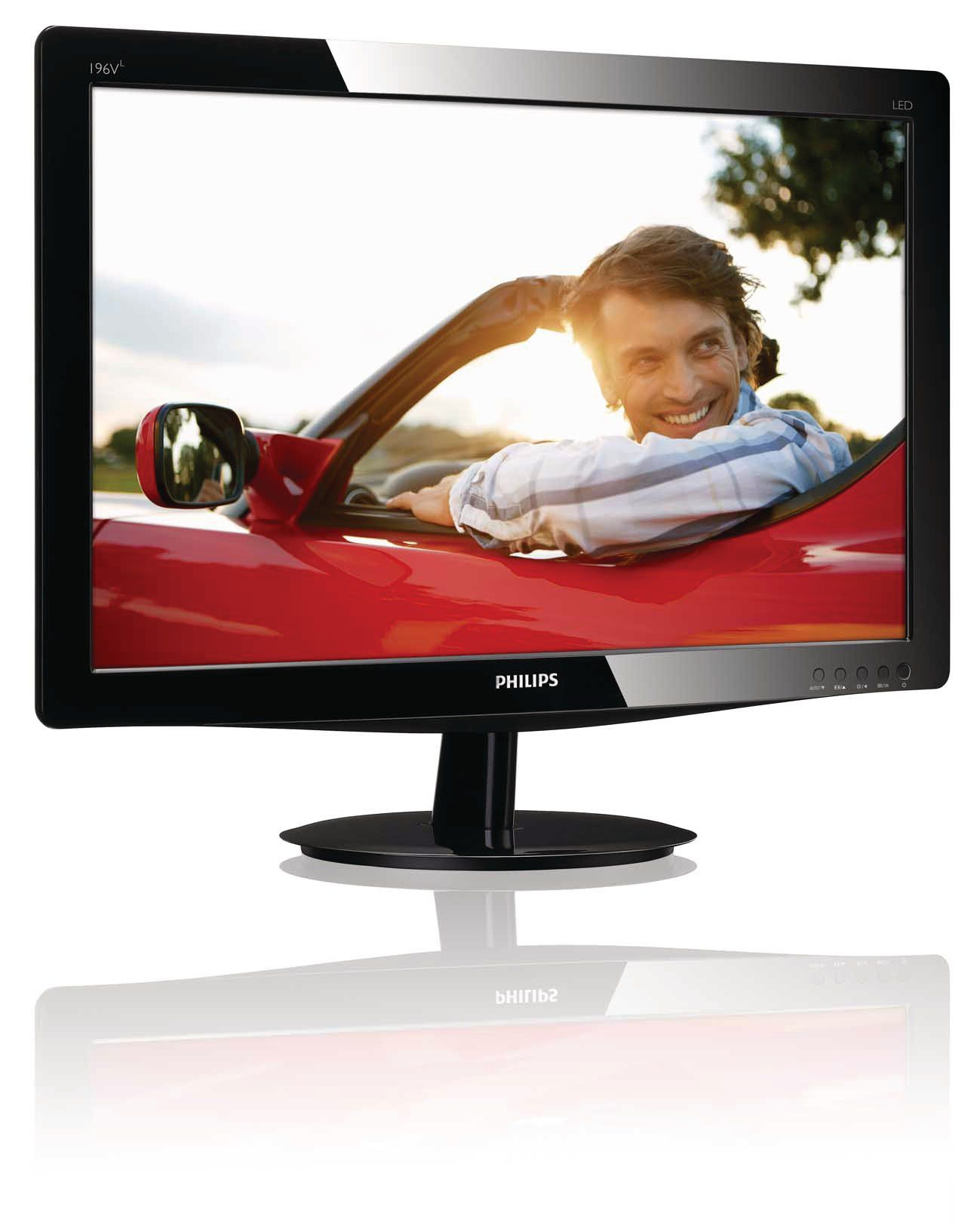

196V3LSB5/70 computer monitor
47 cm (18.5") 1366 x 768 pixels WXGA LCD Black
Model 196V3LSB5/70EAN 8712581634063
81 specifications Checked today
- Display47 cm (18.5")
- Resolution1366 x 768 pixels
- ColourBlack
- NVIDIA G-SYNCNo
- VESA mountingYes
- Power consumption (typical)13.1 W
Overview
- Display
- 47 cm (18.5")
- Resolution
- 1366 x 768 pixels
- Colour
- Black
- NVIDIA G-SYNC
- No
- VESA mounting
- Yes
- Power consumption (typical)
- 13.1 W
- Brand
- Philips
- Category
- Monitor
- Model
- 196V3LSB5/70
- Part number
- 196V3LSB5/70
- EAN / UPC
- 8712581634063
- Also known as
- Philips 196V3LSB5/70 computer monitor 47 cm (18.5") 1366 x 768 pixels WXGA LCD Black
Specifications
81 specifications in 14 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 47 cm (18.5") |
| Display resolution | 1366 x 768 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LCD |
| Touchscreen | No |
| HD type | WXGA |
| Panel type | TFT |
| Backlight type | W-LED |
| Display brightness (typical) | 250 cd/m² |
| Response time | 5 ms |
| Screen shape | Flat |
| Supported graphics resolutions | 1366 x 768 |
| Aspect ratio | 16:9 |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 10000000:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.30 x 0.3 mm |
| Viewable size, horizontal | 41 cm |
| Viewable size, vertical | 23 cm |
| Digital horizontal frequency | 30 - 83 kHz |
| Digital vertical frequency | 56 - 75 Hz |
| Sync-on-green (SOG) | Yes |
| DDC/CI | Yes |
| Colour gamut standard | sRGB |
| 3D | No |
| Separate H/V sync | Yes |
Performance
| Specification | Value |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Windows operating systems supported | Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64 |
| Mac operating systems supported | Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Ma |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | No |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
| HDMI ports quantity | 0 |
| HDCP | Yes |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | No |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 20° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, German, English, Spanish, French, Italian, Portuguese, Russian, Turkish |
| Number of OSD languages | 9 |
| Plug and Play | Yes |
| LED indicators | Operation, Stand-by |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 13.1 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (W x D x H) with stand | 463 x 358 x 204 mm |
| Width (with stand) | 463 mm |
| Depth (with stand) | 204 mm |
| Height (with stand) | 358 mm |
| Weight (with stand) | 3.11 kg |
| Width (without stand) | 463 mm |
| Depth (without stand) | 51 mm |
| Height (without stand) | 294 mm |
| Weight (without stand) | 2.82 kg |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 503 x 394 x 100 mm |
| Package width | 503 mm |
| Package depth | 100 mm |
| Package height | 394 mm |
| Package weight | 4.15 kg |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Silver, ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| Effective viewing area | 409.8 x 230.4 mm |
| Mean time between failures (MTBF) | 30000 h |
| Supplied AC adapter type | LCD |
Recycling data
| Specification | Value |
|---|---|
| Packaging recyclability rate | 100% |
Thin Client
| Specification | Value |
|---|---|
| Thin client installed | No |
