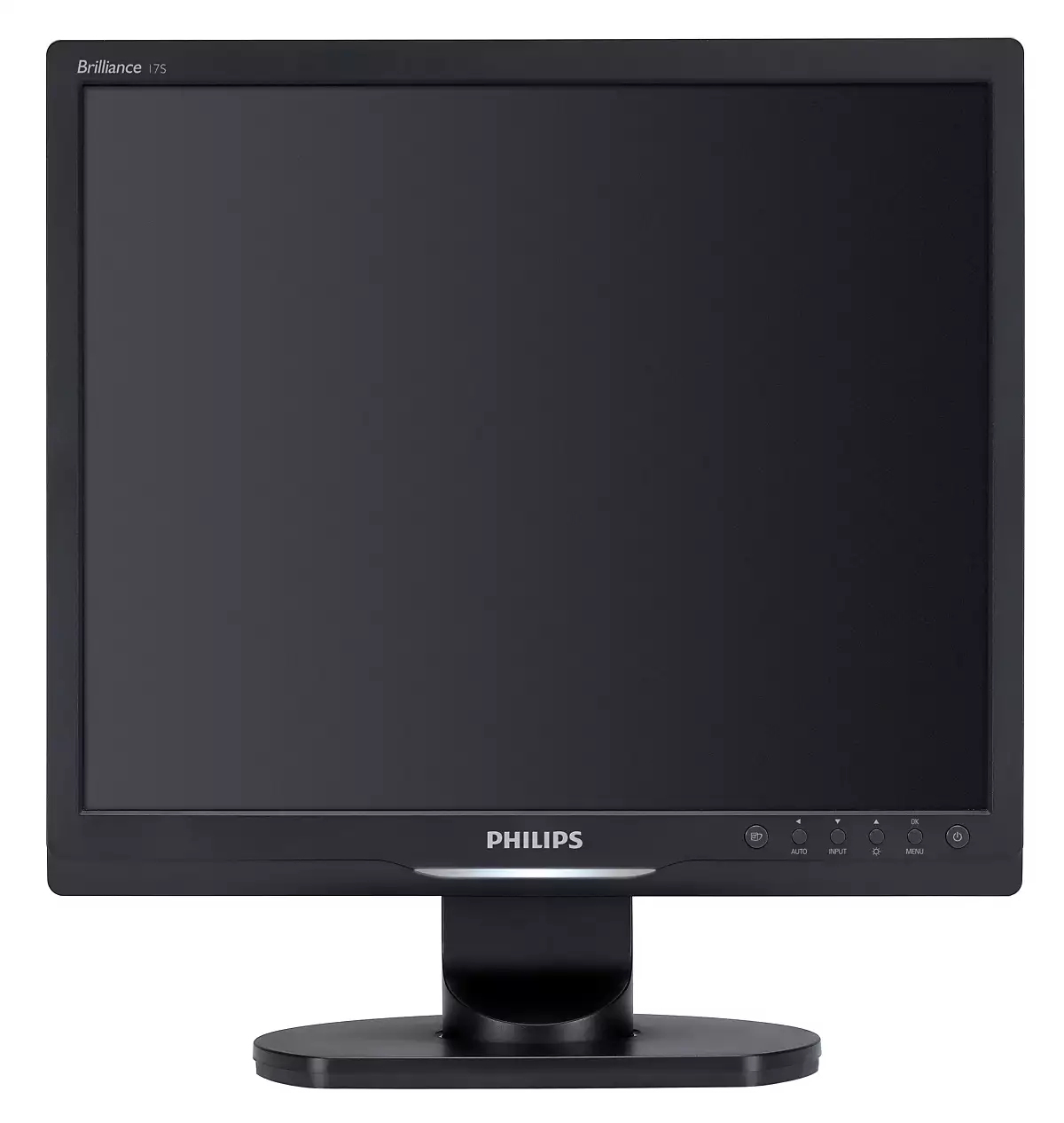

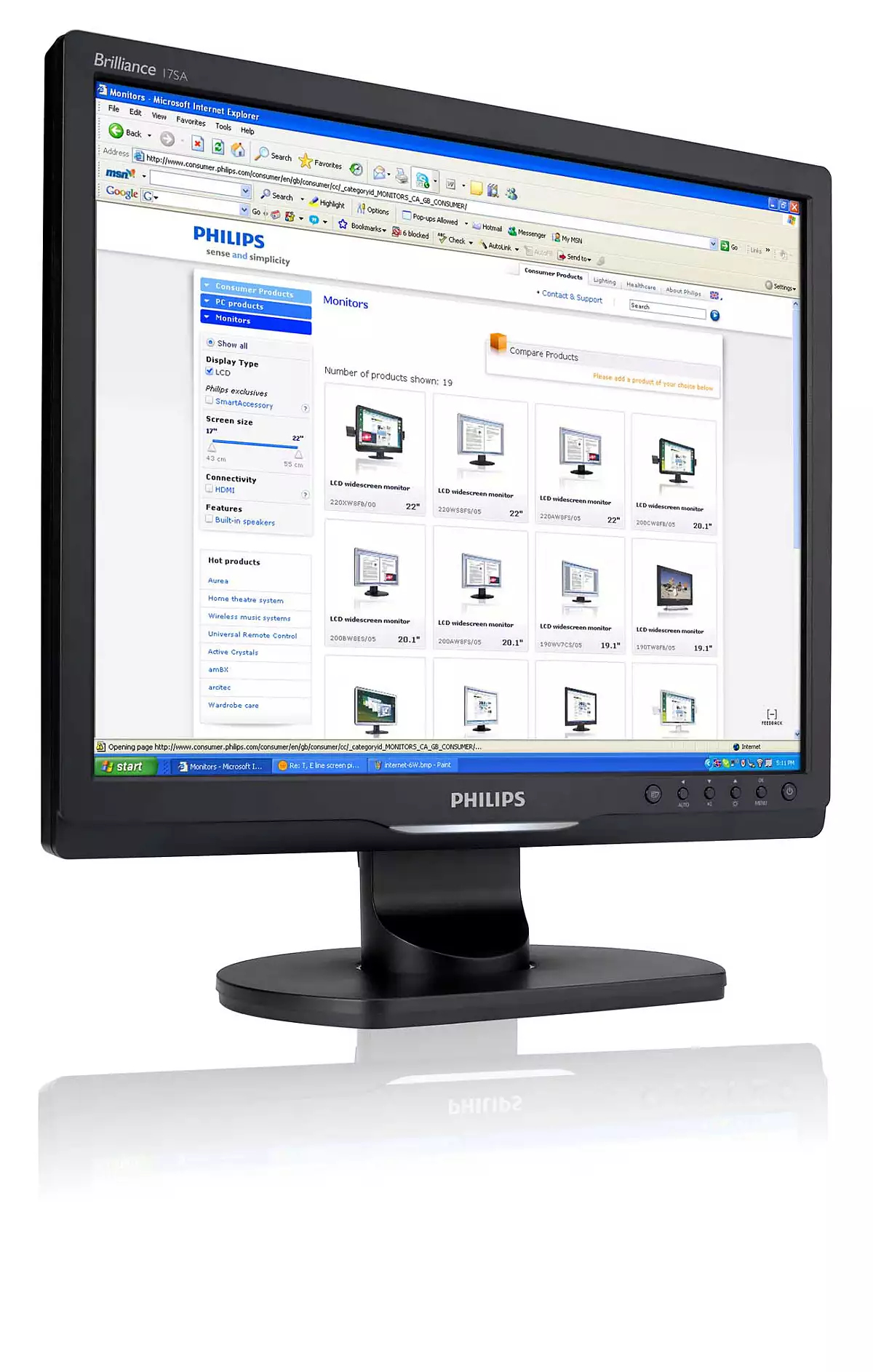

Philips Brilliance LCD monitor with SmartImage 17S1AB/69

Brilliance LCD monitor with SmartImage 17S1AB/69

Model 17S1AB/69EAN 8712581640712

89 specifications Checked today

Display43.2 cm (17")
Resolution1280 x 1024 pixels
ColourBlack
Windows operating systems supportedYes
USB Type-A downstream ports quantity0
Power consumption (typical)15.8 W

See all specifications

Overview

Display: 43.2 cm (17")
Resolution: 1280 x 1024 pixels
Colour: Black
Windows operating systems supported: Yes
USB Type-A downstream ports quantity: 0
Power consumption (typical): 15.8 W

Brand: Philips
Category: Monitor
Model: 17S1AB/69
Part number: 17S1AB/69
EAN / UPC: 8712581640712
Also known as: Philips Brilliance LCD monitor with SmartImage 17S1AB/69

Specifications

89 specifications in 14 groups

Display

Specification	Value
Display diagonal	43.2 cm (17")
Display resolution	1280 x 1024 pixels
Native aspect ratio	5:4
Display technology	LCD
Touchscreen	No
HD type	HD
Panel type	TFT
Display brightness (typical)	250 cd/m²
Response time	5 ms
Screen shape	Flat
Aspect ratio	5:4
Contrast ratio (typical)	800:1
Contrast ratio (dynamic)	25000:1
Viewing angle, horizontal	176°
Viewing angle, vertical	170°
Display number of colours	16.7 million colours
Pixel pitch	0.264 x 0.264 mm
Horizontal scan range	30 - 83 kHz
Vertical scan range	56 - 75 Hz
Sync-on-green (SOG)	Yes
Display diagonal (metric)	43 cm
DDC/CI	Yes
Colour gamut standard	sRGB
3D	No
Separate H/V sync	Yes
Display sRGB	Yes
Display panel size	17 inch/ 43 cm

Performance

Specification	Value
Windows operating systems supported	Yes
Mac operating systems supported	Yes

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	3 W
Built-in camera	No

Design

Specification	Value
Product colour	Black
Feet colour	Black

Ports & interfaces

Specification	Value
USB Type-A downstream ports quantity	0
VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
HDMI ports quantity	0
PC Audio in	Yes
HDCP	Yes

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Tilt adjustment	Yes
Tilt angle range	-5 - 20°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Portuguese, English, French, German, Italian, Russian, Simplified Chinese, Spanish
Number of OSD languages	8
Plug and Play	Yes
LED indicators	Operation, Stand-by

Power

Specification	Value
Power consumption (typical)	15.8 W
Power consumption (standby)	0.8 W
Power consumption (off)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power supply type	Internal

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Relative humidity	20 - 80%

Weight & dimensions

Specification	Value
Width (with stand)	367 mm
Depth (with stand)	179 mm
Height (with stand)	389 mm
Weight (with stand)	3.45 kg
Width (without stand)	367 mm
Depth (without stand)	60 mm
Height (without stand)	322 mm
Weight (without stand)	3.13 kg

Packaging data

Specification	Value
Package width	423 mm
Package depth	149 mm
Package height	450 mm
Package weight	4.66 kg

Sustainability

Specification	Value
Sustainability certificates	EPEAT Silver, ENERGY STAR

Other features

Specification	Value
Compatible operating systems	Mac OS X; Windows 7/Vista/XP/2000/98
TV tuner integrated	No
Exterior finish type	Textured
Monitor sync input signal	Separate Sync; Sync on Green
Signal input	VGA (Analog ); DVI-D (digital, HDCP)
Mean time between failures (MTBF)	50000 h
Certification	RoHS, BSMI, CE Mark, FCC, Class B, GOST, SEMKO, TCO 5.2, TUV Ergo, TUV/GS, UL/cUL
Picture enhancement	SmartImage
Regulatory Approvals	BSMI; CE Mark; FCC Class B; GOST; SEMKO; TCO 5.2; TUV Ergo; TUV/GS; UL/cUL
User controls	Audio; Auto; Brightness; Menu; Power On/Off; SmartImage
Supplied AC adapter type	LCD

Recycling data

Specification	Value
Packaging recyclability rate	100%

Thin Client

Specification	Value
Thin client installed	No
