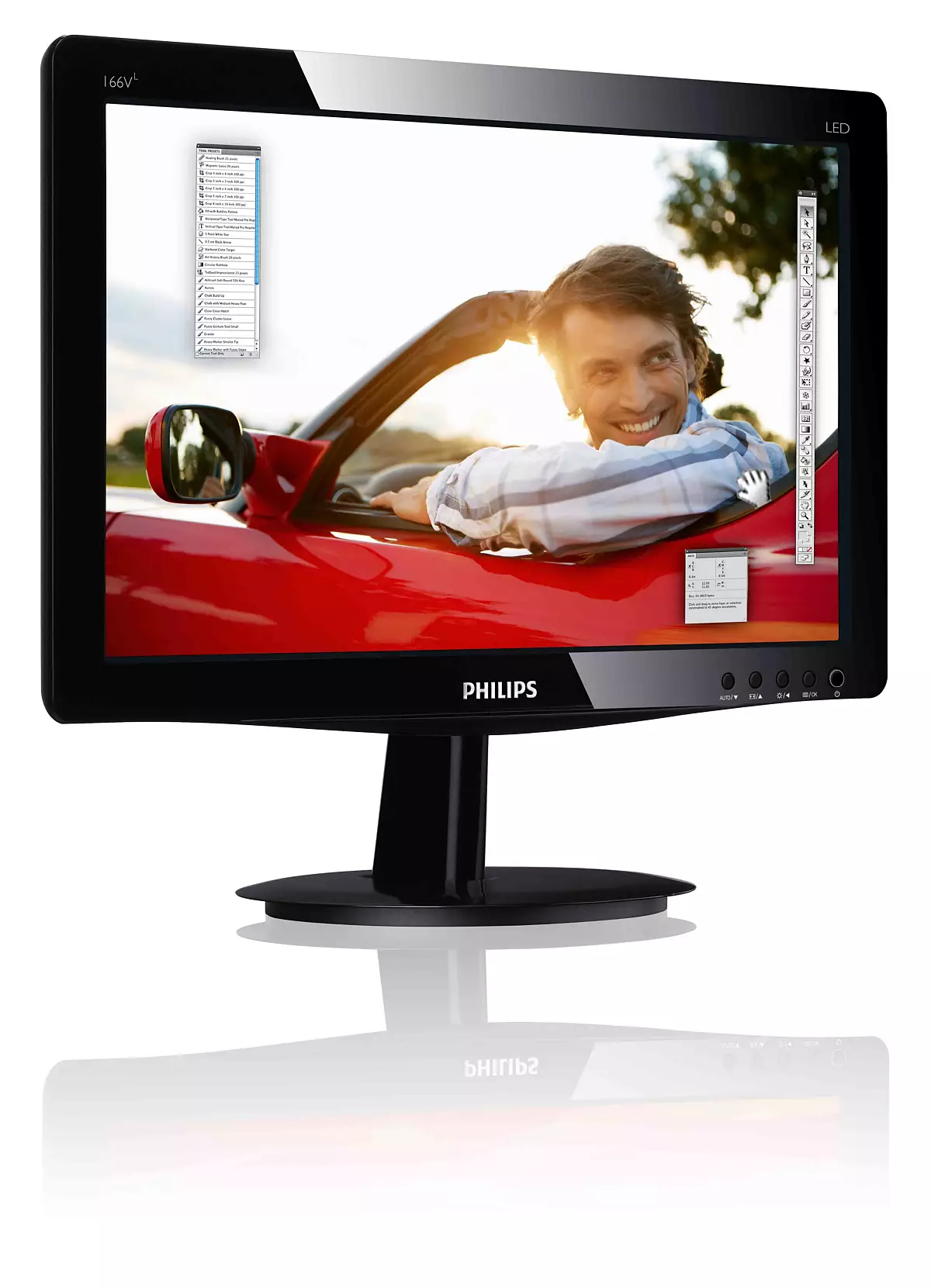

166V3LSB/67 computer monitor

39.6 cm (15.6") 1366 x 768 pixels WXGA LCD Black

Model 166V3LSB/67EAN 8712581601157

90 specifications Checked today

Display39.6 cm (15.6")
Resolution1366 x 768 pixels
ColourBlack
Built-in speaker(s)No
Power consumption (typical)7.5 W
Operating temperature (T-T)0 - 40 °C

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1366 x 768 pixels
Colour: Black
Built-in speaker(s): No
Power consumption (typical): 7.5 W
Operating temperature (T-T): 0 - 40 °C

Brand: Philips
Category: Monitor
Model: 166V3LSB/67
Part number: 166V3LSB/67
EAN / UPC: 8712581601157
Also known as: Philips 166V3LSB/67 computer monitor 39.6 cm (15.6") 1366 x 768 pixels WXGA LCD Black

Specifications

90 specifications in 14 groups

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
Display technology	LCD
Touchscreen	No
HD type	WXGA
Panel type	TFT
LED backlight	Yes
Backlight type	W-LED
Display brightness (typical)	200 cd/m²
Response time	8 ms
Display surface	Matt
Screen shape	Flat
Supported graphics resolutions	1366 x 768
Aspect ratio	16:9
Contrast ratio (typical)	500:1
Contrast ratio (dynamic)	10000000:1
Viewing angle, horizontal	90°
Viewing angle, vertical	50°
Display number of colours	16.7 million colours
Pixel pitch	0.252 x 0.252 mm
Horizontal scan range	30 - 83 kHz
Vertical scan range	56 - 75 Hz
Viewable size, horizontal	36 cm
Viewable size, vertical	21 cm
Sync-on-green (SOG)	Yes
Display diagonal (metric)	39.6 cm
DDC/CI	Yes
Colour gamut standard	sRGB
3D	No
Separate H/V sync	Yes
Display sRGB	Yes
Display panel size	15.6 inch / 39.6 cm

Performance

Specification	Value
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64
Mac operating systems supported	Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.2 Jaguar, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.9 Mavericks

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Design

Specification	Value
Product colour	Black
Feet colour	Black

Ports & interfaces

Specification	Value
Built-in USB hub	No
VGA (D-Sub) ports quantity	1
DVI port	No
HDMI ports quantity	0

Ergonomics

Specification	Value
VESA mounting	No
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	No
Tilt adjustment	Yes
Tilt angle range	-5 - 20°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Portuguese, English, French, German, Italian, Russian, Simplified Chinese, Spanish, Turkish
Number of OSD languages	9
Plug and Play	Yes

Power

Specification	Value
Power consumption (typical)	7.5 W
Power consumption (standby)	0.5 W
Power consumption (off)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power supply type	Internal

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Relative humidity	20 - 80%

Weight & dimensions

Specification	Value
Width (with stand)	392 mm
Depth (with stand)	174 mm
Height (with stand)	318 mm
Weight (with stand)	1.66 kg
Width (without stand)	392 mm
Depth (without stand)	44 mm
Height (without stand)	242 mm
Weight (without stand)	1.41 kg

Packaging data

Specification	Value
Package width	432 mm
Package depth	100 mm
Package height	337 mm
Package weight	2.49 kg

Sustainability

Specification	Value
Sustainability certificates	EPEAT Silver, ENERGY STAR

Other features

Specification	Value
Compatible operating systems	Mac OS X; Windows 7
On/off switch	Yes
TV tuner integrated	No
Exterior finish type	Gloss/Textured
Heavy metals free	Hg (mercury), Pb (lead)
Monitor sync input signal	Separate Sync; Sync on Green
Signal input	VGA (Analog )
Mean time between failures (MTBF)	30000 h
Certification	RoHS, BSMI, CE Mark, FCC Class B, GOST, PSB, SASO, SEMKO, TUV Ergo, TUV/GS, UL/cUL, WEEE
Regulatory Approvals	BSMI; CE Mark; FCC Class B; GOST; PSB; SASO; SEMKO; TUV Ergo; TUV/GS; UL/cUL; WEEE
User controls	Auto; 4:3 / Wide; Brightness; Menu; Power On/Off
Supplied AC adapter type	LED

Recycling data

Specification	Value
Packaging recyclability rate	100%

Thin Client

Specification	Value
Thin client installed	No
