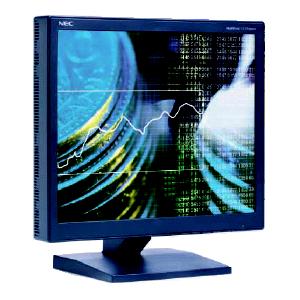

LCD1560VM 15" TFT .29 60kHz TCO99 Black
Model LCD1560VM 15" TFT .29 60kHz TCO99 BlackPart no. 60000906
23 specifications Checked today
- Display38.1 cm (15")
- Resolution1024 x 768 pixels
- Plug and PlayYes
- Width (without stand)344.8 mm
Overview
- Display
- 38.1 cm (15")
- Resolution
- 1024 x 768 pixels
- Plug and Play
- Yes
- Width (without stand)
- 344.8 mm
- Brand
- NEC
- Category
- Monitor
- Model
- LCD1560VM 15" TFT .29 60kHz TCO99 Black
- Part number
- 60000906
- Also known as
- NEC LCD1560VM 15" TFT .29 60kHz TCO99 Black computer monitor 38.1 cm (15") 1024 x 768 pixels
Specifications
23 specifications in 6 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 38.1 cm (15") |
| Display resolution | 1024 x 768 pixels |
| Touchscreen | No |
| Display brightness (typical) | 300 cd/m² |
| Response time | 26 ms |
| Contrast ratio (typical) | 450:1 |
| Viewing angle, horizontal | 150° |
| Viewing angle, vertical | 110° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.297 |
| Horizontal scan range | 31.5 - 60 kHz |
| Vertical scan range | 56.2 - 75.1 Hz |
| Viewable size, horizontal | 30.4 cm |
| Viewable size, vertical | 22.8 cm |
Ports & interfaces
| Specification | Value |
|---|---|
| I/O ports | Analog: 1 x Mini D-sub 15 pin; Digital: 1 x DVI-D |
Ergonomics
| Specification | Value |
|---|---|
| Plug and Play | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (without stand) | 344.8 mm |
| Depth (without stand) | 181 mm |
| Height (without stand) | 333.5 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Drivers & Utilities |
Other features
| Specification | Value |
|---|---|
| Audio system | 2 x 1W RMS speakers – integrated |
| Power requirements | 100–120 V/220-240 V, integrated power supply |
| Certification | CE; TÜV GS; TÜV ERGONOMIE; UL/C-UL or CSA; FCC Class B; PCT GOST; ISO 13406-2; TCO 95; Energy Star; Energy 2000; PCBC/B-mark |
