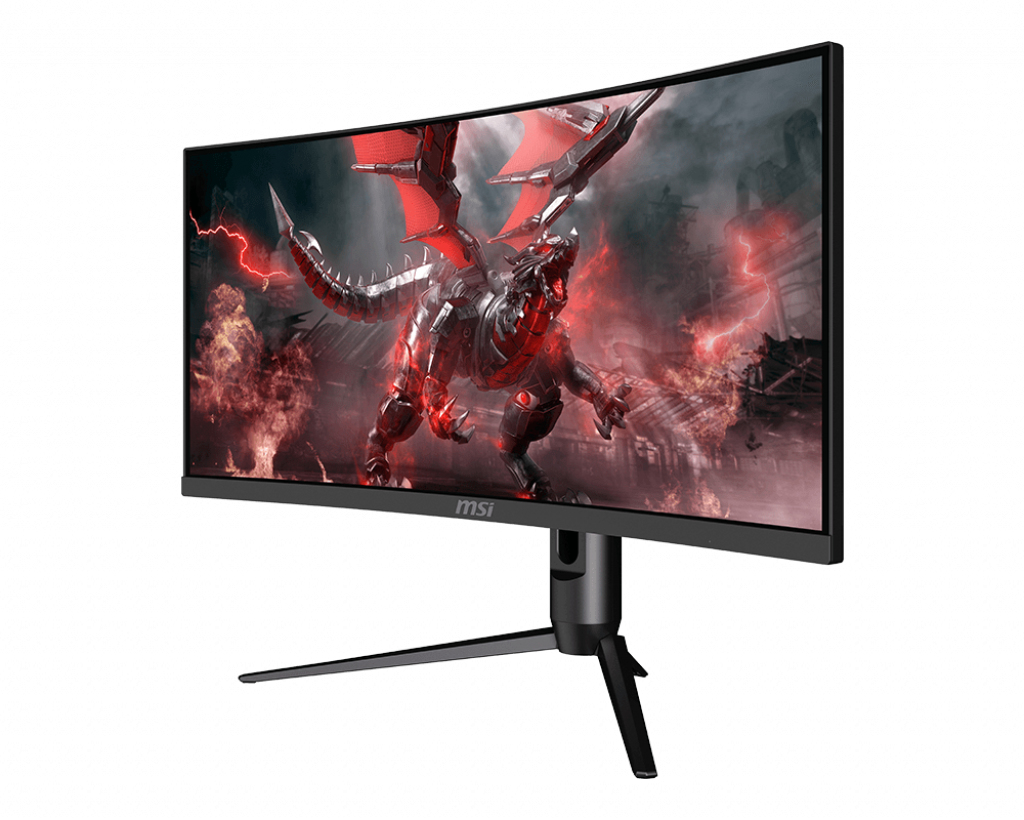

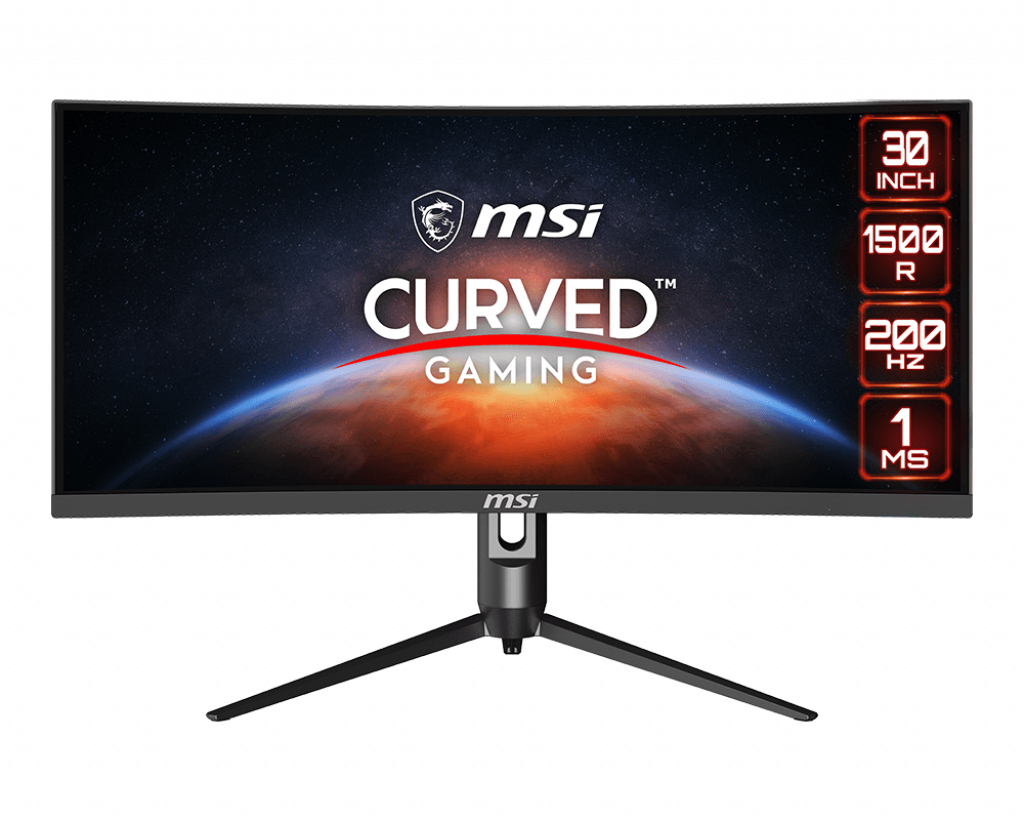

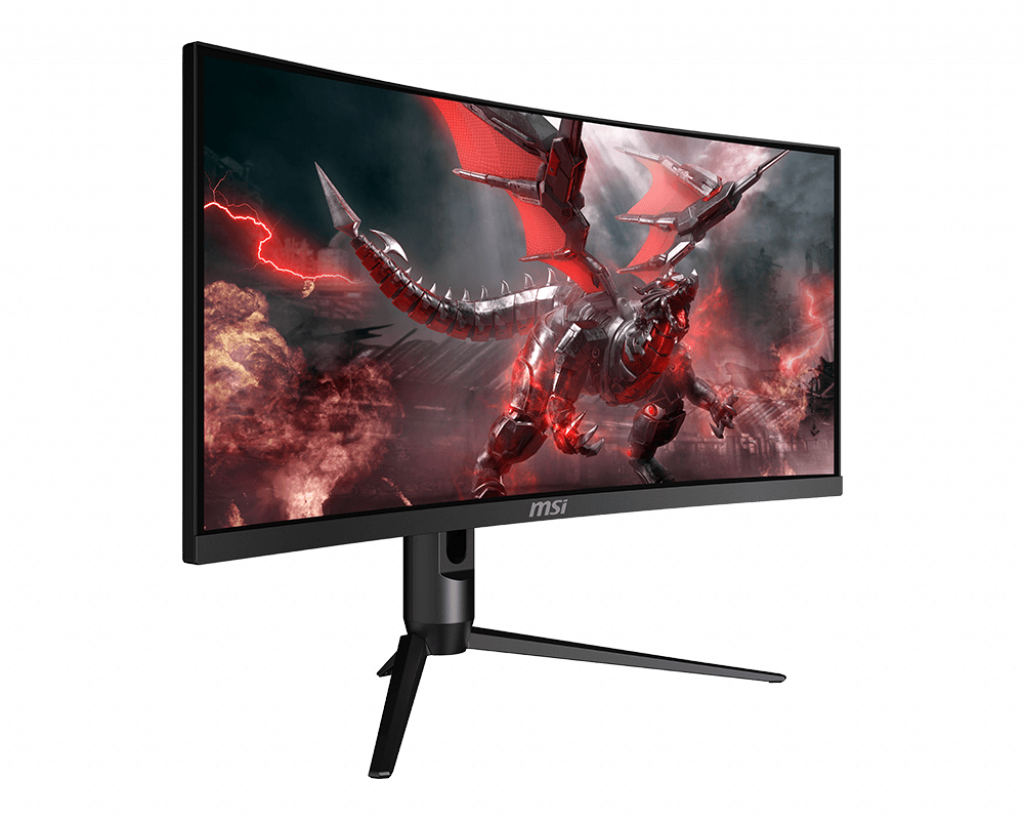

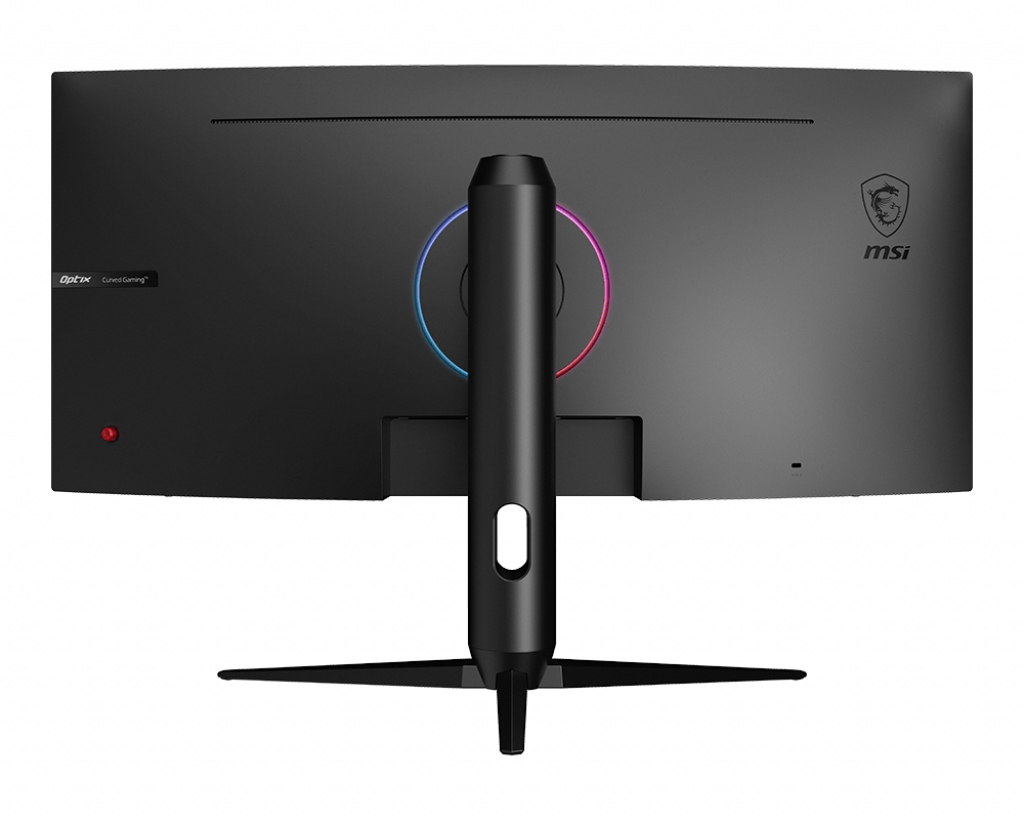

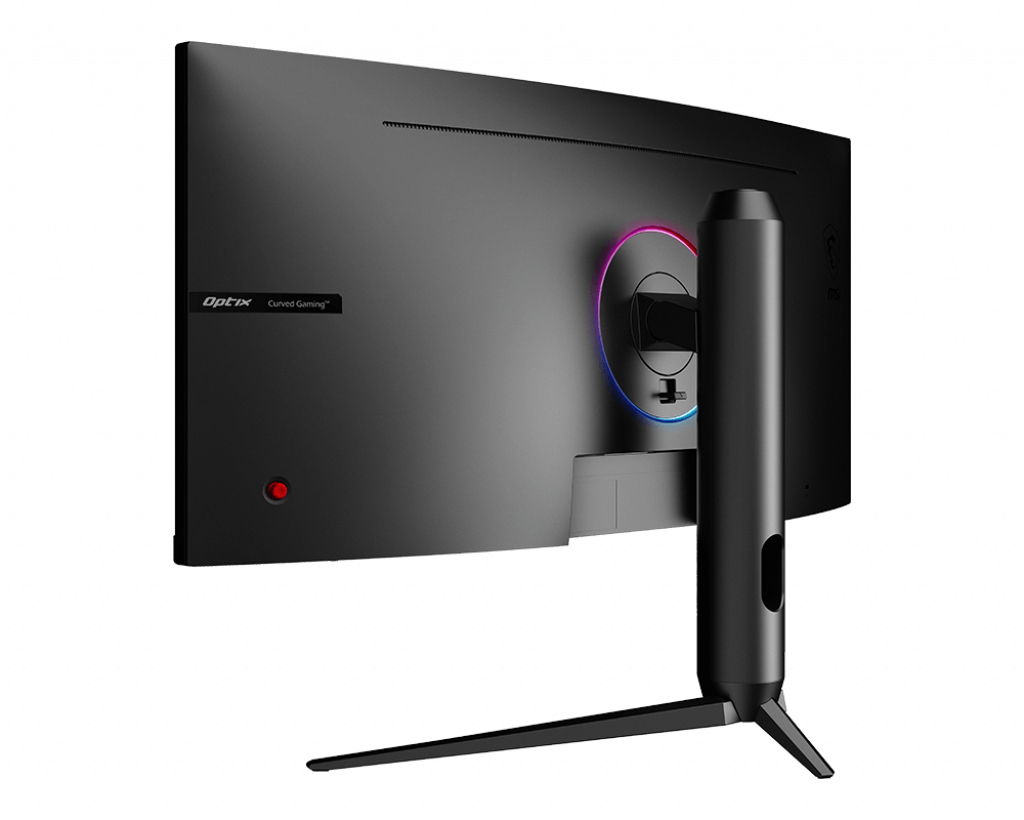

Optix MAG301CR2
Model Optix MAG301CR2Part no. OPTIX MAG301CR2EAN 824142223604
81 specifications Checked today
- Display74.9 cm (29.5")
- Resolution2560 x 1080 pixels
- Energy classF
- ColourBlack
- NVIDIA G-SYNCNo
- Market positioningGaming
Overview
- Display
- 74.9 cm (29.5")
- Resolution
- 2560 x 1080 pixels
- Energy class
- F
- Colour
- Black
- NVIDIA G-SYNC
- No
- Market positioning
- Gaming
- Brand
- MSI
- Category
- Monitor
- Model
- Optix MAG301CR2
- Part numbers
- OPTIX MAG301CR2, 00824142223567
- EAN / UPC
- 824142223604, 824142223567, 824142223550, 4719072748739
- Also known as
- MSI Optix MAG301CR2 computer monitor 74.9 cm (29.5") 2560 x 1080 pixels WFHD LCD Black
Specifications
81 specifications in 11 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 74.9 cm (29.5") |
| Display resolution | 2560 x 1080 pixels |
| Native aspect ratio | 21:9 |
| Display technology | LCD |
| Touchscreen | No |
| HD type | WFHD |
| Panel type | VA |
| Display brightness (typical) | 300 cd/m² |
| Response time | 1 ms |
| Anti-glare screen | Yes |
| Screen shape | Curved |
| Screen curvature rating | 1500R |
| Contrast ratio (typical) | 3000:1 |
| Contrast ratio (dynamic) | 1000000:1 |
| Maximum refresh rate | 200 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.2697 x 0.2697 mm |
| Horizontal scan range | 66 - 250.7 kHz |
| Vertical scan range | 48 - 200 Hz |
| Viewable size, horizontal | 69 cm |
| Viewable size, vertical | 29.1 cm |
| Colour gamut standard | DCI-P3 |
| Colour gamut | 82% |
Performance
| Specification | Value |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | Yes |
| AMD FreeSync type | FreeSync Premium |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Market positioning | Gaming |
| Product colour | Black |
| Frameless design | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB upstream port type | USB Type-B |
| Number of upstream ports | 1 |
| USB Type-A downstream ports quantity | 2 |
| USB Type-C downstream ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| DVI port | No |
| HDMI | Yes |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Audio input | No |
| Headphone out | Yes |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | Yes |
| Adjustable height (max) | 11 cm |
| Pivot | Yes |
| Pivot angle | -90 - 90° |
| Swivelling | Yes |
| Swivel angle range | -30 - 30° |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 20° |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (SDR) | F |
| Energy consumption (SDR) per 1000 hours | 26 kWh |
| Power consumption (typical) | 90 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Input current | 4.74 A |
| AC adapter output voltage | 19 V |
| Energy efficiency scale | A to G |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 702.9 mm |
| Depth (with stand) | 286.8 mm |
| Height (with stand) | 401.9 mm |
| Weight (with stand) | 5.8 kg |
| Width (without stand) | 703 mm |
| Depth (without stand) | 103 mm |
| Height (without stand) | 320 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 803 mm |
| Package depth | 210 mm |
| Package height | 475 mm |
| Package weight | 8.21 kg |
Other features
| Specification | Value |
|---|---|
| Compatibility | PC, Mac, PS5™, PS4™, Xbox, Mobile, Notebook |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85285210 |
