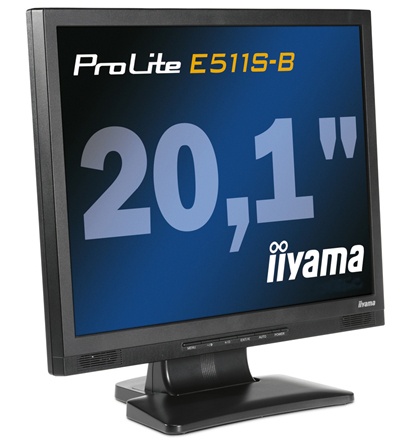

iiyama E511S-B2U 20.1" TFT TCO99 Black

E511S-B2U 20.1" TFT TCO99 Black

Model E511S-B2U 20.1" TFT TCO99 BlackPart no. E511S-B2U

36 specifications Checked today

Display51 cm (20.1")
Resolution1600 x 1200 pixels
ColourBlack
Market positioningBusiness
USB Type-A downstream ports quantity0
Panel mounting interface100 x 100 mm

See all specifications

Overview

Display: 51 cm (20.1")
Resolution: 1600 x 1200 pixels
Colour: Black
Market positioning: Business
USB Type-A downstream ports quantity: 0
Panel mounting interface: 100 x 100 mm

Brand: iiyama
Category: Monitor
Model: E511S-B2U 20.1" TFT TCO99 Black
Part number: E511S-B2U
Also known as: iiyama E511S-B2U 20.1" TFT TCO99 Black computer monitor 51 cm (20.1") 1600 x 1200 pixels

Specifications

36 specifications in 7 groups

Display

Specification	Value
Display diagonal	51 cm (20.1")
Display resolution	1600 x 1200 pixels
Touchscreen	No
Display brightness (typical)	300 cd/m²
Response time	8 ms
Contrast ratio (typical)	900:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.78 million colours
Pixel pitch	0.255
Horizontal scan range	24 - 80 kHz
Vertical scan range	55 - 85 Hz
Viewable size, horizontal	40.8 cm
Viewable size, vertical	30.6 cm
Viewable size diagonal	51 cm

Design

Specification	Value
Market positioning	Business
Product colour	Black

Ports & interfaces

Specification	Value
USB Type-A downstream ports quantity	0
VGA (D-Sub) ports quantity	1
DVI-D ports quantity	1
DVI-I ports quantity	0

Ergonomics

Specification	Value
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Tilt angle range	-4 - 25°
Plug and Play	Yes

Power

Specification	Value
Power consumption (typical)	55 W
Power consumption (standby)	2 W

Weight & dimensions

Specification	Value
Width (without stand)	446 mm
Depth (without stand)	215 mm
Height (without stand)	423.5 mm
Weight (without stand)	7.5 kg

Other features

Specification	Value
Power requirements	AC 100 - 240 V, 50/60 Hz
Safety	CE, TÜV GS, FCC-B, UL/C-UL, VCCI-B
Power management	VESA DPMS, ENERGY STAR
Certification	TCO 99, TÜV ERGO (ISO 13406-2), MPR III
