Series 5 Pro 14 inch WQXGA Portable Monitor - 514pn

Model Series 5 Pro 14 inch WQXGA Portable Monitor - 514pnPart no. B88JWE9EAN 198990468297

85 specifications Checked today

Overview

85 specifications in 15 groups

Specification	Value
Display diagonal	35.6 cm (14")
Native aspect ratio	16:10
Display technology	LCD
HD type	WQXGA
Panel type	IPS Black
LED backlight	Yes
Backlight type	Edge LED
Display brightness (typical)	400 cd/m²
Display brightness	400 cd/m²
Response time	7 ms
Response time measurement type	GTG (Gray to Gray)
Display surface	Matt
Anti-glare screen	Yes
Screen shape	Flat
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA)
Contrast ratio (typical)	2000:1
Contrast ratio (dynamic)	10000000:1
Maximum refresh rate	75 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.7 million colours
Pixel pitch	0.1178 x 0.1178 mm
Pixel density	216 ppi
Horizontal scan range	31 - 124 kHz
Vertical scan range	50 - 75 Hz

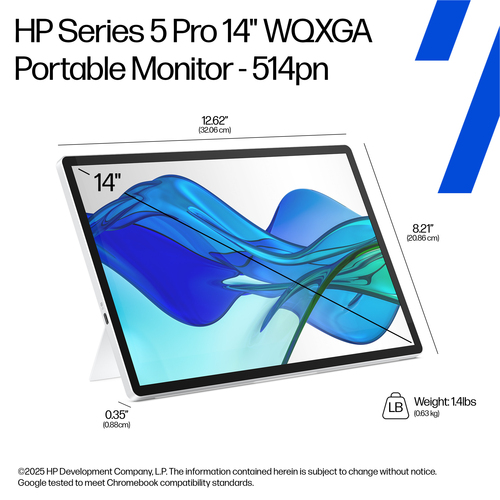

Viewable size, horizontal	30.1 cm
Viewable size, vertical	18.8 cm
Display diagonal (metric)	35.6 cm
Haze rate	25%
Surface hardness	3H
Colour depth	8 bit
Colour gamut	100%
Display bezel technology	Narrow Border

Specification	Value
Flicker-free technology	Yes
HP segment	Business

Specification	Value
Built-in camera	No

Specification	Value

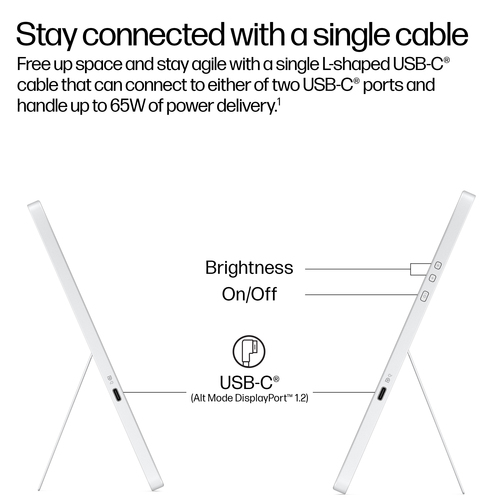

USB Type-C downstream ports quantity	2
USB Type-C DisplayPort Alternate Mode	Yes
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	65 W
HDCP	Yes

Specification	Value
Energy efficiency class (SDR)	B
Energy consumption (SDR) per 1000 hours	5.6 kWh
Power consumption (typical)	7 W
Power consumption (max)	13 W
Power supply type	External

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Operating altitude	0 - 5000 m
Non-operating altitude	0 - 12192 m
Non-operating relative humidity (non-condensing)	20 - 80%

Specification	Value
Cables included	USB Type-C to USB Type-C
Quick start guide	Yes
Bundled software	HP Display Center; HP Client Management Script Library

Specification	Value
Sustainability certificates	ENERGY STAR, EPEAT, EPEAT Climate +
Sustainable technologies and materials	At least 55% recycled aluminum; Contains ocean-bound plastic; Contains 20% recycled glass in the monitor panel; Molded paper pulp cushion inside box is made of 100% recycled or certified sources; Outside box and corrugated cushions are 100% from certified or recycled sources and recyclable; At least
Sustainability compliance	Yes

Specification	Value
Carbon emissions, end-of-life (kg of CO2e)	0.561
Carbon emissions, logistics (kg of CO2e)	0.849
Carbon emissions, manufacturing (kg of CO2e)	66.456
Total carbon emissions, w/o use phase (kg of CO2e)	15.302
Total carbon footprint (kg of CO2e)	83.168

Specification	Value
Country of origin	China
Compliance certificates	CCC, CB, EAC, BIS, Federal Communications Commission (FCC), CE, BSMI
Low halogen	Yes
Manufacturer warranty	HP five-year limited warranty
Weight	630 g
UNSPSC-code	43211902
