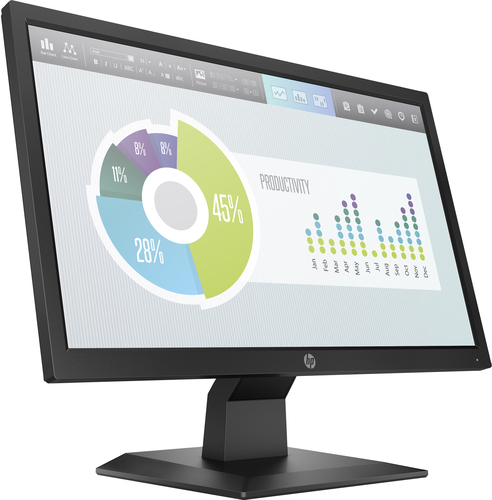

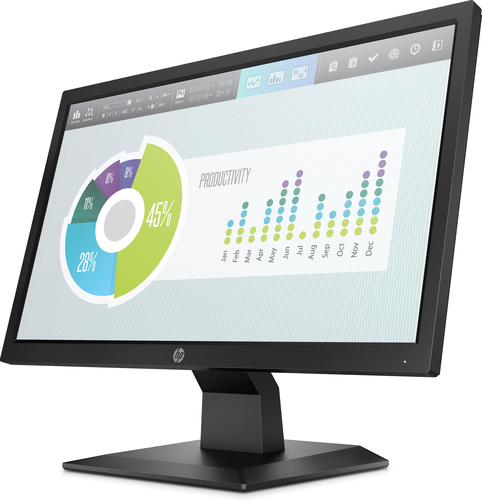

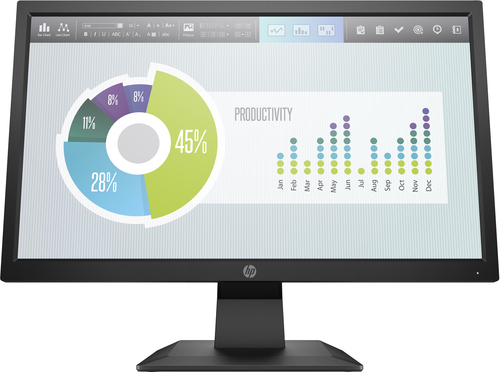

P204v 19.5-inch Monitor

Model P204v 19.5-inch MonitorPart no. 5RD66AA#ABBEAN 196188081549

112 specifications Checked today

Overview

112 specifications in 16 groups

Specification	Value
Display diagonal	49.5 cm (19.5")
Display resolution	1600 x 900 pixels
Native aspect ratio	16:9
Display technology	LCD
Touchscreen	No
HD type	HD+
Panel type	TN
Display brightness (typical)	200 cd/m²
Response time	5 ms
Response time measurement type	GTG (Gray to Gray)
Display surface	Matt
Anti-glare screen	Yes
Screen shape	Flat
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800, 1366 x 768, 1440 x 900 (WXGA+), 1600 x 900, 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA)
Aspect ratio	16:9
Contrast ratio (typical)	600:1
Contrast ratio (dynamic)	10000000:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	90°
Viewing angle, vertical	50°
Display number of colours	16.7 million colours
Pixel pitch	0.27 x 0.27 mm
Pixel density	94 ppi
Horizontal scan range	30 - 70 kHz
Vertical scan range	50 - 60 Hz
Viewable size, horizontal	43.2 cm
Viewable size, vertical	24 cm
Display diagonal (metric)	49.5 cm
Colour depth	8 bit
Colour gamut standard	NTSC
Colour gamut	72%
NTSC coverage (typical)	72%
3D	No

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Height adjustment	No
Tilt adjustment	Yes
Tilt angle range	-5 - 25°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, German, Dutch, English, Spanish, French, Italian, Japanese, Portuguese
Number of OSD languages	10
Plug and Play	Yes

Specification	Value
Energy efficiency class (SDR)	C
Energy efficiency class (HDR)	C
Energy consumption (SDR) per 1000 hours	9.4 kWh
Power consumption (typical)	15 W
Power consumption (standby)	0.3 W
Power consumption (max)	16 W
Power consumption (off)	0.1 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power supply type	Internal
Energy efficiency scale	A to G

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	20 - 80%

Specification	Value
Sustainability certificates	ENERGY STAR
Sustainable technologies and materials	Arsenic-free display glass; Low halogen; Mercury-free display backlights; TCO Certified
Sustainability compliance	Yes

Specification	Value
Carbon emissions, end-of-life (kg of CO2e)	1
Carbon emissions, logistics (kg of CO2e)	1
Carbon emissions, manufacturing (kg of CO2e)	69
Total carbon emissions, w/o use phase (kg of CO2e)	62
Total carbon footprint (kg of CO2e)	130

Specification	Value
Country of origin	China
AC adapter included	Yes
TV tuner integrated	No
Compliance certificates	BIS, BSMI, CB, CCC, CECP, CEL, EAC, Federal Communications Commission (FCC), ICES, KC, KCC, RCM, VCCI, WEEE, cTUVus
Depth	48.7 mm
Height	278.7 mm
Weight	2.81 kg
Width	462.6 mm
Certification	Australian-New Zealand MEPS; BIS; BSMI; CB; CCC; CECP; CEL; cTUVus; EAC; ErP; FCC; HSMI; ICES; KC; KCC; Mexico CoC; MSIP; PSB; RCM; VCCI; Vietnam MEPS; WEEE; ISC; South Africa Energy; ISO 9001; TUS-GS; eStandby; EC1062; CEL Grade 2
UNSPSC-code	43211902
Supplied AC adapter type	196188081563
