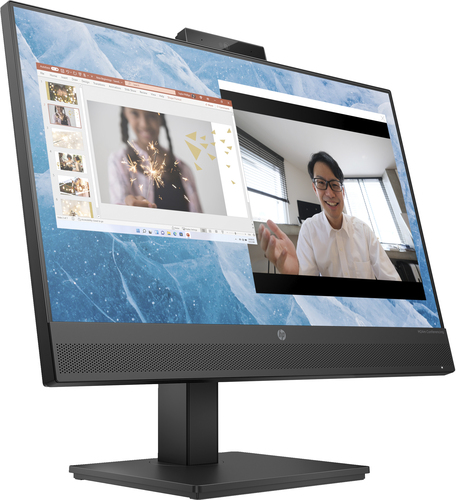

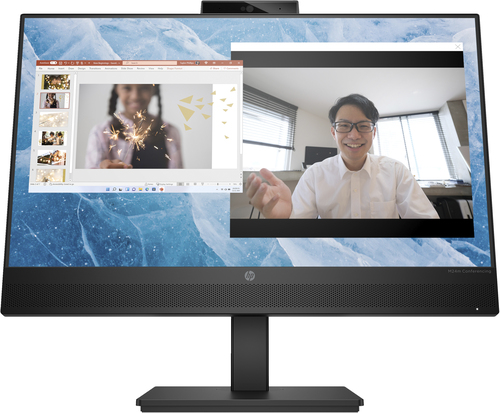

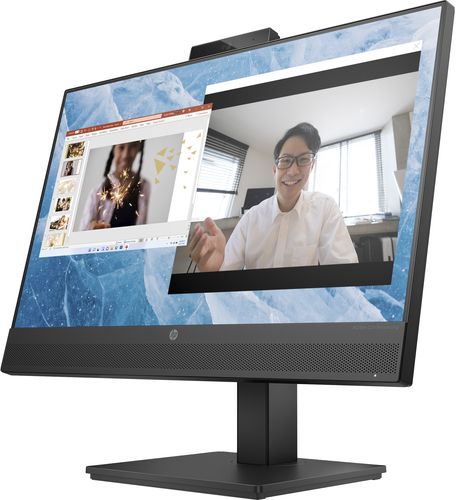

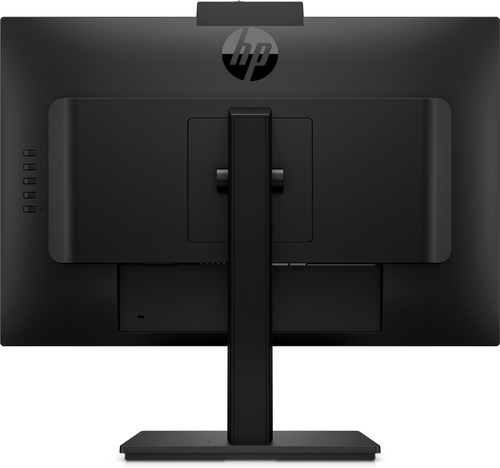

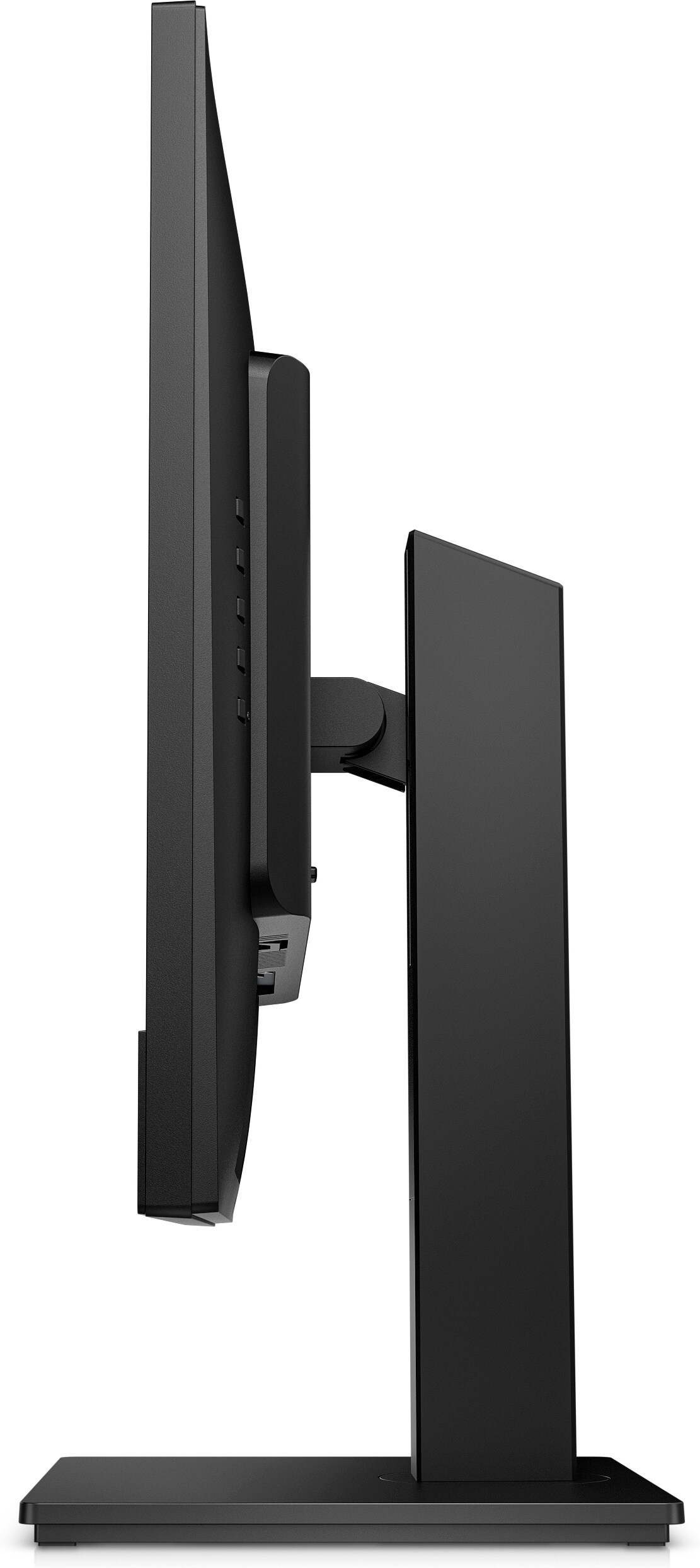

M24m Conferencing Monitor
Model M24m Conferencing MonitorPart no. 678U5AAEAN 5715063348161
117 specifications Checked yesterday
- Display60.5 cm (23.8")
- Resolution1920 x 1080 pixels
- Energy classE
- Weight6.3 kg
- ColourBlack
- Flicker-free technologyYes
Overview
- Display
- 60.5 cm (23.8")
- Resolution
- 1920 x 1080 pixels
- Energy class
- E
- Weight
- 6.3 kg
- Colour
- Black
- Flicker-free technology
- Yes
- Brand
- HP
- Category
- Monitor
- Model
- M24m Conferencing Monitor
- Part number
- 678U5AA
- EAN / UPC
- 5715063348161, 196548350407, 197192360361, 197192720332 +5 more
- Also known as
- HP M24m Conferencing Monitor
Specifications
117 specifications in 15 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 60.5 cm (23.8") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| HD type | Full HD |
| Panel type | IPS |
| Backlight type | Edge LED |
| Display brightness (typical) | 300 cd/m² |
| Response time | 5 ms |
| Display surface | Matt |
| Anti-glare screen | Yes |
| Screen shape | Flat |
| Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800, 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA) |
| Aspect ratio | 16:9 |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 8000000:1 |
| Maximum refresh rate | 75 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.2745 x 0.2745 mm |
| Pixel density | 93 ppi |
| Horizontal scan range | 30 - 85 kHz |
| Vertical scan range | 48 - 75 Hz |
| Viewable size, horizontal | 52.7 cm |
| Viewable size, vertical | 29.6 cm |
| Display diagonal (metric) | 60.5 cm |
| Surface hardness | 3H |
| Colour depth | 8 bit |
| Colour gamut standard | sRGB |
| Colour gamut | 99% |
| sRGB coverage (typical) | 99% |
| Display bezel technology | Micro-Edge |
Performance
| Specification | Value |
|---|---|
| Flicker-free technology | Yes |
| Low Blue Light technology | Yes |
| HP segment | Business |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 4 W |
| Built-in camera | Yes |
| Megapixel (approx.) | 5 MP |
| Built-in microphone | Yes |
Design
| Specification | Value |
|---|---|
| Market positioning | Business |
| Product colour | Black |
| Detachable stand | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB Type-A downstream ports quantity | 2 |
| USB Type-C downstream ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 65 W |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Audio output | Yes |
| Headphone out | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| HDCP | Yes |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Height adjustment | Yes |
| Adjustable height (max) | 10 cm |

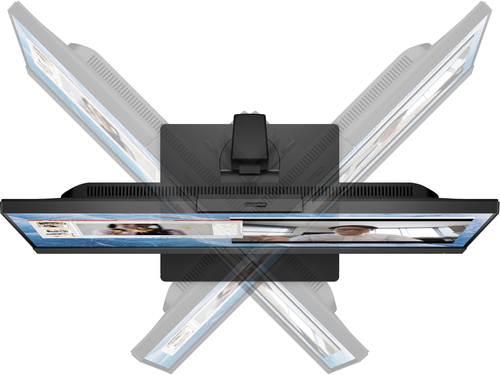

| Swivelling | Yes |
| Swivel angle range | -45 - 45° |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 23° |
| On Screen Display (OSD) | Yes |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | E |
| Energy consumption (SDR) per 1000 hours | 16 kWh |
| Power consumption (typical) | 30 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 120 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply type | Internal |
| Energy efficiency scale | A to G |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 539.5 mm |
| Depth (with stand) | 211.4 mm |
| Height (with stand) | 523.4 mm |
| Weight (with stand) | 6.3 kg |
| Width (without stand) | 539.5 mm |
| Depth (without stand) | 47.9 mm |
| Height (without stand) | 372.2 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 596 mm |
| Package depth | 195 mm |
| Package height | 416 mm |
| Package weight | 9.2 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Stand included | Yes |
| Cables included | AC, USB Type-C to USB Type-C |
| Quick start guide | Yes |
| Bundled software | HP Display Center |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Carbon footprint
| Specification | Value |
|---|---|
| Carbon emissions, end-of-life (kg of CO2e) | 4 |
| Carbon emissions, logistics (kg of CO2e) | 3 |
| Carbon emissions, manufacturing (kg of CO2e) | 131 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 72 |
| Total carbon footprint (kg of CO2e) | 210 |
Other features
| Specification | Value |
|---|---|
| Country of origin | China |
| Introduction year | 2022 |
| Compliance certificates | CB, CE |
| Depth | 47.9 mm |
| Height | 372.2 mm |
| Weight | 6.3 kg |
| Width | 539.5 mm |
| Certification | CB; CE; EAC (Russia); EPA; ISO 9241-307; Microsoft WHQL Certification; TCO Certified; TCO Certified Edge; TUV and GS Mark (German ergonomic); TUV LBL; Ukraine Energy label; UAE; Belarus Energy |
| UNSPSC-code | 43211902 |
| Supplied AC adapter type | 197192360361 |
Technical details
| Specification | Value |
|---|---|
| General Product Safety Regulation (GPSR) URL | https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true |
