E24u G5 FHD USB-C Monitor

Model E24u G5 FHD USB-C MonitorPart no. 6N4D0AA#ABAEAN 196786295300

121 specifications Checked today

Overview

Brand: HP
Category: Monitor
Model: E24u G5 FHD USB-C Monitor
Part numbers: 6N4D0AA#ABA, 6N4D0AA, 6N4D0AA#ABB, 6N4D0A5, 6N4D0E9, 6N4D0AT +1 more
EAN / UPC: 196786295300, 196786295201, 196786295218, 196786295225 +33 more
Also known as: HP E24u G5 FHD USB-C Monitor

121 specifications in 16 groups

Specification	Value
Display diagonal	60.5 cm (23.8")
Display resolution	1920 x 1080 pixels
Native aspect ratio	16:9
Display technology	LCD
Touchscreen	No
HD type	Full HD
Panel type	IPS
LED backlight	Yes
Backlight type	Edge LED
Display brightness (typical)	250 cd/m²
Display brightness	250 cd/m²
Response time	5 ms
Response time measurement type	GTG (Gray to Gray)
Display surface	Matt
Anti-glare screen	Yes
Screen shape	Flat
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800, 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA)
Aspect ratio	16:9
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	8000000:1
Maximum refresh rate	75 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.7 million colours
Pixel pitch	0.27 x 0.27 mm
Pixel density	93 ppi
Horizontal scan range	30 - 86 kHz
Vertical scan range	50 - 75 Hz
Viewable size, horizontal	52.7 cm
Viewable size, vertical	29.6 cm
Display diagonal (metric)	60.5 cm
Surface hardness	3H
Colour depth	8 bit
Colour gamut	99%
sRGB coverage (typical)	99%

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Specification	Value

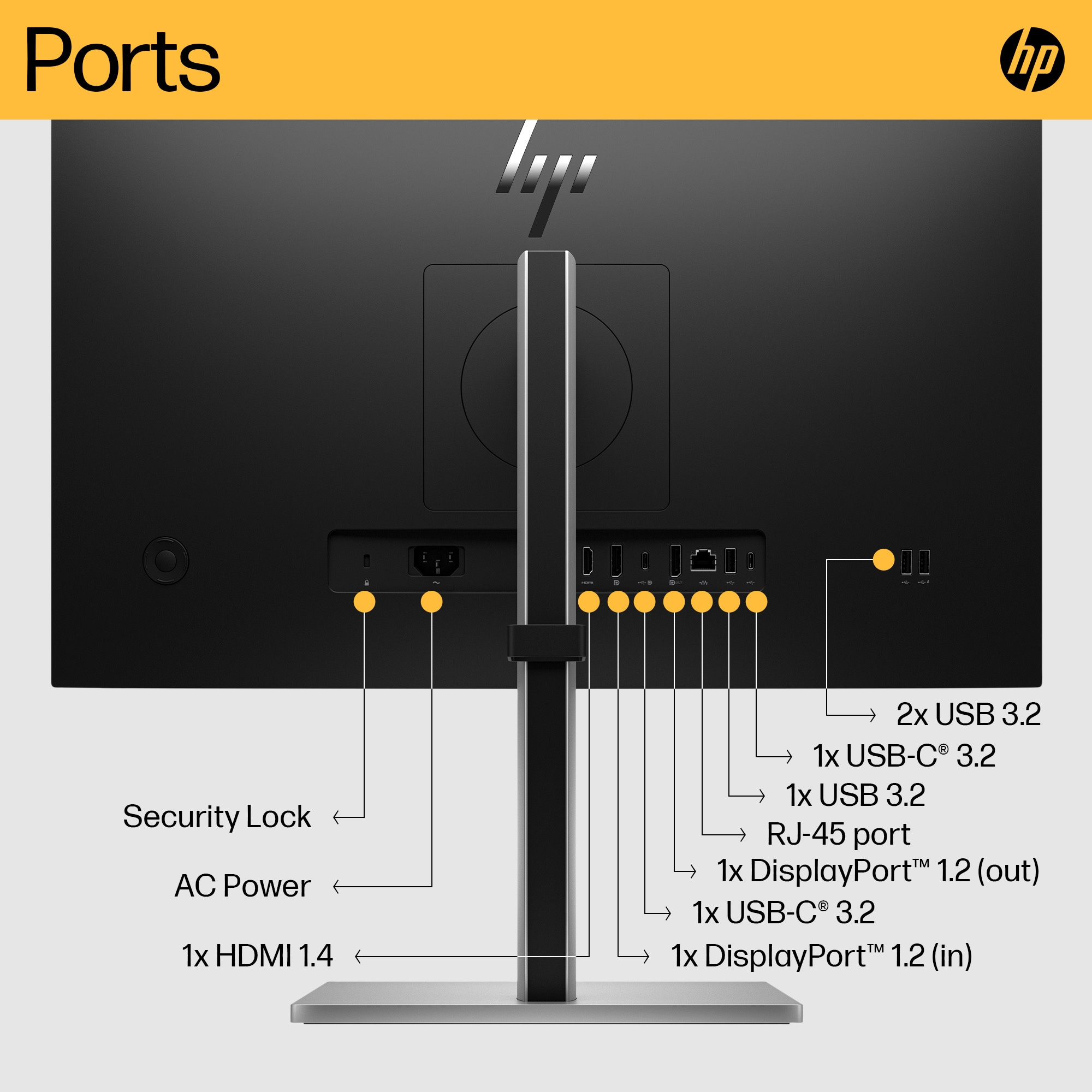

Built-in USB hub	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-C
Number of upstream ports	1
USB Type-A downstream ports quantity	3
USB Type-C downstream ports quantity	1
USB Type-C DisplayPort Alternate Mode	Yes
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	65 W
HDMI	Yes
HDMI ports quantity	1
HDMI version	1.4
DisplayPorts quantity	1
DisplayPort version	1.2
Headphone out	No
HDCP	Yes
Charging port type	USB Type-C

Specification	Value
Ethernet LAN	Yes

Specification	Value
Energy efficiency class (SDR)	E
Energy efficiency class (HDR)	E
Energy consumption (SDR) per 1000 hours	15.6 kWh
Power consumption (typical)	23.5 W
Power consumption (standby)	0.5 W
Power consumption (max)	160 W
Power consumption (off)	0.3 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power supply type	Internal
Energy efficiency scale	A to G

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	20 - 80%

Specification	Value
Stand included	Yes
Cables included	AC
Quick start guide	Yes
Bundled software	HP Display Center; HP Display Manager

Specification	Value
Sustainability certificates	ENERGY STAR, EPEAT, TCO
Sustainable technologies and materials	Low Halogen; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable; Outside box and corrugated cushions are 100% sustainably sourced and recyclable; Contains ocean-bound recycled plastic; 85% ITE-derived closed loop plastic; At least 30% recycled metal

Specification	Value
Carbon emissions, end-of-life (kg of CO2e)	2
Carbon emissions, logistics (kg of CO2e)	3
Carbon emissions, manufacturing (kg of CO2e)	202
Total carbon emissions, w/o use phase (kg of CO2e)	34
Total carbon footprint (kg of CO2e)	240

Specification	Value
Country of origin	China
Compliance certificates	CECP, CCC, CB, EAC, BIS, Federal Communications Commission (FCC), CE, BSMI
Weight	6 kg
Ethernet LAN (RJ-45) ports	1
Certification	Australian-New Zealand MEPS; BIS; BSMI; CB; CCC; CE; CECP; CEL; cTUVus; EAC; FCC; ISO 9241-307; KC/KCC; Korea MEPS (E-standby); NOM; PSB; SEPA; TUV-S; VCCI; Vietnam MEPS; WEEE; ISC; ICE; UAE; TGM; Ukraine certificates; NRCS; PSE; GS; Ukraine EE; TÜV Low Blue Light Hardware Solution certified; Works
