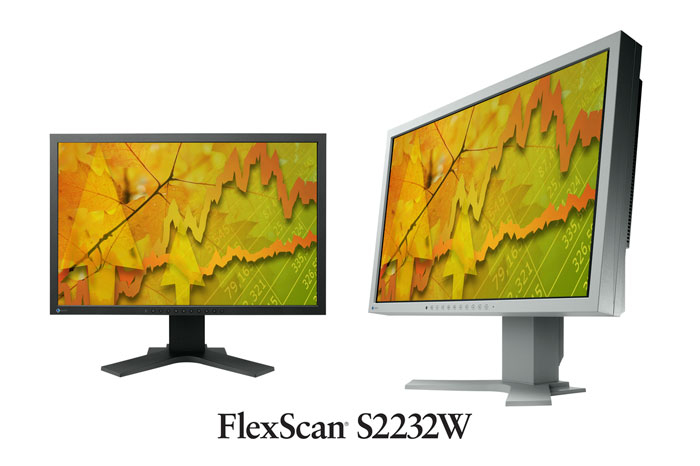

EIZO MT22 Eizo S2232WH-BK 350cd/q 1200:1 6ms PH DVI-D schwarz

MT22 Eizo S2232WH-BK 350cd/q 1200:1 6ms PH DVI-D schwarz

Model MT22 Eizo S2232WH-BK 350cd/q 1200:1 6ms PH DVI-D schwarzPart no. S2232WH-BKEAN 690592023961

43 specifications Checked today

Display55.9 cm (22")
Resolution1680 x 1050 pixels
RMS rated power0.5 W
USB hub version2.0
Adjustable height (max)8.2 cm
Power consumption (typical)32 W

See all specifications

Overview

Display: 55.9 cm (22")
Resolution: 1680 x 1050 pixels
RMS rated power: 0.5 W
USB hub version: 2.0
Adjustable height (max): 8.2 cm
Power consumption (typical): 32 W

Brand: EIZO
Category: Monitor
Model: MT22 Eizo S2232WH-BK 350cd/q 1200:1 6ms PH DVI-D schwarz
Part number: S2232WH-BK
EAN / UPC: 690592023961, 4995047030935
Also known as: EIZO MT22 S2232WH-BK 350cd/q 1200:1 6ms PH DVI-D schwarz computer monitor 55.9 cm (22") 1680 x 1050 pixels

Specifications

43 specifications in 8 groups

Display

Specification	Value
Display diagonal	55.9 cm (22")
Display resolution	1680 x 1050 pixels
Touchscreen	No
Display brightness (typical)	350 cd/m²
Response time	12 ms
Contrast ratio (typical)	1200:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.78 million colours
Pixel pitch	0.282 x 0.282 mm
Horizontal scan range	31 - 82 kHz
Vertical scan range	55 - 76 Hz
Digital horizontal frequency	31 - 65 kHz
Digital vertical frequency	59 - 61 Hz
Pixel frequency	120 MHz

Multimedia

Specification	Value
RMS rated power	0.5 W
Built-in camera	No

Ports & interfaces

Specification	Value
USB hub version	2.0
USB Type-A downstream ports quantity	2
VGA (D-Sub) ports quantity	1
DVI-D ports quantity	1
HDCP	Yes

Ergonomics

Specification	Value
Adjustable height (max)	8.2 cm
Swivel angle range	-35 - 35°
Tilt angle range	0 - 40°
Plug and Play	Yes

Power

Specification	Value
Power consumption (typical)	32 W
Power consumption (PowerSave)	1.5 W

Weight & dimensions

Specification	Value
Width (with stand)	511 mm
Depth (with stand)	208.5 mm
Height (with stand)	521 mm
Weight (with stand)	9.6 kg
Width (without stand)	511 mm
Depth (without stand)	85 mm
Height (without stand)	333 mm
Weight (without stand)	6.6 kg

Packaging content

Specification	Value
Manual	Yes

Other features

Specification	Value
TV tuner integrated	No
Display viewable area (HxV)	473.8 x 296.1 mm
Compliance industry standards	VESA DDC/CI, DDC 2B
Certification	TCO'03, TÜV/Ergonomics (including ISO 13406-2), TÜV/GS, c-Tick, CE, CB, UL (cTÜVus), CSA (cTÜVus), FCC-B, Canadian ICES-003-B, TÜV/S, VCCI-B, EPA ENERGY STAR, RoHS, WEEE, EPEAT Silver, EIZO Eco Products 2009
Weight (with stand) (imperial)	9.62 kg (21.2 lbs)
Supplied AC adapter type	LCD
