B7 BW237Qbmiprx
22.5" monitor
Model BW237QbmiprxPart no. UM.EB7EE.001EAN 4710180064933
67 specifications Checked today
- Display57.1 cm (22.5")

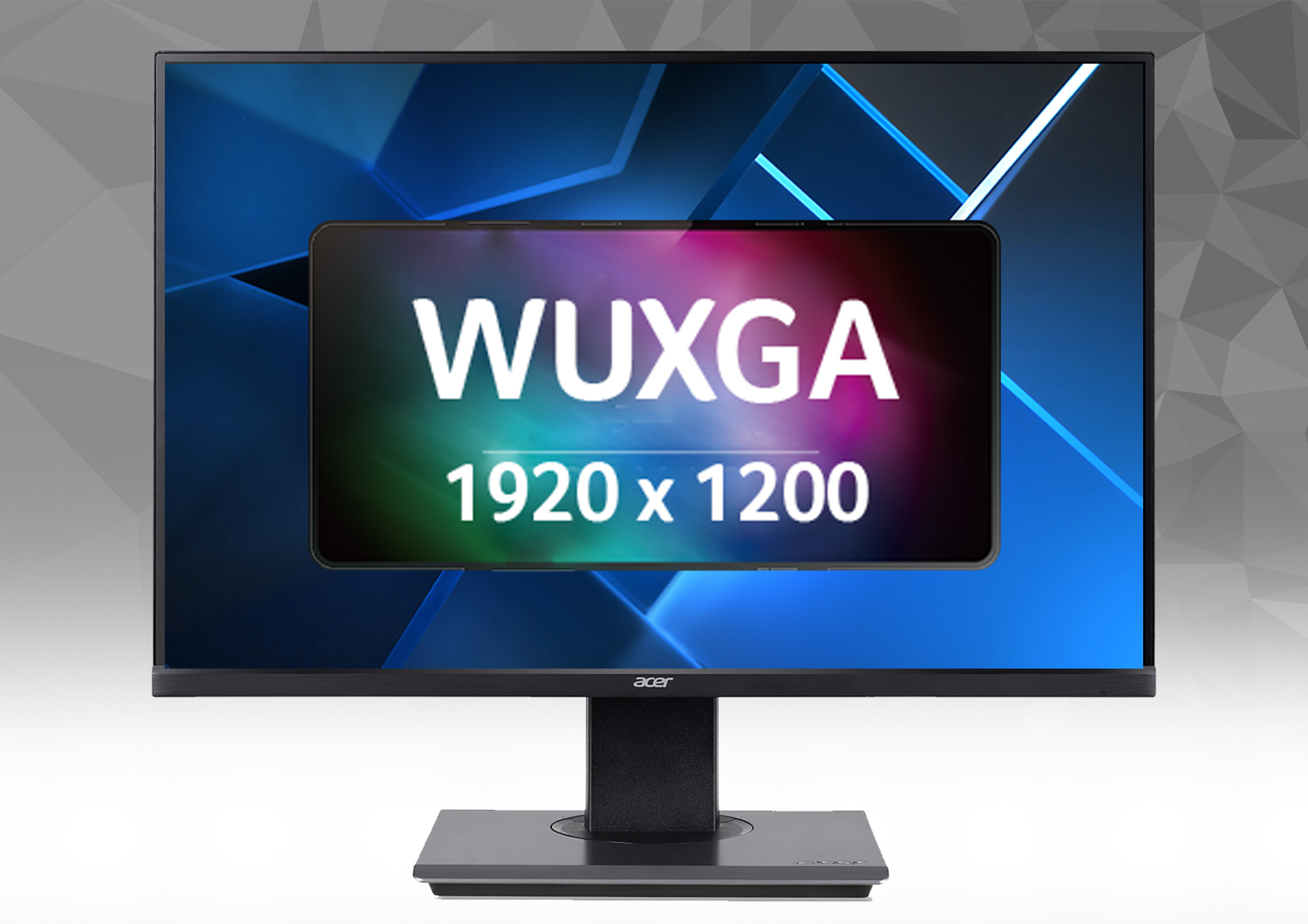

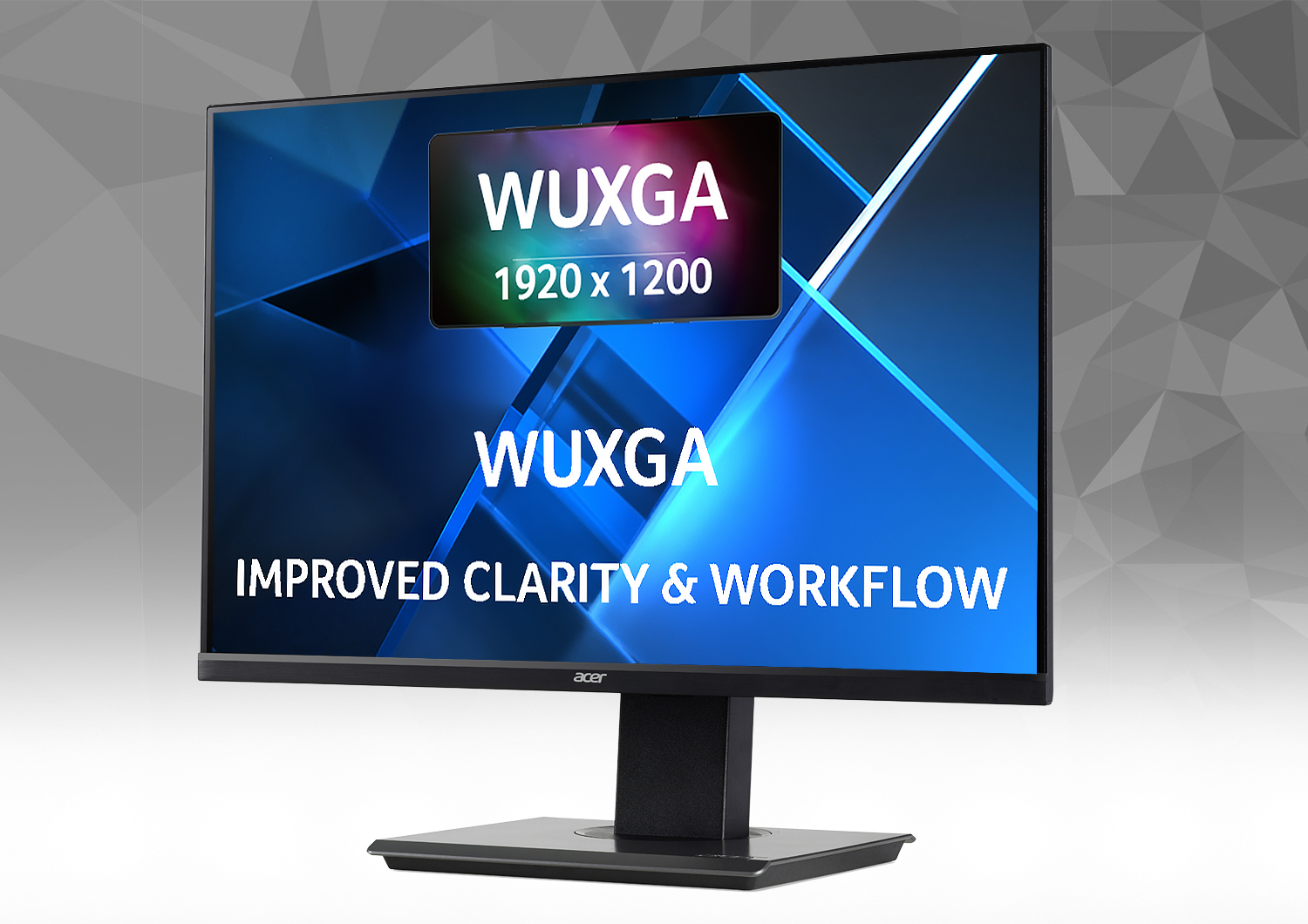

- Resolution1920 x 1200 pixels
- Energy classE
- ColourBlack
- Built-in speaker(s)Yes
- Market positioningBusiness
Overview
- Display
- 57.1 cm (22.5")
- Resolution
- 1920 x 1200 pixels
- Energy class
- E
- Colour
- Black
- Built-in speaker(s)
- Yes
- Market positioning
- Business
- Brand
- Acer
- Category
- Monitor
- Model
- BW237Qbmiprx
- Part number
- UM.EB7EE.001
- EAN / UPC
- 4710180064933
- Also known as
- Acer B7 BW237Qbmiprx - 22.5" monitor
Specifications
67 specifications in 11 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 57.1 cm (22.5") |
| Display resolution | 1920 x 1200 pixels |
| Native aspect ratio | 16:10 |
| Display technology | LED |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| Display brightness (typical) | 250 cd/m² |
| Response time | 4 ms |
| Screen shape | Flat |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Aspect ratio | 16:10 |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 100000000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.252 x 0.252 mm |
| Pixel density | 100.6 ppi |
| Viewable size, horizontal | 48.4 cm |
| Viewable size, vertical | 30.2 cm |
| Digital horizontal frequency | 30 - 95 kHz |
| Digital vertical frequency | 48 - 75 Hz |
| NTSC coverage (typical) | 72% |
| 3D | No |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 4 W |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Market positioning | Business |
| Product colour | Black |

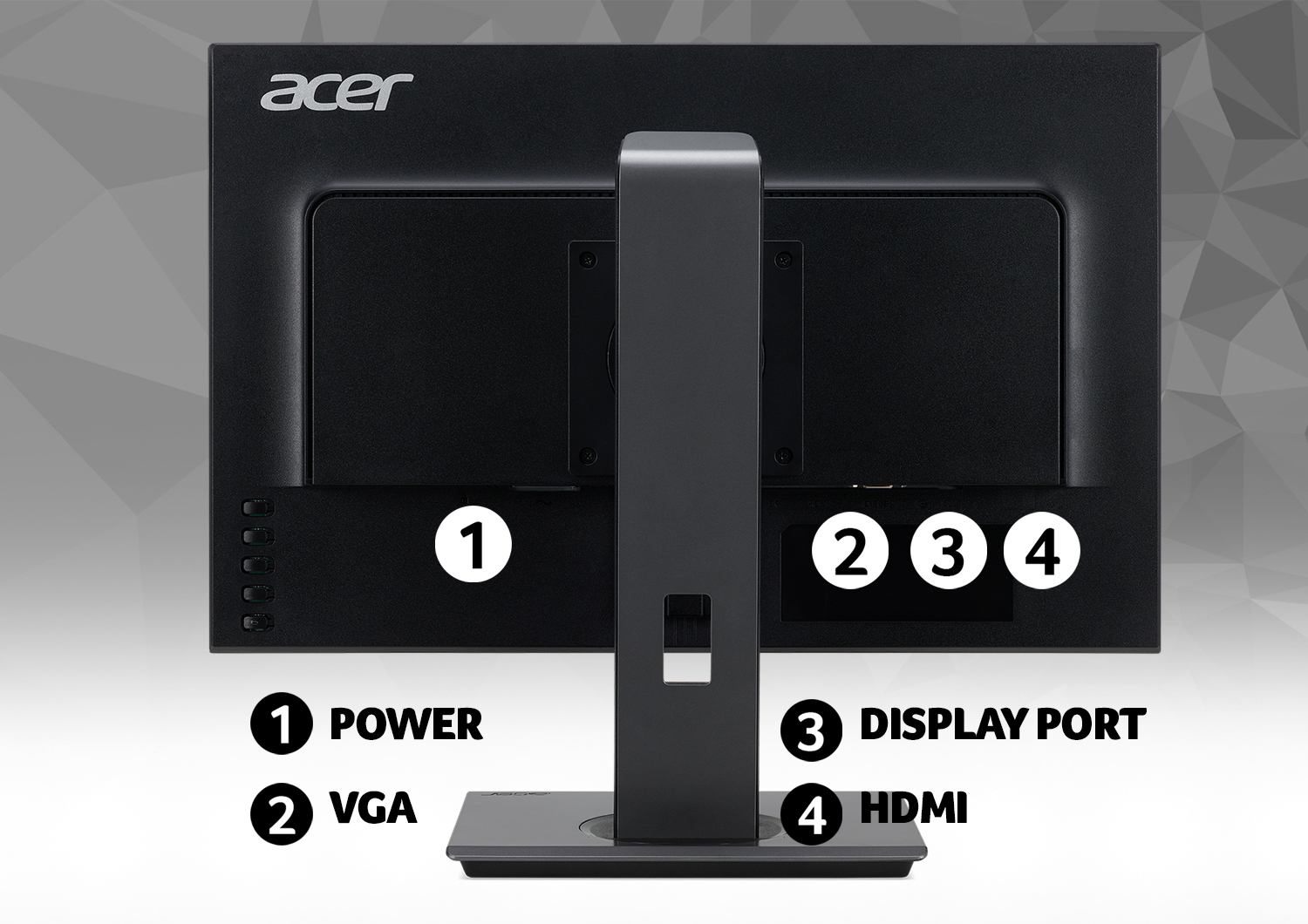

Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | No |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 1 |
| Audio input | Yes |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |

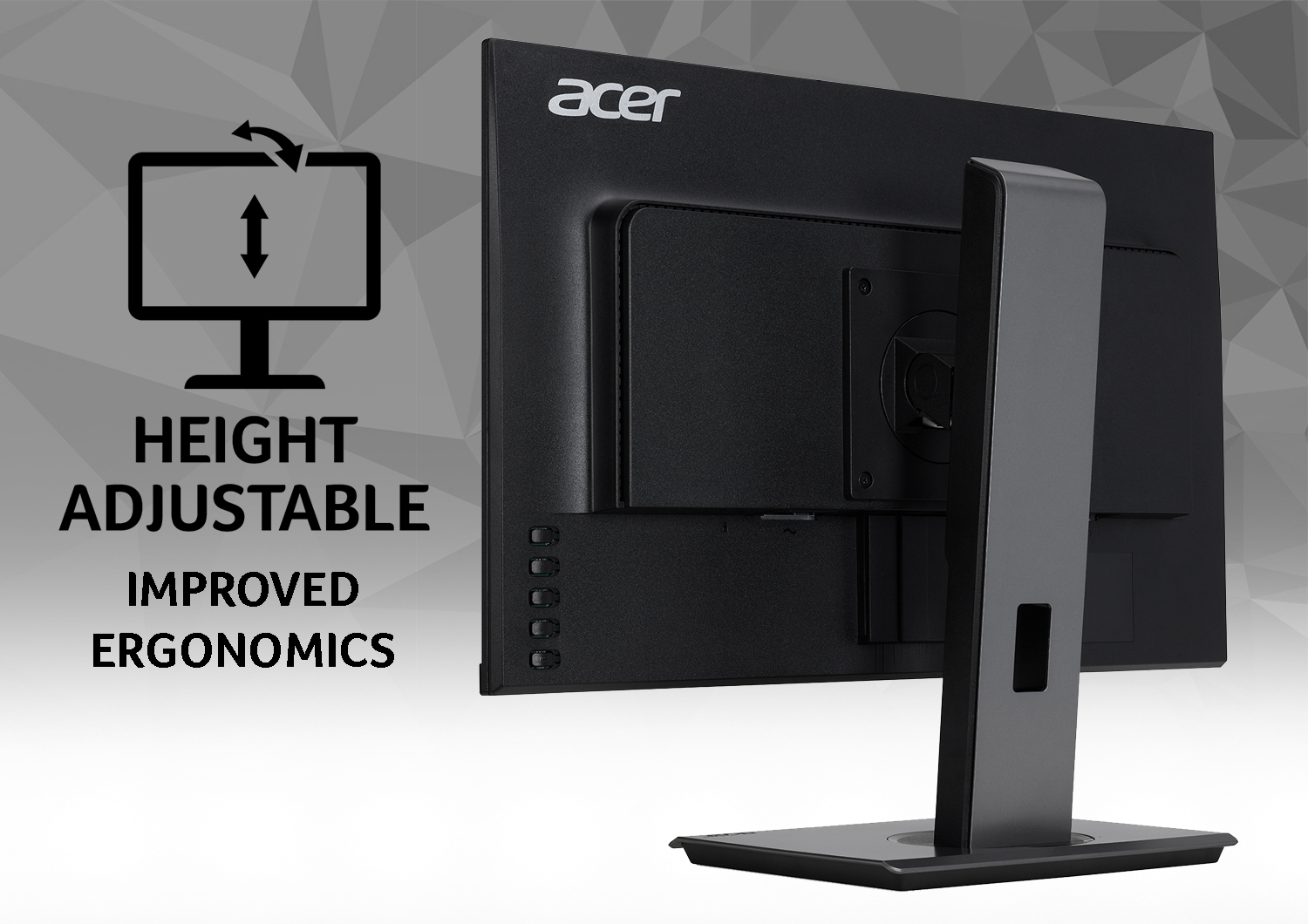

| Height adjustment | Yes |
| Adjustable height (max) | 12 cm |
| Pivot | Yes |
| Pivot angle | 0 - 90° |
| Swivelling | Yes |
| Swivel angle range | -45 - 45° |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 25° |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 16 kWh |
| Power consumption (typical) | 16.5 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.39 W |
| Energy efficiency scale | A to G |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth (with stand) | 193 mm |
| Height (with stand) | 509.1 mm |
| Width (without stand) | 499 mm |
| Weight (without stand) | 4.74 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 6.66 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, DisplayPort, VGA |
| Quick start guide | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| On/off switch | Yes |
| TV tuner integrated | No |
| Mean time between failures (MTBF) | 30000 h |
| Certification | TCO 7.0 |
