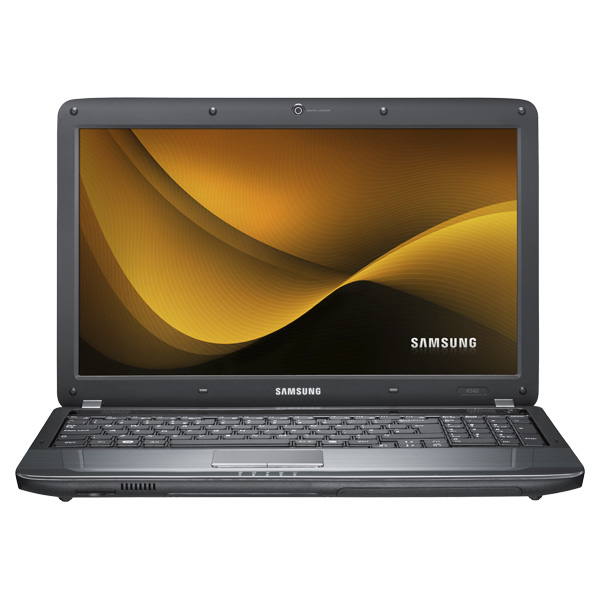

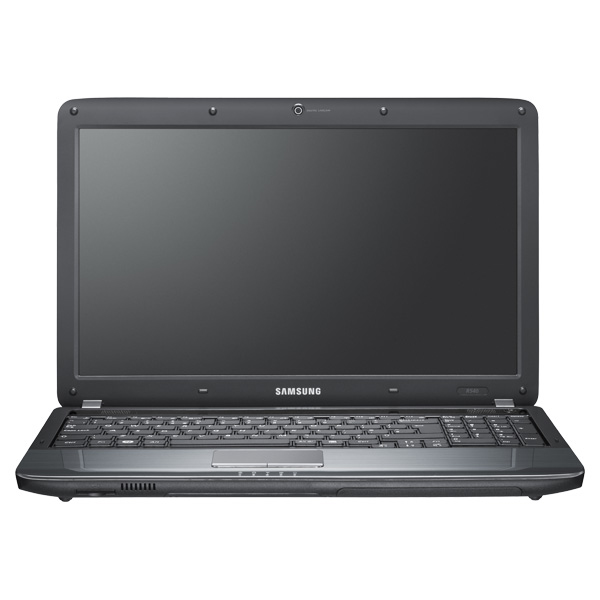

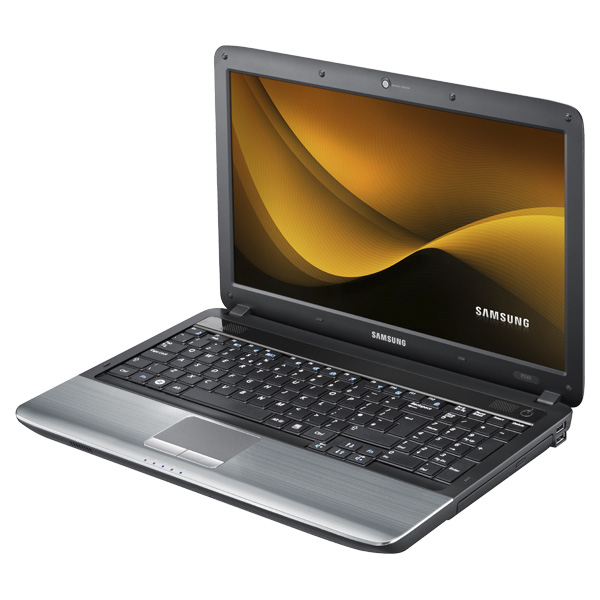

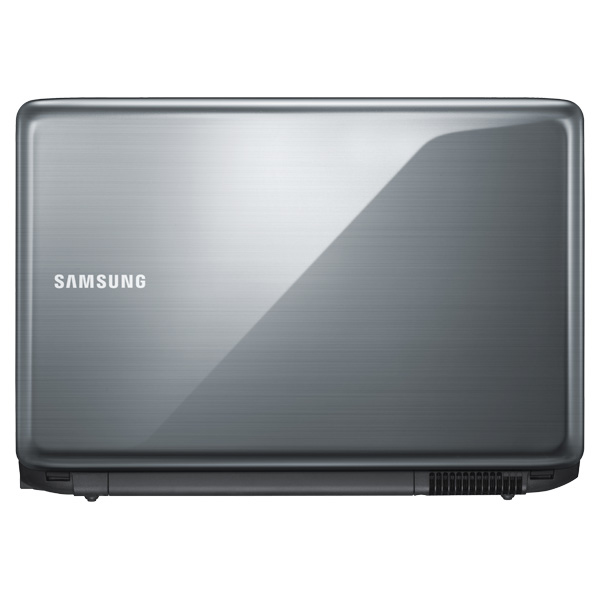

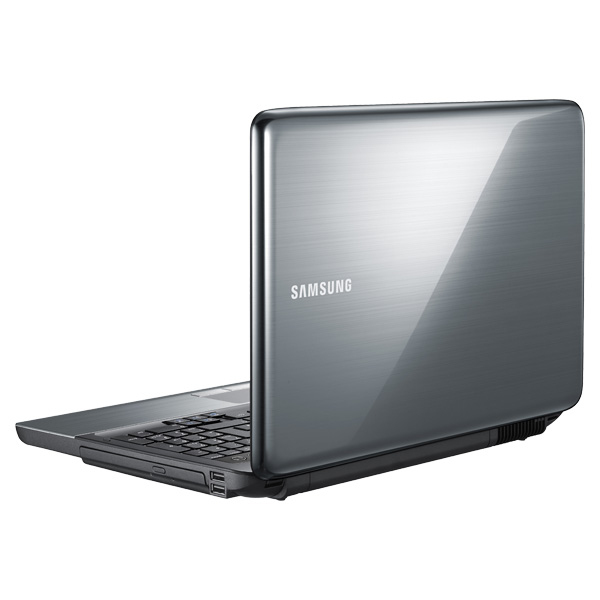

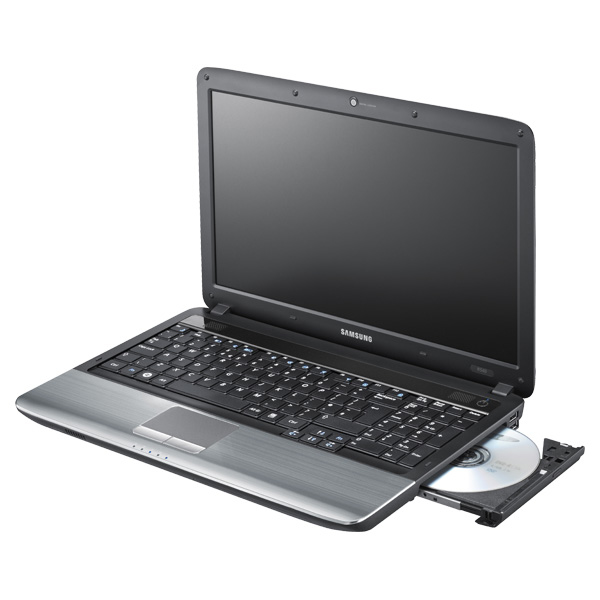

R R540-JA05 Intel® Pentium® P6200

39.6 cm (15.6") 4 GB DDR3-SDRAM 500 GB Intel® HD Graphics Windows 7 Home Premium Silver

Model R540-JA05Part no. NP-R540-JA05US

126 specifications Checked today

Overview

Brand: Samsung
Category: Laptop
Model: R540-JA05
Part number: NP-R540-JA05US
Also known as: Samsung R R540-JA05 Intel® Pentium® P6200 39.6 cm (15.6") 4 GB DDR3-SDRAM 500 GB Intel® HD Graphics Windows 7 Home Premium Silver

126 specifications in 19 groups

Specification	Value
Product colour	Silver

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium®
Processor model	P6200
Processor cores	2
Processor threads	2
Processor frequency	2.13 GHz
System bus rate	2.5 GT/s
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	PGA988
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Pentium P6000 Series for Mobile
Processor codename	Arrandale
Bus type	DMI
FSB Parity	No
Thermal Design Power (TDP)	35 W
Tjunction	90 °C
Maximum number of PCI Express lanes	1
PCI Express configurations	1x16
PCI Express slots version	2.0
Number of Processing Die Transistors	382 M
Processing Die size	81 mm²
CPU multiplier (bus/core ratio)	16
ECC supported by processor	No

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	Intel® HD Graphics
Graphics card family	Intel
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
On-board graphics card base frequency	500 MHz
On-board graphics card dynamic frequency (max)	667 MHz

Specification	Value
Front camera resolution (numeric)	0.3 MP

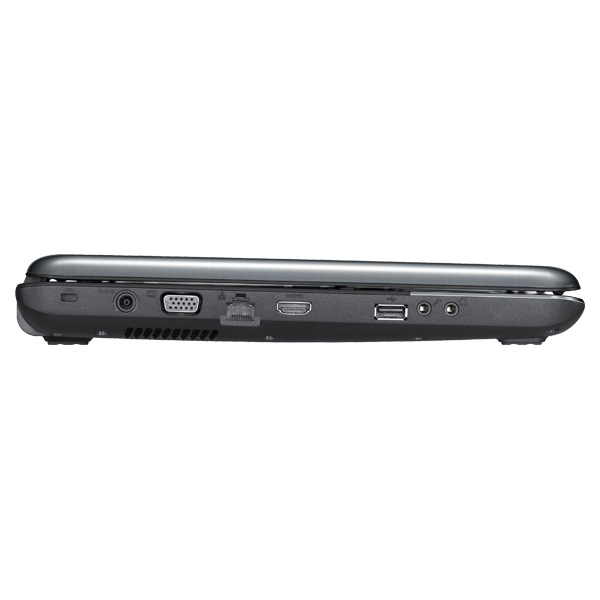

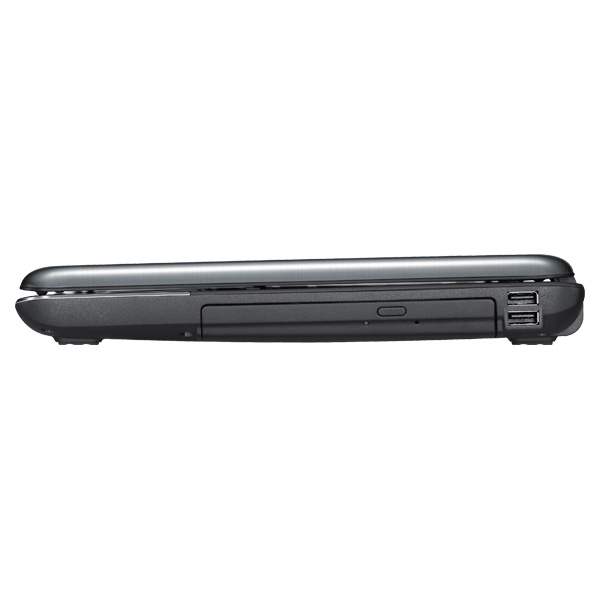

Specification	Value
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
eSATA/USB 2.0 ports quantity	0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
TV-out	No

Specification	Value

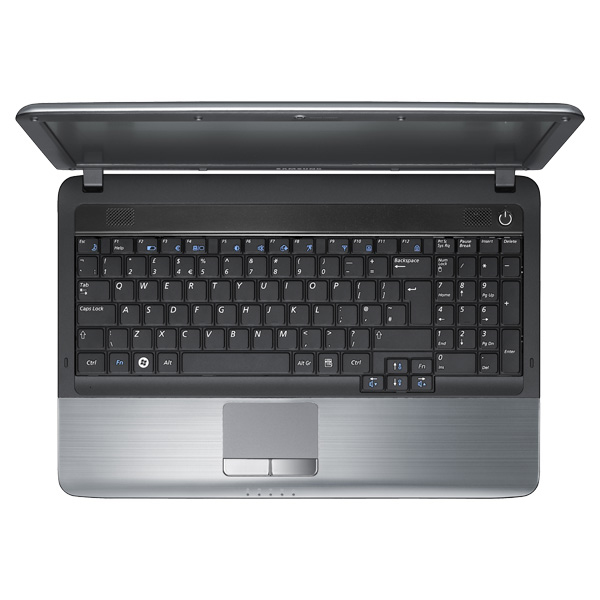

Pointing device	Touchpad
Keyboard number of keys	103

Specification	Value
Operating system installed	Windows 7 Home Premium

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	45 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	No
Physical Address Extension (PAE)	36 bit
Physical Address Extension (PAE)	Yes
Processor ARK ID	50176
Processor package size	37.5x37.5 mm
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No
