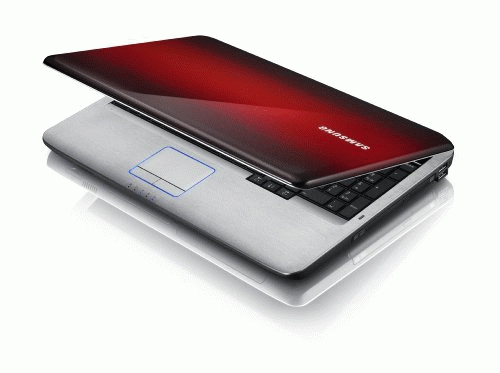

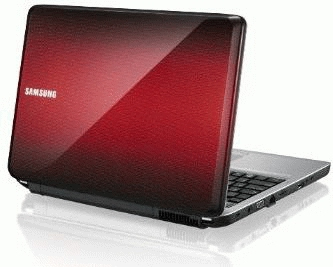

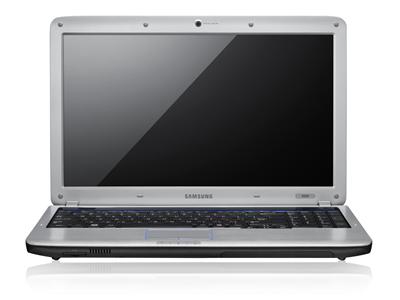

R R530-JA09 Intel® Pentium® Dual-Core T4500
39.6 cm (15.6") 3 GB DDR3-SDRAM 320 GB Intel® GMA 4500M Windows 7 Home Premium Red, Silver
Model R530-JA09Part no. NP-R530-JA09NLEAN 8808993964765
91 specifications Checked yesterday
- Display39.6 cm (15.6")
- Resolution1366 x 768 pixels
- ProcessorIntel® Pentium® Dual-Core
- Memory3 GB
- Storage320 GB
- GraphicsIntel® GMA 4500M
Overview
- Display
- 39.6 cm (15.6")
- Resolution
- 1366 x 768 pixels
- Processor
- Intel® Pentium® Dual-Core
- Memory
- 3 GB
- Storage
- 320 GB
- Graphics
- Intel® GMA 4500M
- Brand
- Samsung
- Category
- Laptop
- Model
- R530-JA09
- Part numbers
- NP-R530-JA09NL, NP-R530-JA09IT
- EAN / UPC
- 8808993964765, 8808993953585
- Also known as
- Samsung R R530-JA09 Intel® Pentium® Dual-Core T4500 39.6 cm (15.6") 3 GB DDR3-SDRAM 320 GB Intel® GMA 4500M Windows 7 Home Premium Red, Silver
Specifications
91 specifications in 21 groups
Design
| Specification | Value |
|---|---|
| Product colour | Red, Silver |
Display
| Specification | Value |
|---|---|
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1366 x 768 pixels |
| Native aspect ratio | 16:9 |
| Display surface | Gloss |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Pentium® Dual-Core |
| Processor model | T4500 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 2.3 GHz |
| Processor cache | 1 MB |
| Processor cache type | Smart Cache |
| Processor front side bus | 800 MHz |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor codename | Penryn |
| Thermal Design Power (TDP) | 35 W |
| Number of Processing Die Transistors | 410 M |
| Processing Die size | 107 mm² |
Memory
| Specification | Value |
|---|---|
| Internal memory | 3 GB |
| Internal memory type | DDR3-SDRAM |
| Memory layout (slots x size) | 1 x 1 + 1 x 2 GB |
| Memory slots | 2x SO-DIMM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 320 GB |
| HDD interface | SATA |
| HDD speed | 5400 RPM |
| Optical drive type | DVD Super Multi DL |
| Card reader integrated | Yes |
| Compatible memory cards | MMC, SD, SDHC |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | Intel® GMA 4500M |
Audio
| Specification | Value |
|---|---|
| Audio system | HD SRS 3D |
| Number of built-in speakers | 2 |
| Speaker power | 1.5 W |
Optical drive
| Specification | Value |
|---|---|
| Optical drive interface | SATA |
Network
| Specification | Value |
|---|---|
| Networking features | Fast Ethernet, WLAN |
| Wireless technology | Wi-Fi |
| Bluetooth | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| Headphone outputs | 1 |
| S/PDIF out port | No |
| Microphone in | Yes |
| Docking connector | No |
| ExpressCard slot | No |
| CardBus PCMCIA slots quantity | 0 |
| CardBus PCMCIA slot type | No |
| SmartCard slot | No |
| Modem (RJ-11) ports | 0 |
| TV-in port | No |
| TV-out | No |
| PS/2 ports quantity | 0 |
| Parallel ports quantity | 0 |
| Serial ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® GL40 Express |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
| Numeric keypad | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Home Premium |
| Trial software | McAfee - Virus Scan |
| Bundled software | Adobe Acrobat Reader Easy Battery Manager Easy Display Manger Easy Network Manager Easy SpeedUp Manager Samsung Support Center Samsung Update Plus |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Intel 64 | Yes |
| Intel Trusted Execution Technology | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel® Turbo Boost Technology | No |
| Processor ARK ID | 42925 |
| Processor code | SLGZC |
| Thermal Monitoring Technologies | Yes |
Battery
| Specification | Value |
|---|---|
| Number of battery cells | 6 |
| Battery capacity | 4000 mAh |
Power
| Specification | Value |
|---|---|
| AC adapter power | 60 W |
| DC-in jack | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | RoHS |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.5 kg |
| Width | 379.8 mm |
| Depth | 255.5 mm |
| Height (front) | 2.99 cm |
| Height (rear) | 3.62 cm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Other features
| Specification | Value |
|---|---|
| Infrared data port | No |
| Compliance industry standards | IEEE 802.11 bg/n |
| Internal modem | No |
| Supplied AC adapter type | AC |
