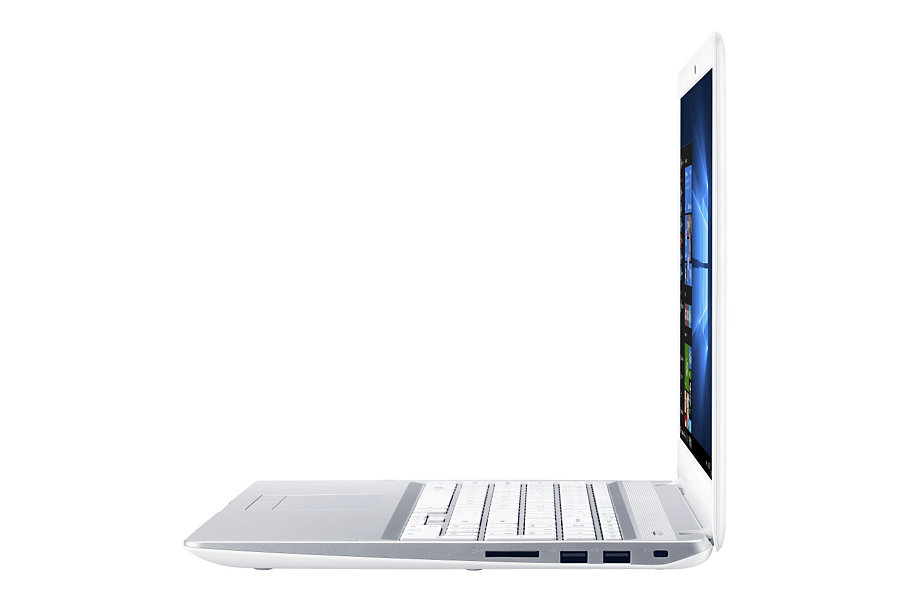

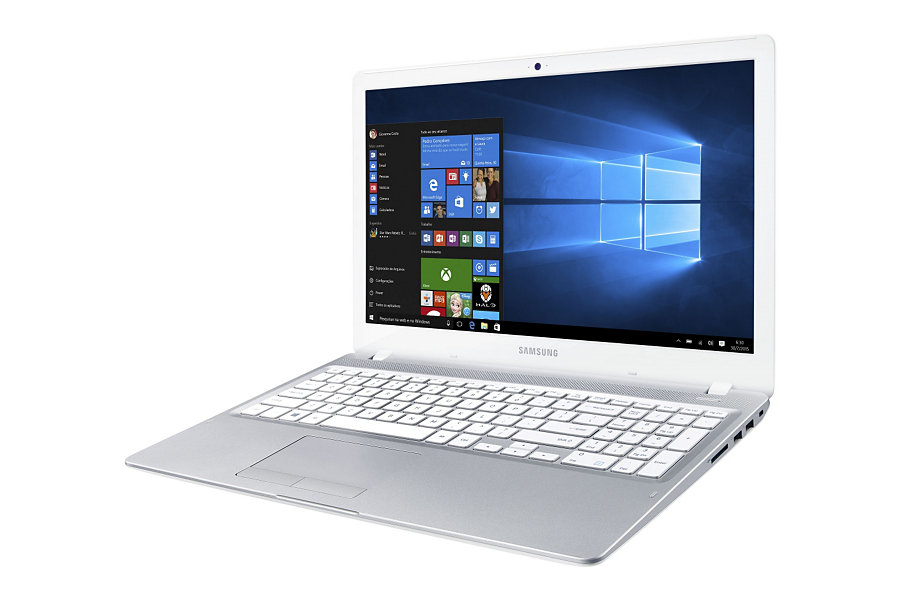

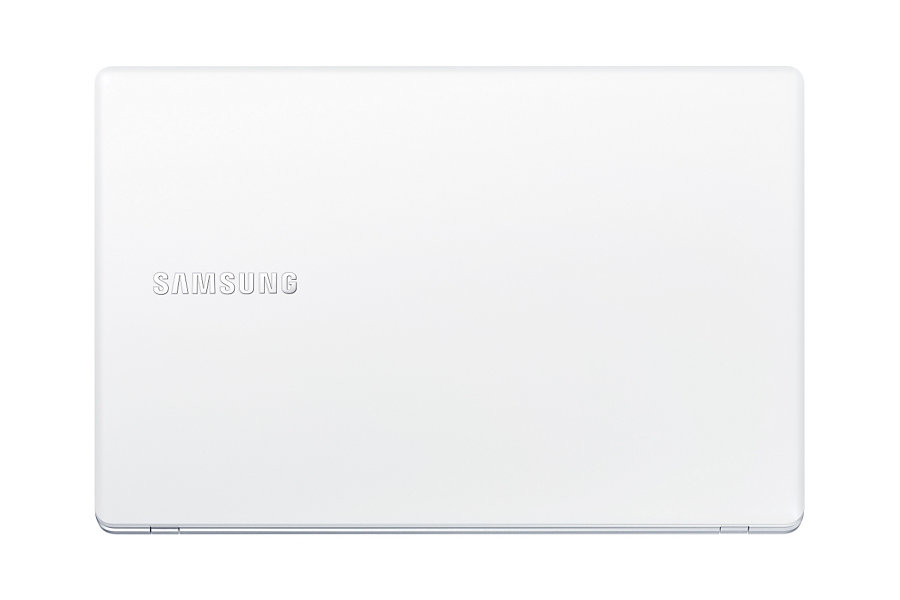

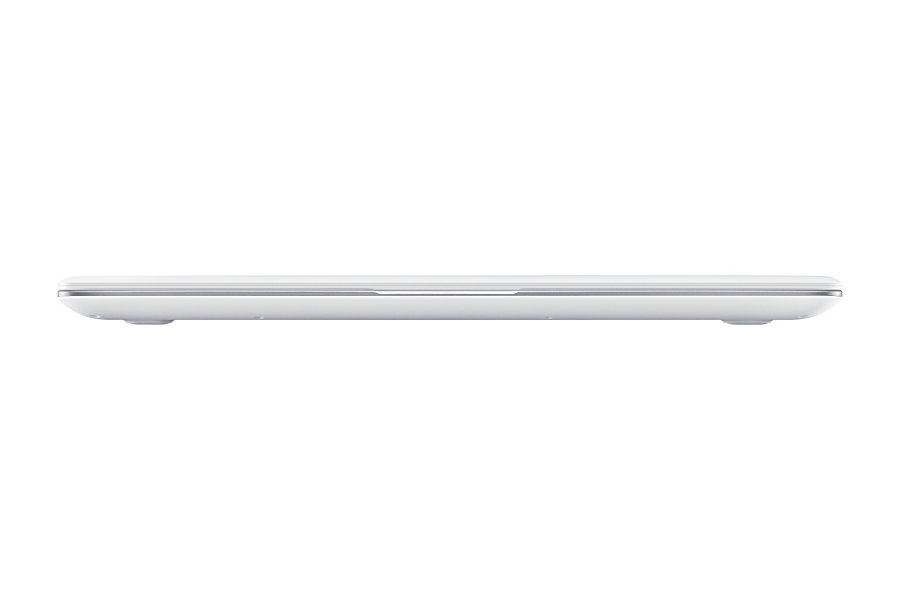

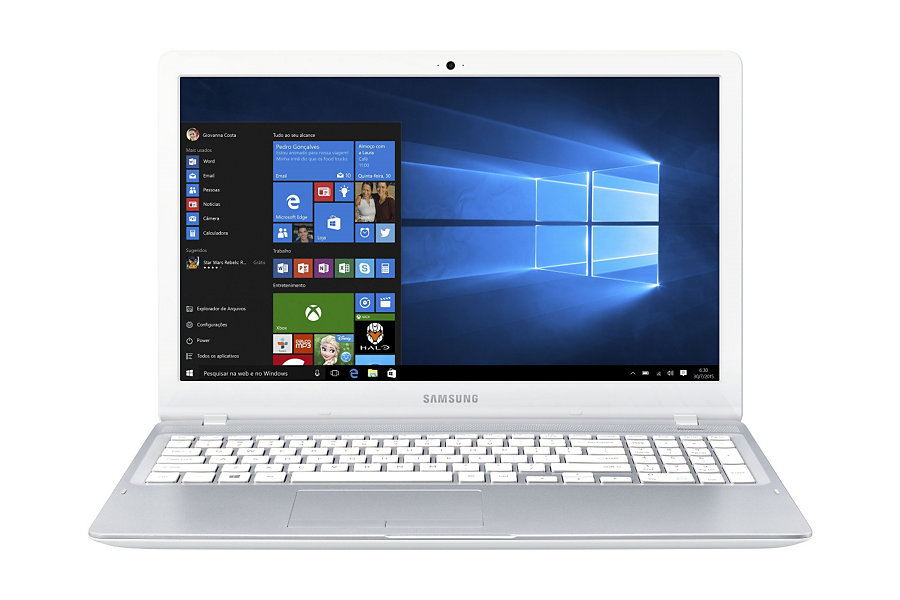

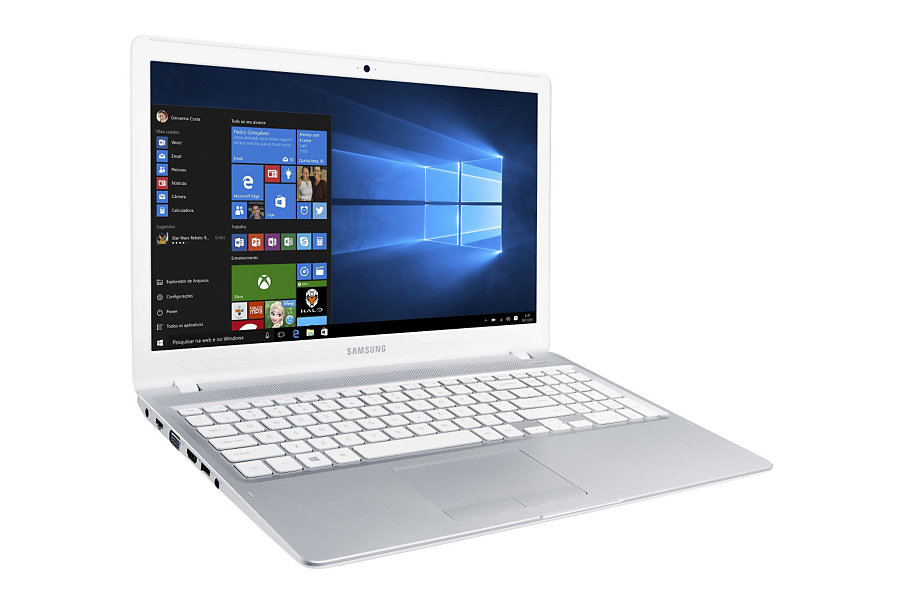

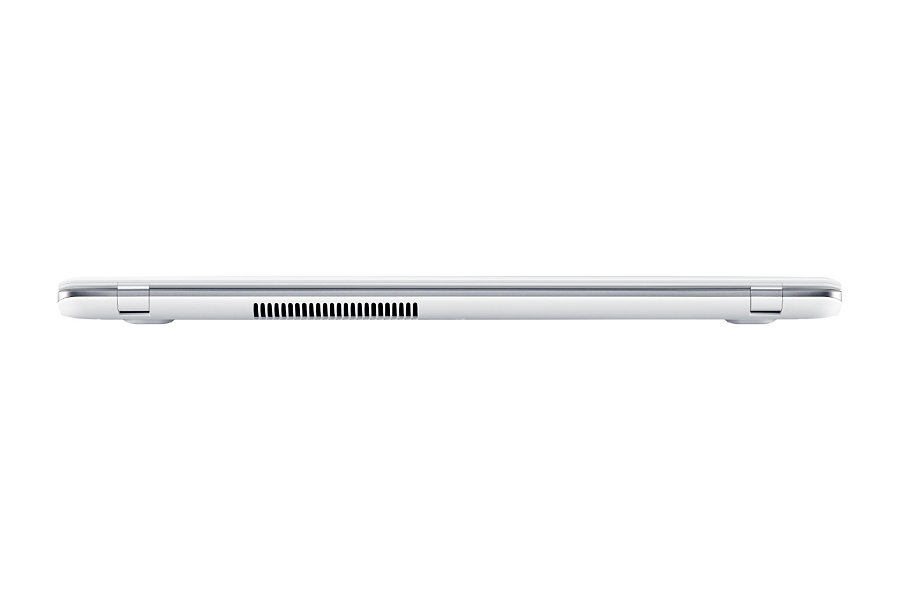

NP500R5L-YD1BR laptop Intel® Core™ i5 i5-6200U

39.6 cm (15.6") Full HD 8 GB LPDDR3-SDRAM 1 TB HDD NVIDIA® GeForce® 940MX Windows 10 Home Silver, White

Model NP500R5L-YD1BR

137 specifications Checked today

Display39.6 cm (15.6")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i5
Memory8 GB
Storage1 TB
GraphicsNVIDIA® GeForce® 940MX

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i5
Memory: 8 GB
Storage: 1 TB
Graphics: NVIDIA® GeForce® 940MX

Brand: Samsung
Category: Laptop
Model: NP500R5L-YD1BR
Part number: NP500R5L-YD1BR
Also known as: Samsung NP500R5L-YD1BR laptop Intel® Core™ i5 i5-6200U 39.6 cm (15.6") Full HD 8 GB LPDDR3-SDRAM 1 TB HDD NVIDIA® GeForce® 940MX Windows 10 Home Silver, White

Specifications

137 specifications in 18 groups

Design

Specification	Value
Product type	Laptop
Product colour	Silver, White
Form factor	Clamshell

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	6th gen Intel® Core™ i5
Processor model	i5-6200U
Processor cores	2
Processor threads	4
Processor boost frequency	2.8 GHz
Processor frequency	2.3 GHz
System bus rate	4 GT/s
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	LGA 1356 (Socket B2)
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-6200 series
Processor codename	Skylake
Bus type	QPI
Stepping	D1
Thermal Design Power (TDP)	15 W
Configurable TDP-up frequency	2.4 GHz
Configurable TDP-up	25 W
Configurable TDP-down	7.5 W
Configurable TDP-down frequency	0.8 GHz
Tjunction	100 °C
Maximum number of PCI Express lanes	12
PCI Express configurations	1x4, 4x1
PCI Express slots version	3.0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	LPDDR3-SDRAM
Memory clock speed	1866 MHz

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	HDD
Number of HDDs installed	1
HDD capacity	1 TB
HDD speed	5400 RPM
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® 940MX
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 520
Maximum on-board graphics card memory	1.74 GB
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	1000 MHz
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.4
On-board graphics card ID	1916

Audio

Specification	Value
Number of built-in speakers	2
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	4.1

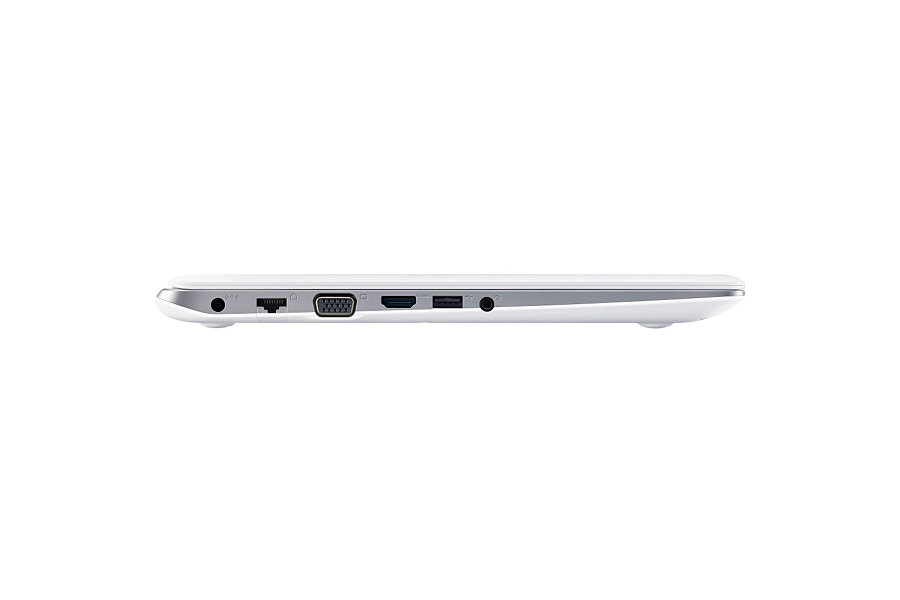

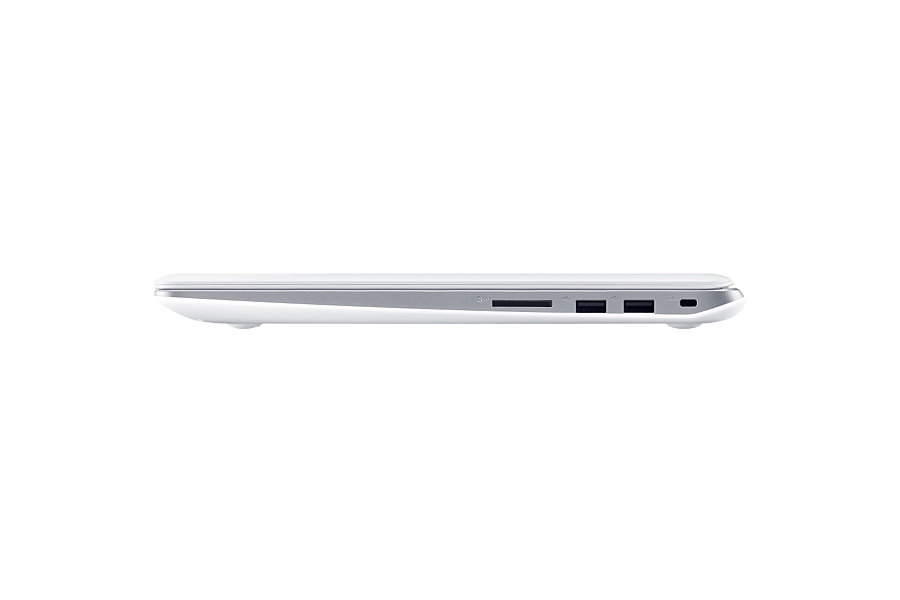

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Thunderbolt ports quantity	0
Combo headphone/mic port	Yes
Docking connector	No

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	Yes

Software

Specification	Value
Operating system installed	Windows 10 Home

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Smart Response Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Smart Cache	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	88193
Processor code	SR2EY
Processor package size	42 X 24 mm
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes
